Installation Steps; Figure A - Dynojet Power Commander FC Installation Instructions

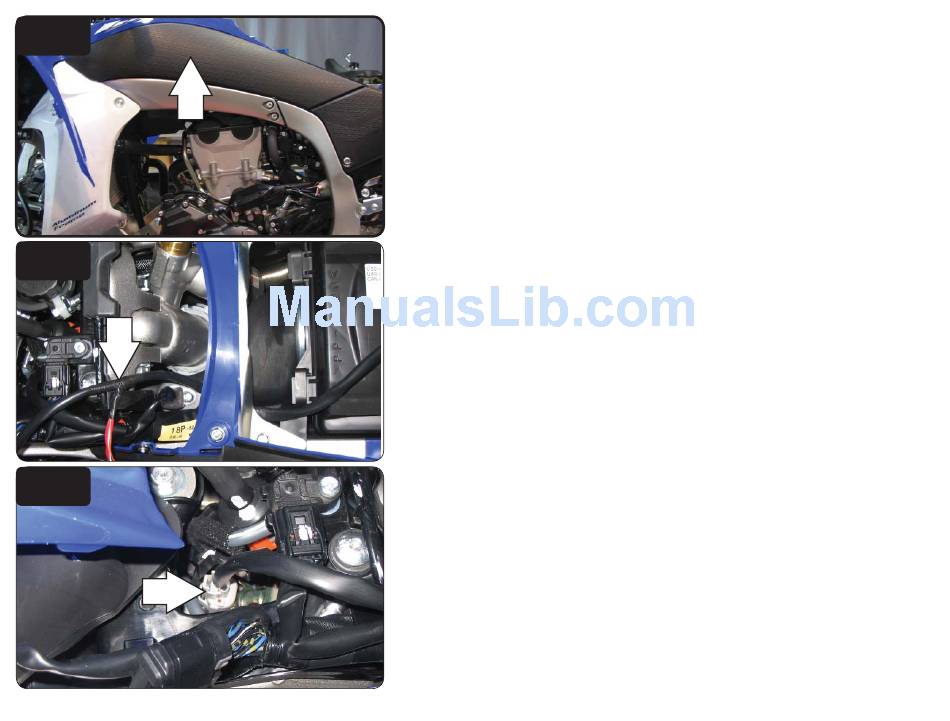

FIG.A
FIG.B
FIG.C
IFC22007.01 www.powercommander.com
1 Remove the seat.
2 Remove the side covers as shown in Figure A.
3 Remove the fuel tank.
4 Temporarily lay the PCFC in the tail of the quad.
5 Route the PCFC harness from the rear of the quad to the throttle body going
along the left hand side of the frame.
6 Route the harness underneath the frame crossover as show in Figure B.
7 Unplug the stock wiring harness from the injector as shown in Figure C.
2009-2014 Yamaha YFZ450 R/X - 3
