HOW TO ACCESS THE CAMERA'S OSD MENUS*

The camera has four separate sensors, each with its own OSD menu and settings. When

adjusting the camera's settings, each lens/ sensor will have their own set of values and

settings and will be set separately.

To access each sensor's OSD menus select one of the following options:

1. The camera has four (4) BNC outputs, each supporting UTC (Up the Coax)

communication. When the camera is connected to a DVR supporting UTC communication

like the VMAX A1

All-in-One DVR, you can access the camera's OSD menu directly from

the DVR.

2. The camera supports RS485 communication, allowing to control the camera remotely.

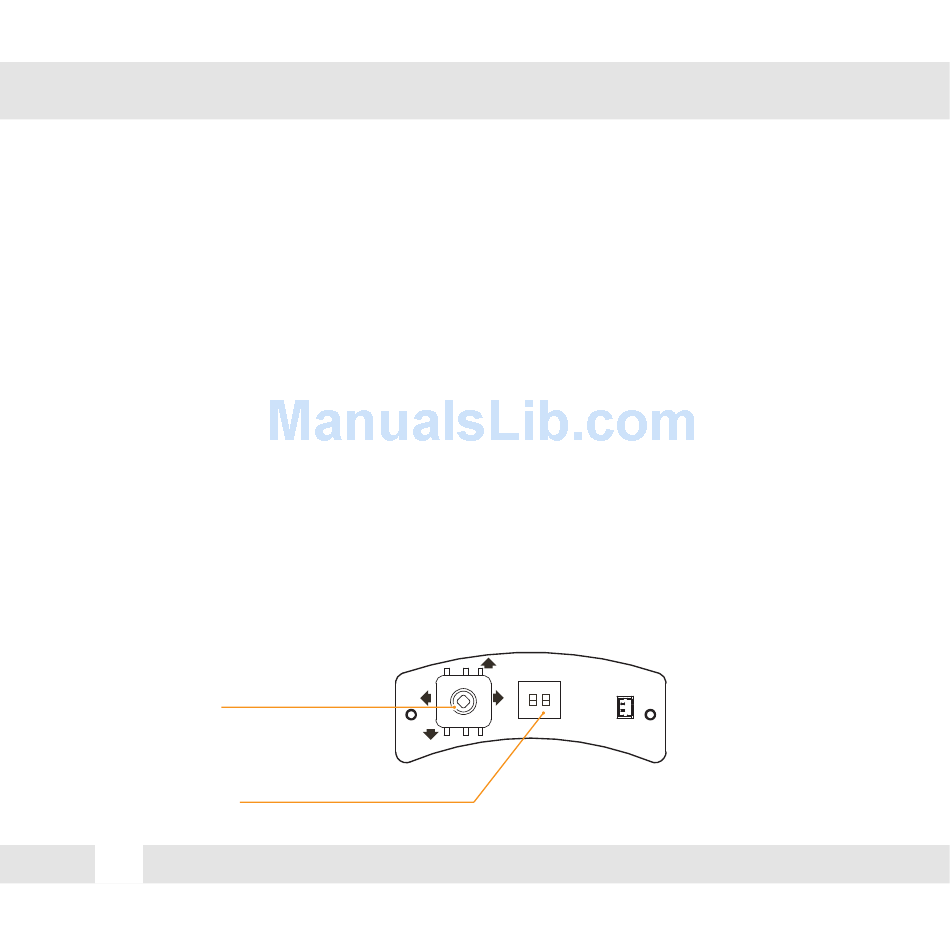

3. In the camera's external control board, there is a switch next to the joystick controller. The

switch determines which of the four (4) sensors will be displayed in the secondary BNC

output. Once the switches are set to a specific sensor, press the joystick controller to view

the sensor's OSD menu. The sensor's display will appear at the top left corner of the display

for 60 sec.

Refer to the images in the next page for more information on the switch settings for each

sensor selection.

OSD Joystick

BNC Local Output Switch
