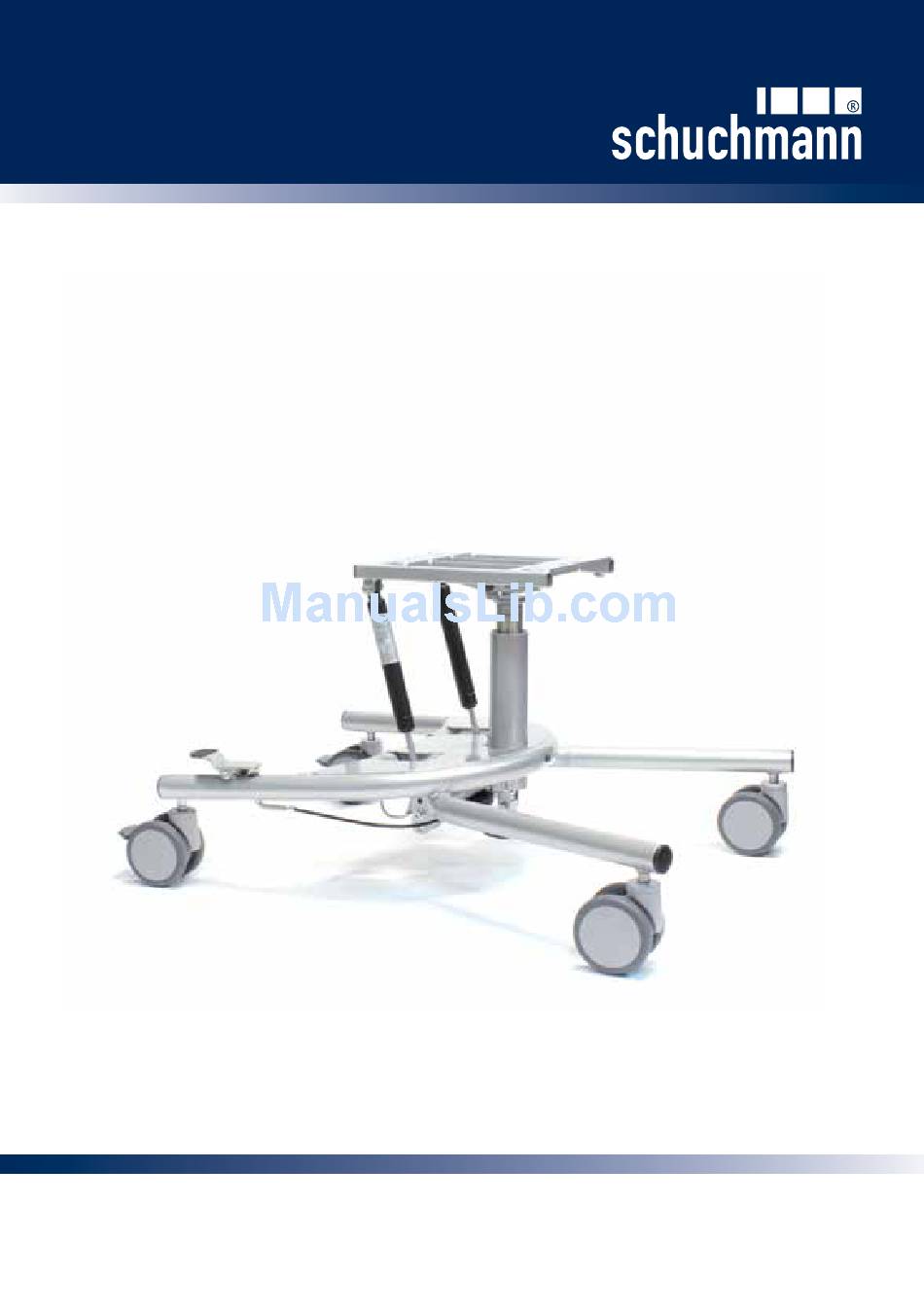

- Page 1 FRIDOLIN Maxi the functional subframe for indoor use Instructions for use...
- Page 2 Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your Schuchmann Team...
- Page 3 Contents Page 1. Preparation of the subframe for use 1.1 Transport....................2 1.2 Safety measures prior to use..............2 1.3 Safe disposal of the packaging material............ 2 1.4 Location of the instructions................ 2 2. Product description 2.1 Material information................... 3 2.2 Areas of application, use according to the intended purpose....
-
Page 4: Transport
Do not leave packaging materials unattended, as they are a possible source of danger. 1.4 Location of the instructions Ensure that these Instructions for use remain with the product. Additional copies are available at www.schuchmann-reha.com. -
Page 5: Product Description 2.1 Material Information
FRIDOLIN Maxi (for indoor use) has been designed as a subframe on which to hold seat pan systems and seat pans. Fridolin Maxi can be used for children and teenagers. The max. load should not exceed 100 kg including the seat pan. -
Page 6: Equipment For Basic Model
2.4 Equipment for basic model • The seat height is adjustable using a crank, and the angular adjustment of the seat unit can be operated through two gas pressure springs à 200N via a foot pedal. • Inc. 4 dual castors (100 mm), 2 of these with locking devices •... -
Page 7: Seat Height
3. Settings 3.1 Seat height The subframe can be adjusted by up to 12 cm in height; the product is supplied adjusted to the lowest setting. Adjustment is carried out by actuating the crank (A) below the base frame. In addition, both gas pressure springs on the seat angle adjustment must be readjusted in height. -
Page 8: Maxi Push Handle
4.2 Foot bench There are different foot bench variants available for the FRIDOLIN Maxi, which are fixed to the po- sitioner head. After the respective foot bench has been plugged into the positioner head (G) and after the depth has been adjusted, the knee angle can be deter- mined with the aid of the two clamping levers (H). -
Page 9: Plug-In Footrest
4.3 Plug-in footrest The simple plug-in footrest permits easy transfer within facilities. To mount the footrest, first plug the rear positio- ner (l) into the base frame and fold it downwards. Ensure that the snap locks (J) engage correctly. In order to remove the footrest, pull out the two snap locks (J) and lift up the footrest. -
Page 10: Technical Data
6. Technical data Dimensions - Basic model Height of seat pan positioner 42 - 54 cm Seat angle (-) 5° - 30° Total length 87 cm Total width 66 cm Strength of the gas pressure spring for angular adjustment 2 x 200 N Max. -
Page 11: Identification 8.1 Ec Declaration Of Conformity
Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classi- fied as product class 1 "FRIDOLIN Maxi" - Seat pan subframe Art. No.: 22 03 000 The relevant regulations of the regulations and guidelines listed below ac- cord with: •... -
Page 12: Product Version
Max. load Max. load Serial number Production date www.schuchmann-reha.de · info@schuchmann-reha.de · Fon +49 (0) 5405 / 909 - 0 8.3 Product version The subframe FRIDOLIN Maxi is available in one size. 8.4 Issue of the document Instructions for use FRIDOLIN Maxi - Change status B; Issue 08.2014 8.5 Name and address of the manufacturer, specialist dealer...
