Summary of Contents for Schuchmann franka
- Page 1 Instructions for use. franka. The universal sub-frame.
- Page 3 Please note that gui- delines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product.. Your schuchmann-Team...
-
Page 5: Table Of Contents
Contents. 1. Preparation..................06 1.1 Delivery ........................06 1.2 Safety measures prior to use ................06 1.3 Safe disposal ......................06 1.3.1 Packaging ....................06 1.3.2 Product ....................06 1.4 Where to store the Instructions for use ............. 06 2. Product description................07 2.1 Material information .....................07 2.2 Handling / transport ...................07 2.3 Application areas, use according... -
Page 6: Preparation
1. Preparation. 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please arrange for an inventory (determination of the faults) to be made in the presence of the forwarder. -
Page 7: Product Description
(fold up foot bench, set lowest seat height etc.) Tighten all moving parts prior to carrying! 2.3 Application areas, use according to the intended purpose Indications franka. The universal seat pan sub-frame has been designed to carry a seat pan for children and teenagers. Contraindications... -
Page 8: Use Not In Accordance With The Intended Purpose / Warning Guidelines
• Correct usage of the seat pan sub-frame requires precise and careful training of the accompanying person. • The product may not be used without supervision. • The max. load (see Point 5) may not be exceeded. • The seat pan and the push handle / push bar may not be used to carry the product. Only carry it by fixed frame parts. franka. • Do not use the as a shower chair. • Always tighten the screws again after replacing parts. franka. • Do not use if it has defective, worn or missing parts. -
Page 9: Product Overview

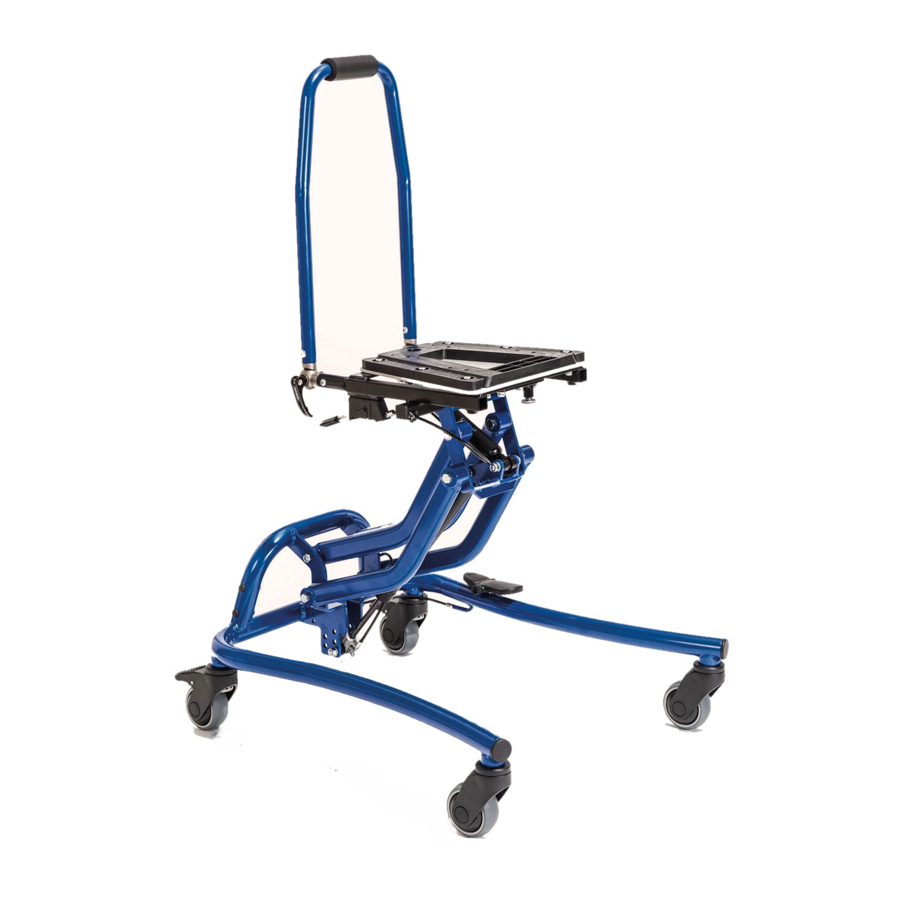

2. Product description. 2.7 Product overview The Fig. below is intended to show you the designation of the most import- ant components as well as the terms which you will find in these Instructions for use. Push handle Clamping lever for the adjustment of the push bar angle Trapezoidal adapter Foot pedal for... -
Page 10: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user‘s extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 11: Hydraulic Seat Height Adjustment
3. Settings. 3.3 Hydraulic seat height adjustment The seat height of the FRANKA sub-fra- me can optionally be adjusted through hydraulic support. This is operated with the foot: To move the frame upwards, press the pedal gently enough times on the pedal (A) until the seat pan support has reached the required position. -
Page 12: Seat Angle
3. Settings. 3.5 Seat angle In order to adjust the angle of the seat pan, the hand trigger (A) on the seat pan support is pulled upwards. The seat pan can now be adjusted through the application of pressure into an ac- tive or passive position. - Page 13 3. Settings. 3.8 Adaptation of seat pans franka. is prepared to carry a seat unit / seat pan. The seat adapter represents the connec- tion point. Seat pan adapter, standard: Insertion of the seat adapter into the seat pan support: 1.
- Page 14 Only use the push handle to push the sub-fra- me! Do not hang objects onto the push handle! Increased risk of tipping! 3.12 Conversion kit for combination subframe franka. When retrofitting the to the combinati- on sub-frame, the plastic castors are replaced through 6“...
-
Page 15: Repairs And Cleaning
Please clean with a mild house- hold detergent for severer dirt. It is important to thoroughly dry the seat pan sub-frame after cleaning. Please also pay attention to our general cleaning www.schuchmann.de/franka and hygiene advice. You can find them at 4.3 Repairs Please carry out a daily visual inspection and check the seat pan sub-frame regularly for cracks, breaks, missing parts and malfunctions. -
Page 16: Technical Data
5. Technical data. Dimensions - basic model Size 0 Size 1 Size 2 Height of seat pan support 18 - 55 cm 18 - 55 cm 18 - 55 cm Height of seat pan support with 26 - 55 cm 26 - 55 cm 26 - 55 cm electrical height adjustment... -
Page 17: Guarantee
6. Guarantee. The two-year statutory guarantee period shall apply for all products. This guarantee period shall begin with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time pe- riod, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 18: Identification
7. Identification. 7.1 EG-Konformitätserklärung Company Schuchmann GmbH & Co.KG Dütestr. 3 D-49205 Hasbergen Tel.: +49 (0) 54 05 / 909 - 0 Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classified as product class 1 franka. -
Page 19: Serial Number / Date Of Manufacture
Size Max. load Date of manufacture 7.3 Product version The seat pan sub-frame FRANKA is available in three sizes and can be supplemented through a diverse range of accessories (see point 2.6). 7.4 Issue of the document franka. Instructions for use - Change status G;... - Page 20 schuchmann.de...
