- Page 1 1. & fridolin 2. Instructions for use. fridolin 1. & fridolin 2. The functional sub-frames for indoor areas.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
4.3.1 Maintenance specifications ..............15 4.3.2 Maintenance plan ..................15 4.4 Spare parts ........................16 4.5 Duration of use and re-use ................. 16 5. Technical data................17 5.1 Dimensions fridolin 1....................17 5.2 Dimensions fridolin 2....................17... - Page 4 Contents. 6. Guarantee................... 18 7. Identification................19 7.1 EU Declaration of Conformity ................19 7.2 Serial number / date of manufacture ............20 7.3 Product version ......................20 7.4 Issue of the document ...................20 7.5 Name and address of the manufacturer, specialist dealer supplying the product ........................20...
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Inst- ructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www. schuchmann.de . -
Page 6: Product Description
Tighten all moving parts prior to carrying! 2.3 Application areas, use according to the intended purpose The fridolin 1. and fridolin 2. indoor sub-frames are medical products of risk class 1 and are suited exclusively for indoors use. The sub-frames are designed as substructure to accommodate seating systems and seat pans. -
Page 7: Use Not In Accordance With The Intended Purpose / Warning Gui
• Do not use the respective sub-frame if it has defective, worn or missing parts. • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the user. • Only use the sub-frame if all components have been correctly mounted and adjusted. -
Page 8: Product Overview

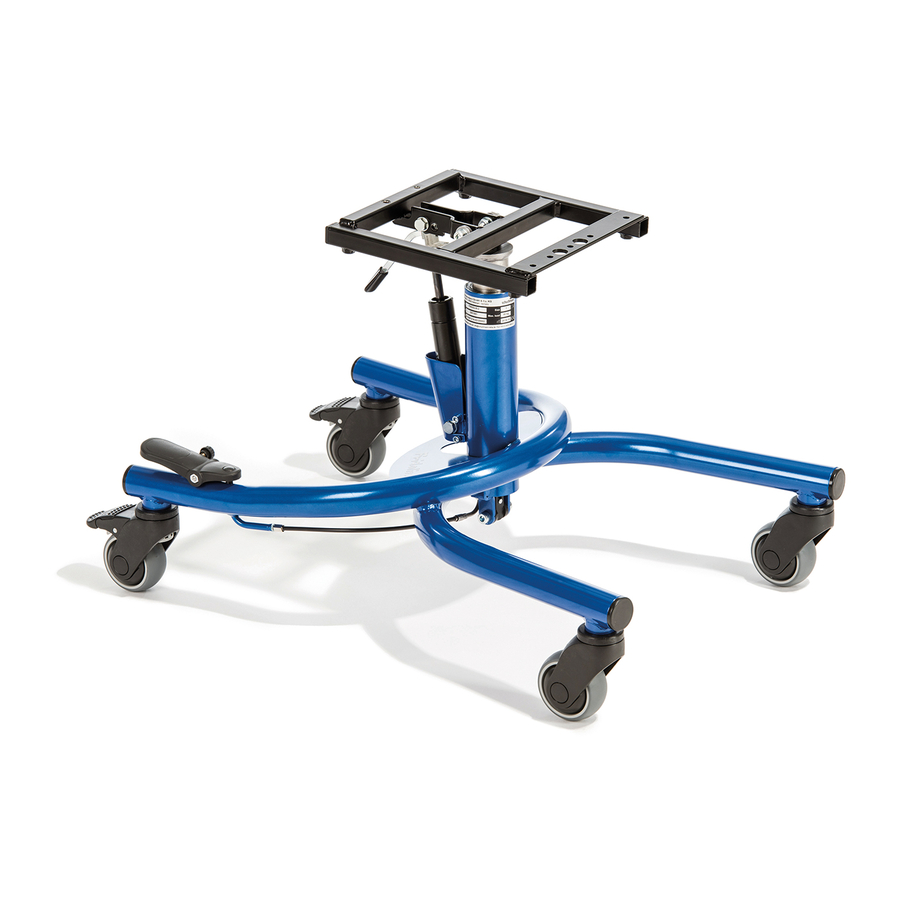

2.7 Product overview The Fig. below is intended to show you the designation of the most important components as well as the terms which you will find in these Instructions for use. fridolin 1. Support head Hand trigger for seat angle adjustment... -
Page 9: Settings
The sub-frame should always be pre- vented from rolling away inadvertently by locking the two rear castors (A). 3.2 Seat height fridolin 1. : To adjust the seat height, undo the screws of the clamps (B) on the uprights and put the seat pan into the desired position. -
Page 10: Seat Angle Adjustment
3. Settings. fridolin 2. : The sub-frame can be lo- wered to low table heights using the height adjustment by means of a gas pressure spring. To this end, the foot pedal (A) on the right-hand side of the base frame is operated (in driving di- rection) and the seat pan slides down. -
Page 11: Adaptation Of Seat Pans
3. Settings. 3.4 Adaptation of seat pans fridolin 1. & fridolin 2. are prepared to accommodate a seat unit / seat pan. The seat adapter represents the connection point. Seat pan adapter, standard: Insertion of the seat adapter into the seat pan support: 1. -
Page 12: Central Locking Brake
When the brake is released, it points downwards. The brake is tightened if the lever (A) is pointing upwards. 3.6 Foot support fridolin 1. & fridolin 2. there are different foot support variants that are mounted at the support head. After... -
Page 13: Handling Push Handle
3. Settings. 3.8 Handling push handle The push handle makes it easier to relocate the room frame, and can be adjusted in height and angle. The angle can be adjusted by releasing the levers (A). Adjust the required angle position and tighten the levers again. The height adjustment is done via the levers (B). -
Page 14: Cleaning And Maintaining
100% Polyester Please also pay attention to our general clea- ning and hygiene advice. This can be found at www.schuchmann.de/mediathek 4.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth. -
Page 15: Maintenance Specifications
4. Cleaning and maintaining. 4.3.1 Maintenance specifications • Basic cleaning according to the manufacturer's specifications • Disinfect according to the manufacturer's specifications as required • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •... -
Page 16: Spare Parts
4. Cleaning and maintaining. 4.4 Spare parts Only use original accessories and original spare parts from the manufac- turer, otherwise you will endanger the user and the warranty becomes void. To order spare parts, please contact the supplying specialist dealer (see Point 10.5). -
Page 17: Technical Data
5. Technical data. 5.1 Dimensions fridolin 1. Size 1 Size 2 Height of seat pan support 41 - 53 cm 41 - 53 cm Seat angle (-) 5° - 35° (-) 5° - 35° Total length 66 cm 77 cm... -
Page 18: Guarantee
6. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 19: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 20: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 7.3 Product version The fridolin 1. & fridolin 2. sub-frames are each available in two sizes and can be complemented by various accessories. 7.4 Issue of the document Instructions for use fridolin 1.
