- Page 1 Instructions for use. madita maxi. The proven, solid therapy chair.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indications ......................06... - Page 4 Contents. 5.2 Servicing ........................15 5.3 Maintenance ....................... 15 5.3.1 Maintenance specifications ..............15 5.3.2 Maintenance plan ..................16 5.4 Spare parts ........................16 5.5 Duration of use and re-use .................. 16 6 . Technical data................18 7. Guarantee................... 18 8.
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Instructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www.schuchmann.de . -
Page 6: Product Description

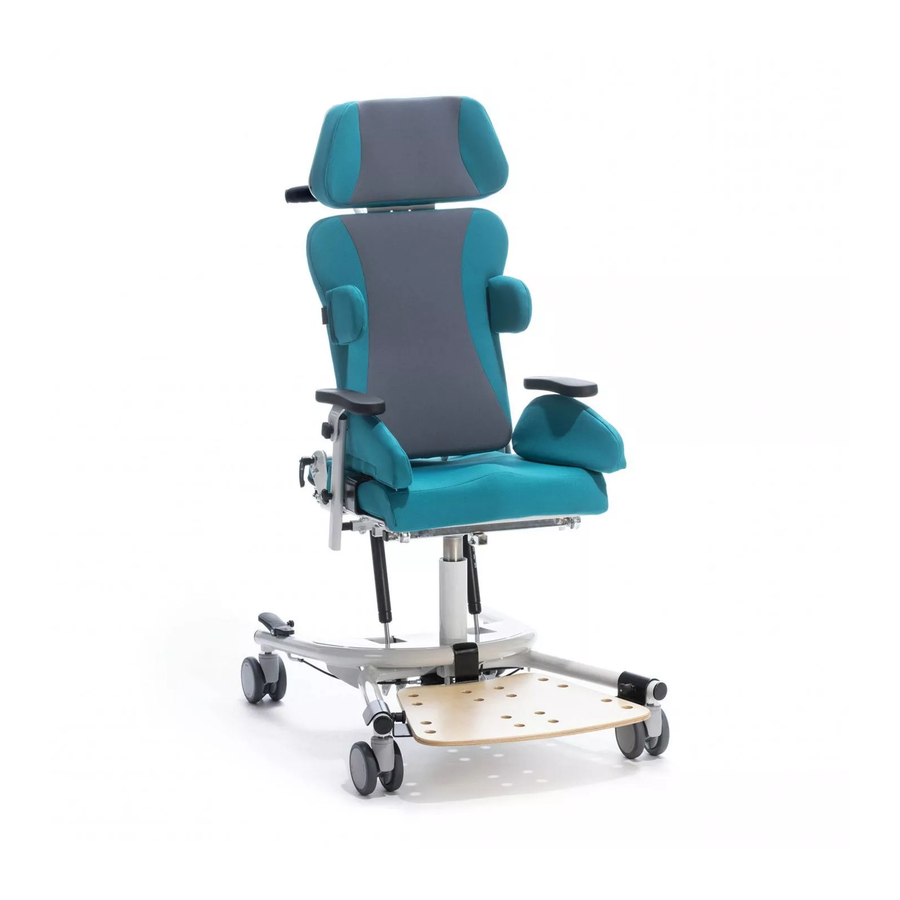

2.3 Application areas, use according to the intended purpose The madita maxi. therapy chair is a medical product of risk class 1 and de- signed for use at home and at school. It can be used for all age groups. -
Page 7: Use Not In Accordance With The Intended Purpose / Warning Gui
• Use only accessories and spare parts made by Schuchmann, otherwise you will compromise the safety of the user. • Only use the therapy chair if all components have been correctly mounted and adjusted. -
Page 8: List Of Accessories
2. Product description. 2.6 List of accessories • Standard headrest - padded, height-adjustable • Headrest with side guidance - padded, adjustable in height and angle • Headrest in shell shape - padded, adjustable in height and angle • Reinforced thorax pelotte pads •... -
Page 9: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 10: Seat Height
3. Settings. 3.3 Seat height madita maxi. can be adjusted in height up to 12 cm. The seating aid is delivered lo- west setting. In order to change the seat height, turn the crank (A) below the base frame. In addition, the two attached gas pres- sure springs must be readjusted. -
Page 11: Seat Depth
3. Settings. 3.5 Seat depth The seat depth can be adjusted by loo- sening the two grub screws (A) on both sides of the chair. Please tighten the grub screws again after the adjustment! 3.6 Back height In order to change the backrest height, the two twist grips (B) on the rear of the backrest must be released. -
Page 12: Accessories
4. Accessories. 4.1 Headrest The height of the headrest can be ad- justed. Undo all four nuts (A) at the rear to bring the headset into the desired po- sition. Please tighten again the nuts after each ad- justment! 4.2 Thorax pelotte pads The thorax pelotte pads can be adjusted in height and width. -
Page 13: Footrest
4. Accessories. 4.5 Footrest The knee angle adjustment has a snap-on connection that allows adjustments in small steps. To do this, you must release the twist grips (A) on both sides. Subsequently, undo the grub screws (B) on the rear of the footrest to adjust the height. -
Page 14: Wheel Base Extension
100% Polyester Please also pay attention to our general clea- ning and hygiene advice. This can be found at www.schuchmann.de/mediathek. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth. -
Page 15: Servicing
5. Cleaning and servicing. 5.2 Servicing Please carry out a visual inspection on a daily basis and regularly check the product for cracks, breaks, missing parts and malfunctions. In case of a defect or malfunction, please contact the specialist dealer who supplied you with the product (see Point 8.5). -
Page 16: Maintenance Plan
Any defects or damage found must be repaired by the specialist dealer or the manufacturer before reuse. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. To order spare parts, please contact the supplying specialist dealer (see point 8.5) stating the serial number of the product. - Page 17 5. Cleaning and servicing. The product is suited for re-use. Prior to forwarding, please follow the clea- ning and disinfection instructions stated in Point 5.1. Accompanying docu- ments such as these Instructions for use are part of the product and must be passed on to the new user.
-
Page 18: Technical Data
6 . Technical data. 3. Settings. Dimensions Dimensions Seat depth 36 - 47 cm Seat width 34 - 44 cm Height short back 40 cm Height long back 48 cm Height short back 48 cm Height long back 56 cm Seat height 48 - 60 cm Lower leg length... -
Page 19: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 20: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The madita maxi. therapy chair is available in one size and can be supple- mented through a diverse range of accessories (see Point 4). 8.4 Issue of the document Instructions for use madita maxi.
