- Page 1 Instructions for use. franka. The universal sub-frame.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 04 1.1 Delivery ..........................04 1.2 Safety measures prior to use ................04 1.3 Safe disposal .......................04 1.3.1 Packaging ......................04 1.3.2 Product ........................04 1.4 Where to store the Instructions for use ............04 2. Product description..............05 2.1 Material information ....................05 2.2 Handling / transport ....................05 2.3 Application areas, use according to the intended purpose .....05 2.3.1 Indications ......................05... -
Page 4: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Inst- ructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www. schuchmann.de . -
Page 5: Product Description

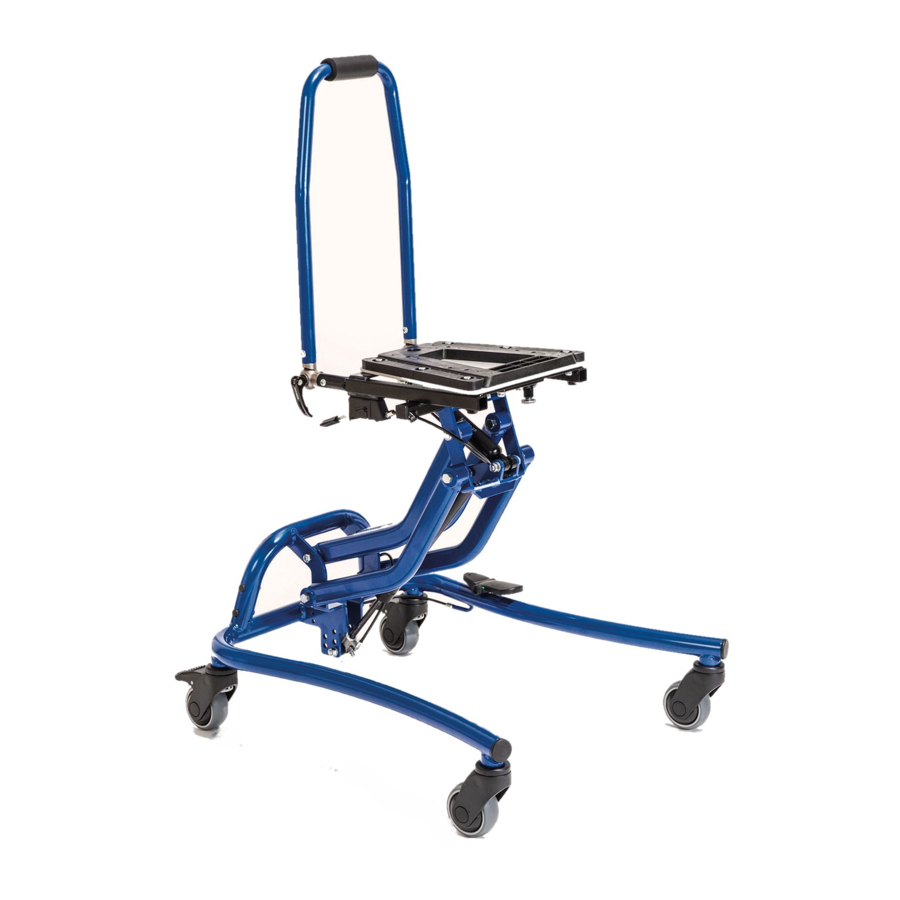

Tighten all moving parts prior to carrying! 2.3 Application areas, use according to the intended purpose The franka. seat pan sub-frame is designed for indoor use and consists of a rigid tubular frame with push bar or push handles. It has four small castors that permit turning on the spot. -
Page 6: Contraindications
• Do not use franka. as shower chair. • Always tighten the screws again after replacing parts. • Do not use franka. with defective, worn or missing parts. • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the user. -
Page 7: Product Overview
2. Product description. 2.7 Product overview The Fig. below is intended to show you the designation of the most important components as well as the terms which you will find in these Instructions for use. Push bar Clamping lever for adjustment of the push bar angle Trapezoidal adapter Foot pedal for... -
Page 8: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 9: Hydraulic Seat Height Adjustment
3. Settings. 3.3 Hydraulic seat height adjustment The seat height of the franka. sub-fra- me can optionally be adjusted in height with hydraulic support. It is operated with the foot. To move the frame upwards, press gently enough times on the pedal (A) until the seat pan support has reached the requi- red position. -
Page 10: Seat Angle
/ push handle into the required position and then pull the clamping lever tight once more. 3.7 Foot support For the franka. sub-frame there are different foot support variants that can be mounted to the support head. Depending on the respective version, these feature height, knee angle and foot angle adjustment. - Page 11 3. Settings. 3.8 Adaptation of seat pans franka. is prepared for the accommodation of a seat unit / seat pan. The seat adapter represents the connection point. Seat pan adapter, standard: Insertion of the seat adapter into the seat pan support: 1.
- Page 12 Do not hang objects onto the push handle! In- creased risk of tipping! 3.12 Conversion kit for combination sub-frame When converting franka. to a combination sub-frame, the plastic castors are replaced with 6“ pneumatic wheels with steering forks and 12 ½“ pneumatic drum braked wheels.
-
Page 13: Cleaning And Servicing
Please also pay attention to our general clea- 100% Polyester ning and hygiene advice. This can be found at www.schuchmann.de/mediathek 4.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth. -
Page 14: Maintenance Specifications
4. Cleaning and maintaining. 4.3.1 Maintenance specifications • Basic cleaning according to the manufacturer's specifications • Disinfect according to the manufacturer's specifications as required • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •... -
Page 15: Spare Parts
The expected duration of use does not refer to wear parts such as covers, pads …… Schuchmann excludes the purchase and sale of used child seats since they could have invisible damage which... -
Page 16: Technical Data
5. Technical data. Dimensions Size 0 Size 1 Size 2 Height of seat pan support 18 - 55 cm 18 - 55 cm 18 - 55 cm Height of seat pan support with 26 - 55 cm 26 - 55 cm 26 - 55 cm electrical height adjustment Height of seat pan support with... -
Page 17: Guarantee
6. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 18: Identification
Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1 declares under our sole responsibility that the following product(s) of Class 1 Medical Devices / chassis for indoor use „franka.“ Fahrgestell für den Innenbereich Item-No.: Art.-Nr. / 21 00 000, 21 01 000, 21 02 000... -
Page 19: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 7.3 Product version The franka. seat pan sub-frame is available in three sizes and can be com- plemented with various accessories (see Point 2.6). 7.4 Issue of the document Instructions for use franka. - Page 20 schuchmann.de...
