3. External Connection

This chapter describes the interface connectors on the product and the external I/O circuits.
Check the information available here when connecting an external device.
Using the Connectors
Connecting to a Connector
To connect an external device to this product, plug the cable from the device into the interface
connector (CN1) of unit shown below.

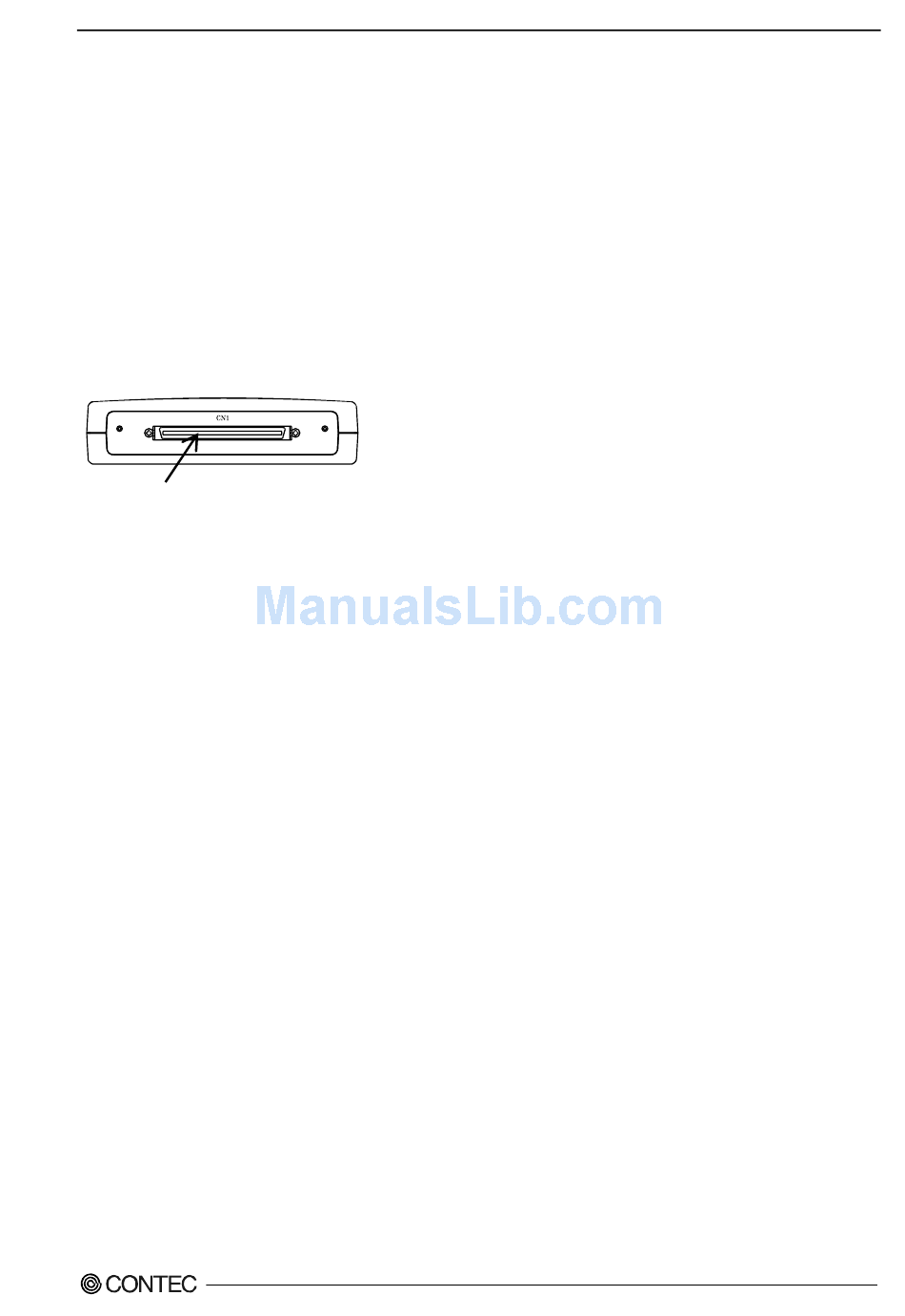

Interface connector (CN1)
* Please refer to chapter 1 for more information on the supported cable and accessories.
Figure 3.1. Interface Connector Shape
DIO-3232LX-USB
- Connector used
PCR-E96LMD+ equivalence to it
[mfd. by HONDA TSUSHIN KOGYO CO., LTD.]
- Compatible connectors
PCR-E96FA+ equivalence to it
[mfd. by HONDA TSUSHIN KOGYO CO., LTD.]
