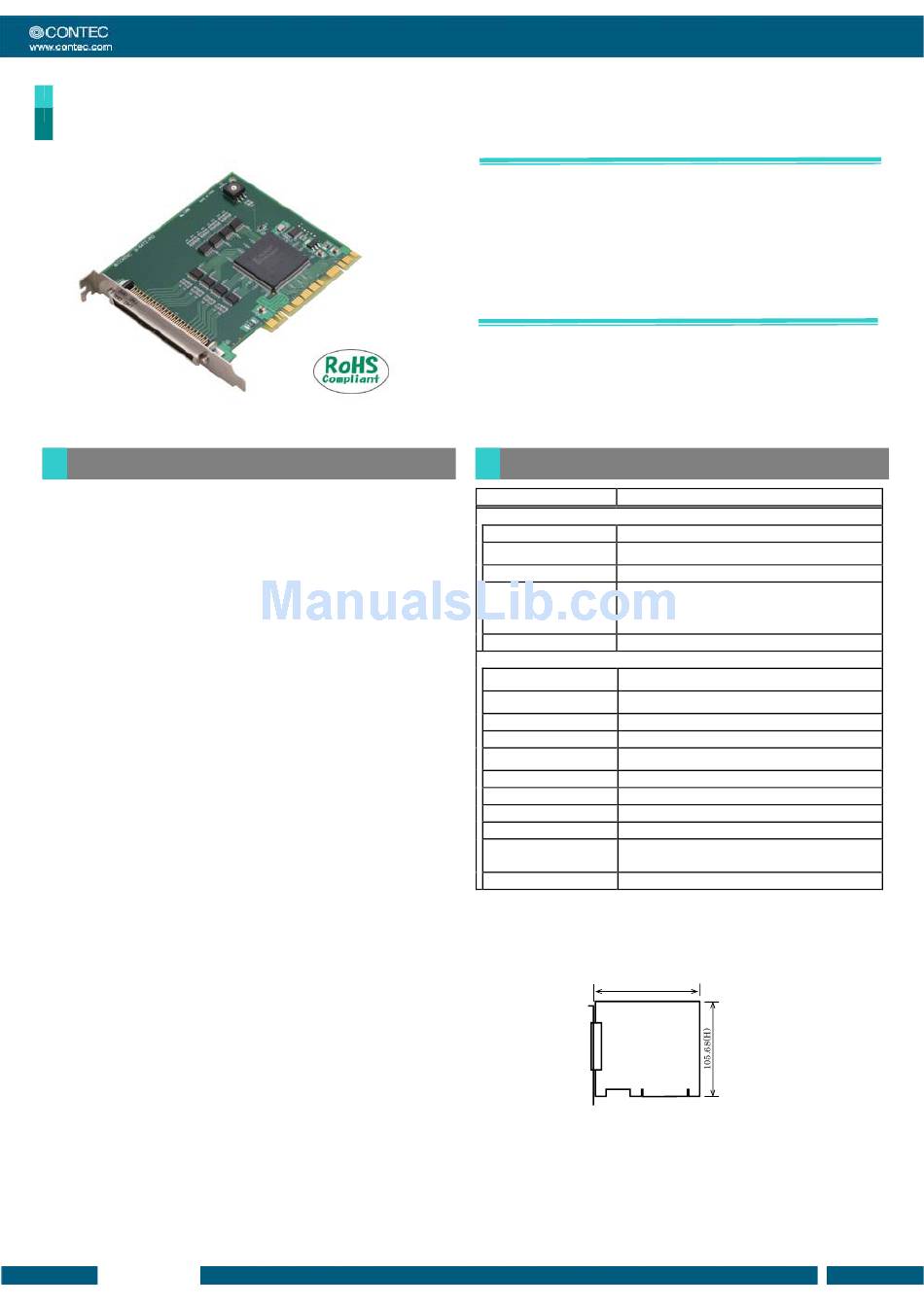

Contec DI-64T2-PCI Manual

PCI-compliant Digital Input Board
DI-64T2-PCI
* Specifications, color and design of the products are subject to
change without notice.
Features
64ch of unisolated TTL level input
This board has 64ch of unisolated TTL level input with a 200μsec
response speed.
32ch of input signals can be used as interrupt events.
You can use 32ch input signals as interrupt events and also
disable or enable the interrupt in bit units and select the interrupt
edge.
Digital filter prevents input signal errors from noise or
chattering.
A digital filter is provided to prevent input signal errors from noise
or chattering. This filter can be added to each input terminal,
with settings performed via software.
Windows and Linux driver libraries are included
The included driver library [API-PAC(W32)] makes it possible to
create applications in both Windows and Linux environments. A
diagnostic program to check the hardware operation is also
provided.
LabVIEW support
LabVIEW is supported by using CONTEC's dedicated library
VI-DAQ.
DI-64T2-PCI
This product is a PCI board designed for extending input function
on your PC. It has 64channels of TTL level inputs with a
200nsec response speed. 64ch of input signals can be used as
interrupts. A digital filter is provided to prevent input signal
errors from noise or chattering.
Both Windows and Linux drivers are included with this board.
CONTEC provides drivers that enable these boards to be
used with LabVIEW.
Specifications
Item
Input
Input format Unisolated TTL level input (Negative logic *1)
Number of input signal 64channels (32channels of them are available for interrupts) (1
channels common)
Input resistance
Pull up 10kΩ (1TTL load)
Interrupt 32 interrupt input signals are arranged into a single output of
interrupt signal INTA.
An interrupt is generated at the rising edge (HIGH-to-LOW
transition) or falling edge (LOW-to-HIGH transition).
Response time 200nsec within
Common
External supply capable current 5VDC 1A
(Max.)
Allowable distance of signal Approx. 1.5m (depending on wiring environment)
extension
I/O address Any 32-byte boundary
Interrupt Level 1 level use
Max. board count for 16 boards including the master board
connection
Power consumption (Max.) 5VDC 200mA
0 - 50°C, 10 - 90%RH (No condensation)
Operating condition
PCI (32bit, 33MHz, Universal key shapes supported *2)
Bus specification
121.69(L) x 105.68(H)
Dimension (mm)
96 pin half pitch connector [F (female) type]
Connector PCR-E96LMD+ [HONDA TSUSHIN KOGYO CO., LTD.]
equivalent to it
100g
Weight
*1: Data "0" and "1" correspond to the High and Low levels, respectively.
*2: This board requires power supply at +5V from an expansion slot (it does not work on a
machine with a +3.3V power supply alone).
Board Dimensions
121.69(L)
The standard outside dimension (L) is
the distance from the end of the board to
the outer surface of the slot cover.
Ver.1.02
Specification
[mm]
