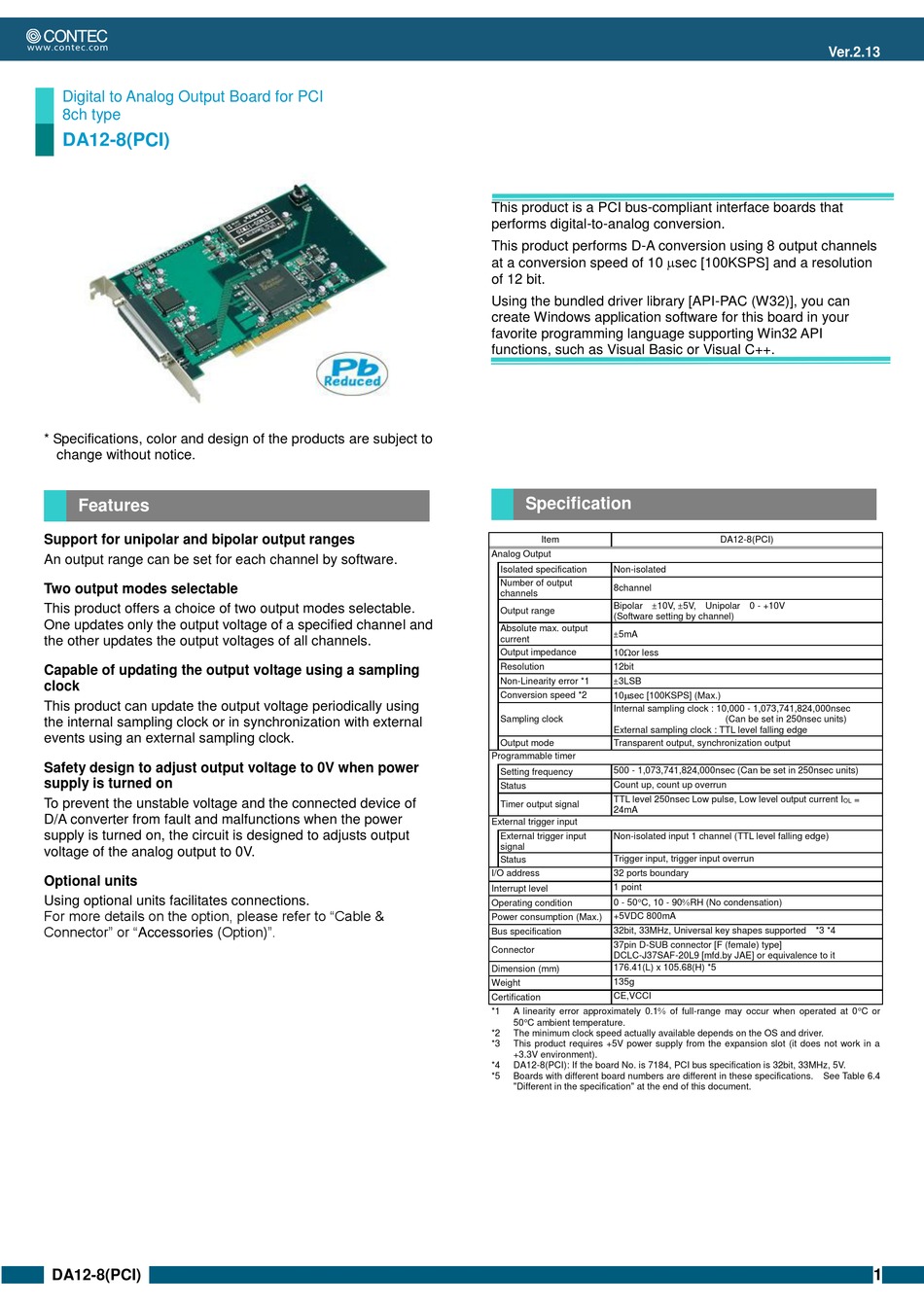

Contec DA12-8(PCI) Manual

Digital to Analog Output Board for PCI
8ch type
DA12-8(PCI)
* Specifications, color and design of the products are subject to
change without notice.
Features
Support for unipolar and bipolar output ranges
An output range can be set for each channel by software.
Two output modes selectable
This product offers a choice of two output modes selectable.
One updates only the output voltage of a specified channel and
the other updates the output voltages of all channels.
Capable of updating the output voltage using a sampling
clock
This product can update the output voltage periodically using
the internal sampling clock or in synchronization with external
events using an external sampling clock.
Safety design to adjust output voltage to 0V when power
supply is turned on
To prevent the unstable voltage and the connected device of
D/A converter from fault and malfunctions when the power
supply is turned on, the circuit is designed to adjusts output
voltage of the analog output to 0V.
Optional units
Using optional units facilitates connections.
For more details on the option, please refer to "Cable &
Connector" or "Accessories (Option)".
DA12-8(PCI)
This product is a PCI bus-compliant interface boards that
performs digital-to-analog conversion.
This product performs D-A conversion using 8 output channels
at a conversion speed of 10 sec [100KSPS] and a resolution
of 12 bit.
Using the bundled driver library [API-PAC (W32)], you can
create Windows application software for this board in your
favorite programming language supporting Win32 API
functions, such as Visual Basic or Visual C++.
Specification
Item
Analog Output
Isolated specification Non-isolated
Number of output
8channel
channels
Bipolar 10V, 5V, Unipolar 0 - +10V
Output range
(Software setting by channel)
Absolute max. output
5mA
current
Output impedance 10or less
Resolution 12bit
3LSB
Non-Linearity error *1
Conversion speed *2
10sec [100KSPS] (Max.)
Internal sampling clock : 10,000 - 1,073,741,824,000nsec
Sampling clock
External sampling clock : TTL level falling edge
Output mode Transparent output, synchronization output
Programmable timer
500 - 1,073,741,824,000nsec (Can be set in 250nsec units)
Setting frequency
Count up, count up overrun
Status
TTL level 250nsec Low pulse, Low level output current I
Timer output signal
24mA
External trigger input
External trigger input Non-isolated input 1 channel (TTL level falling edge)
signal
Trigger input, trigger input overrun
Status
I/O address 32 ports boundary
1 point
Interrupt level
0 - 50C, 10 - 90RH (No condensation)
Operating condition
+5VDC 800mA
Power consumption (Max.)
32bit, 33MHz, Universal key shapes supported *3 *4
Bus specification
37pin D-SUB connector [F (female) type]
Connector
DCLC-J37SAF-20L9 [mfd.by JAE] or equivalence to it
176.41(L) x 105.68(H) *5
Dimension (mm)
135g
Weight
CE,VCCI
Certification
*1 A linearity error approximately 0.1 of full-range may occur when operated at 0C or
50C ambient temperature.
*2 The minimum clock speed actually available depends on the OS and driver.
*3 This product requires +5V power supply from the expansion slot (it does not work in a
+3.3V environment).
*4 DA12-8(PCI): If the board No. is 7184, PCI bus specification is 32bit, 33MHz, 5V.
*5 Boards with different board numbers are different in these specifications.
"Different in the specification" at the end of this document.
Ver.2.13
DA12-8(PCI)
(Can be set in 250nsec units)
=
OL
See Table 6.4
