2
Getting to Know
the Smart Drone
The
X-Star series is a new generation of smart unmanned aerial vehicle. It is
extremely easy to ly and reliable. Featuring the advanced built-in Smart Flight
System and a high-performance remote controller, combined with a powerful
mobile app, the X-Star allows safe and stable light maneuvers which can be
operated both manually and automatically. The stabilized 3-axis camera gimbal
offers ideal solutions for smooth aerial photographing and video recording, making
the system incredibly versatile and powerful.
The X-Star series comes in three models: the X-Star Go features an H4 gimbal
ready for the GoPro
®
HERO4 camera; the X-Star and X-Star Premium are
both equipped with an integrated 4k camera gimbal. The X-Star adopts a self-
generated WiFi network, while the X-Star Premium utilizes HD video streaming
to establish a live video link with the X-Star mobile app Starlink as you ly.
This manual provides detailed descriptions of the functions and operations about
the X-Star and the X-Star Premium.
Aircraft
The X-Star/X-Star Premium aircraft is a quadcopter with an integrated stabilized
camera gimbal. An HD camera is also integrated.

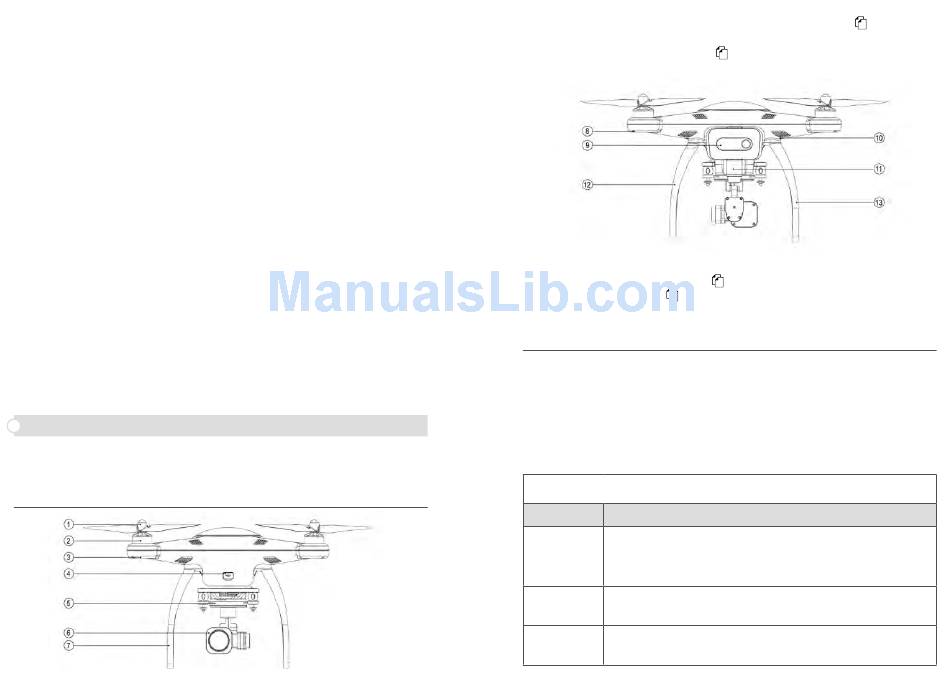

Functionality Description
2
Front Side
Propeller
Motor
Front LED Indicator Light (
Micro-USB Port
Rear LED Indicator Light (
6)
Aircraft Battery (
RC Binding Button
Built-in Smart Flight System
The X-Star/X-Star Premium features a built-in Smart Flight System which
provides stable and user-friendly light control. The Smart Flight System consists
of various sensors such as the Global Navigation Satellite System (GNSS)
receiver, the Compass, the Inertial Measurement Unit (IMU) and Barometer. It
works as the central computer of the aircraft and supports various functions, such
as Intelligent Orientation Control (IOC), Go Home, Failsafe, Starpoint Positioning
System, etc.
Smart Flight System Modules
Module
An electronic device consisting of a 3-axis gyroscope and a 3-axis
accelerometer that measure the acceleration and angular rates of
IMU
the aircraft. An automatic IMU calibration is performed every time you
start the aircraft.
Measures geomagnetic ield and provides heading reference to the
Compass
aircraft.
Receives GNSS (GPS/GLONASS) signals to determine the latitude,
GNSS
Receiver
longitude and altitude of the aircraft.
8)
3-axis Gimbal (
Camera
5)
Front Sticker
Rear Side
5)
Starpoint Positioning Module
Landing Gear
Compass Module
Description
3
