PART LIST—Model No. PFEMBE33230
Key No. Qty.
Description
1
1
Bench Frame
2
1
Front Stabiliser
3
1
Rear Stabiliser
4
1
Leg Lever
5
1
Seat Frame
6
1
Seat Bracket
7
1
Leg Lever Bracket
8
2
Backrest Frame
9
1
Backrest Bracket
10
1
Backrest
11
1
Seat
12
4
20mm x 40mm Inner Cap
13
1
Backrest Adjustment Knob
14
10
8mm Bushing
15
2
12.5mm Spacer
16
2
Pad Tube
17
4
19mm Round Inner Cap
18
4
Foam Pad
19
2
25mm Round Inner Cap
20
1
40mm x 50mm Inner Cap
21
1
50mm x 75mm Inner Cap
22
4
50mm Square Outer Cap
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user's manual for information about ordering replacement parts.
R0703A
Key No. Qty.
Description
23
5
M6 x 50mm Bolt
24
4
M8 x 55mm Carriage Bolt
25
4
M8 Nylon Locknut
26
4
M6 x 16mm Bolt
27
2
M10 x 80mm Bolt
28
1
M10 x 45mm Adjustment Knob
29
1
45mm Square Inner Cap
30
1
M10 x 100mm Bolt
31
4
M10 x 67mm Bolt
32
6
M10 Washer
33
9
M10 Nylon Locknut
34
5
M6 Washer
35
2
M10 x 140mm Bolt
36
2
Plastic Plate
37
3
50mm Square Inner Cap
38
1
Curl Pad
39
1
Curl Frame
40
1
25mm Spring Clip
41
1
Weight Sleeve
#
1
Grease Pack
#
1
User's Manual
#
1
Exercise Guide

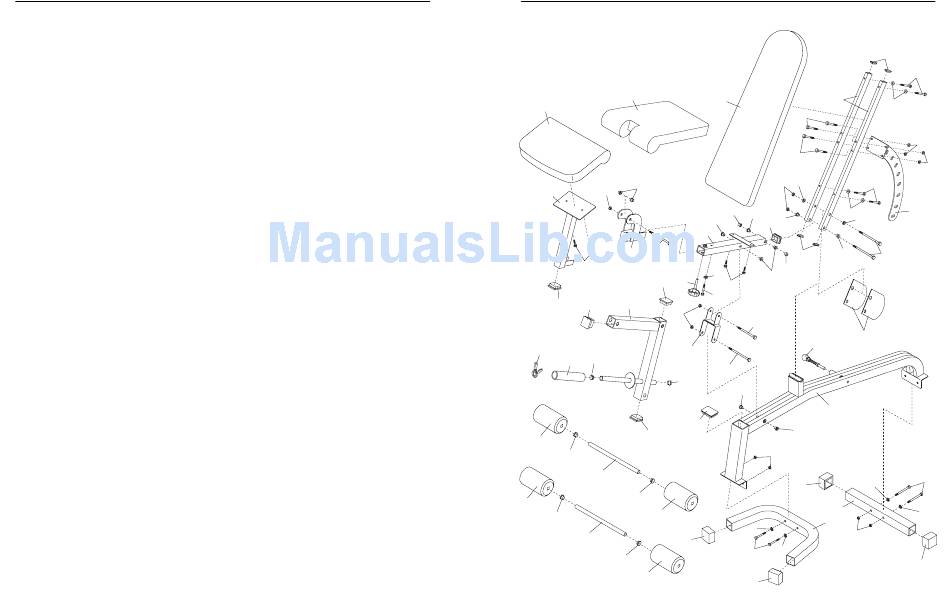

EXPLODED DRAWING—Model No. PFEMBE33230
11
38
14
33
39
27
7
26
28
37
29
4
37
33
6
40
19
41
19
21
37
18
17
16
17
18
18
17
16
22
17
18
12
10
8
24
24
32
33
23
15
34
14
14
14
32
20
5
14
12
35
15
34
14
26
23
27
36
13
30
14
1
14
33
32
22
3
2
32
33
32
31
22
R0703A
23
34
25
25
9
31
32
22
