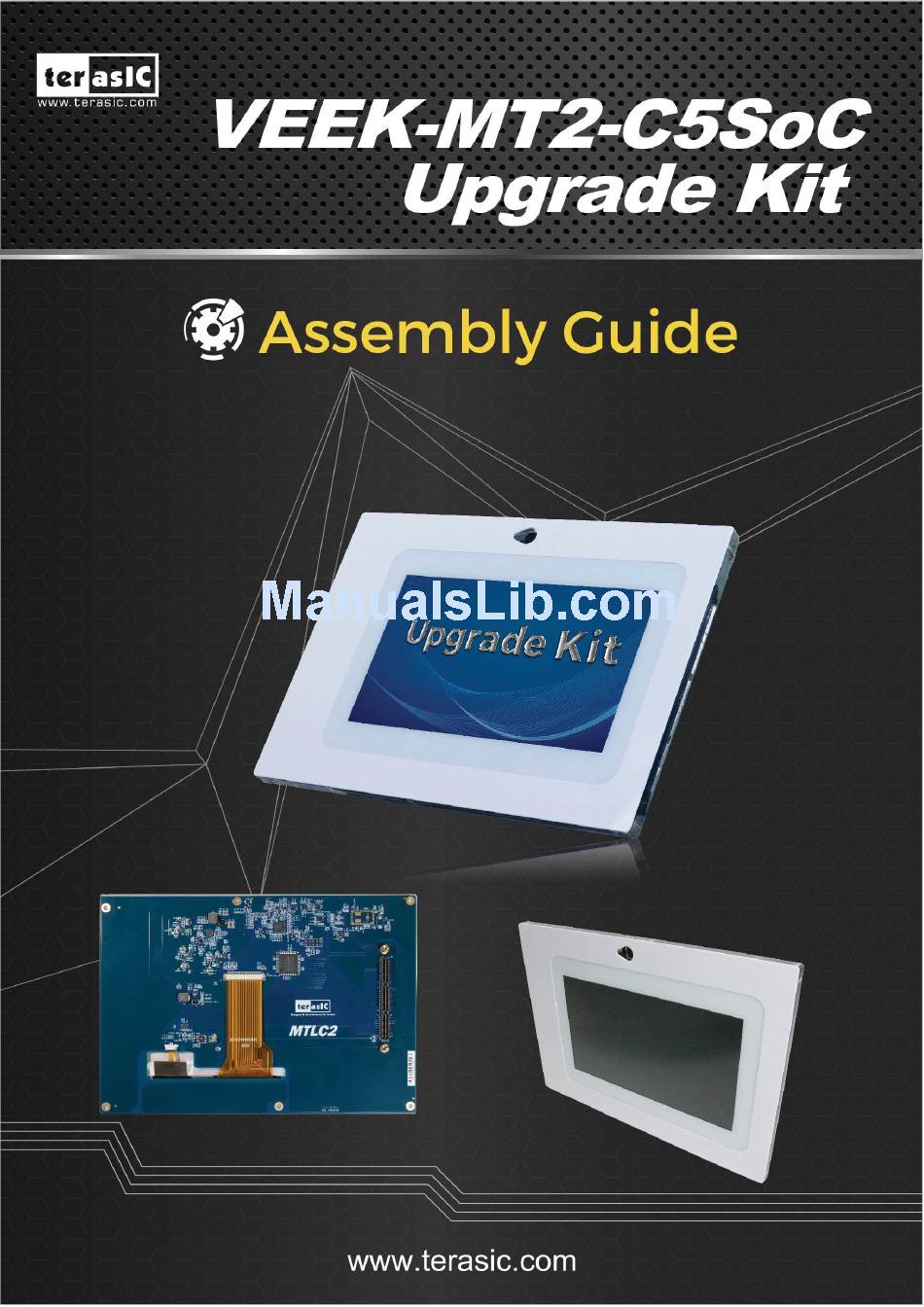

Terasic VEEK-MT2-C5SoC Assembly Manual

Upgrade kit
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEEK-MT2-C5SoC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Terasic VEEK-MT2-C5SoC

Summary of Contents for Terasic VEEK-MT2-C5SoC

  • Page 2 TABLE OF CONTENTS 1. INTRODUCTION 1.1. P ..........................1 URPOSE 1.2. A .................... 1 CCESSORIES FROM THE ACKAGE 1.3. R ..................2 EQUIREMENT OF SUPPLIED 2. DISASSEMBLE ORIGINAL C5SOC 3 2.1. U C ....................3 NLOAD CREWS OF 2.2. S ..................
  • Page 3 1. Introduction This document shows how to assemble Altera Cyclone V SoC dev. kit (C5SoC) and VEEK-MT2-C5SoC Upgrade Kit into VEEK-MT2- C5SoC. The assembly procedures and list of accessories required to complete the task are covered. Item Name Picture Quantity...

  • Page 4: Supplied

    4mm Screw M3 Thread Hex Nut Item Name Picture Quantity C5SoC Recommend Phillips Screwdriver Spec.:PH#2(6mm) Recommend Spec: Hex Socket Wrench 5.0mm...

  • Page 5: Disassemble Original C5Soc

    2. Disassemble Original C5SoC Use a Phillips screwdriver to unload the four screws on the corners of C5SoC in anticlockwise direction. They are not required for further use. Please put them away.

  • Page 6: Tandoffs

    Assemble C5SoC Install Item E(30mm M-F Standoff )x5 / Item C(5mm M-F Standoff)x2 / Item H(8mm Screw) x1 onto the C5SoC with a hex socket wrench. Please install the Item D(HSMC cable) with MTLC2 and make sure the connection is secured with Item I(4mm Screw)x2 and Phillips screwdriver.
  • Page 7 Install Item F(19mm M-F Standoff)x5＋Item J(M3 Thread Hex Nut )x5 / Item G(5mm F-F Standoff )x2＋ Item I(4mm Screw )x2 onto the C5SoC with a hex socket wrench and Phillips screwdriver...
  • Page 8 Connect C5SoC and MTLC2 via the other end of HSMC cable. The connection can be tightened with Item I(4mm Screw)x2 using Phillips screwdriver. After the assembly is complete, please place the C5SoC and MTLC2 bac-to-back, as shown below.
  • Page 9 Place Item B(VEEK-MT2-C5SoC Acrylics) on top of the C5SoC according, as shown below. Screw Item H(8mm Screw) x10 on top of Item E(30mm M-F Standoff), as shown below.

  • Page 10: Completion

    4. Completion...
