Source Audio Aftershock Bass Distortion User Manual page 7

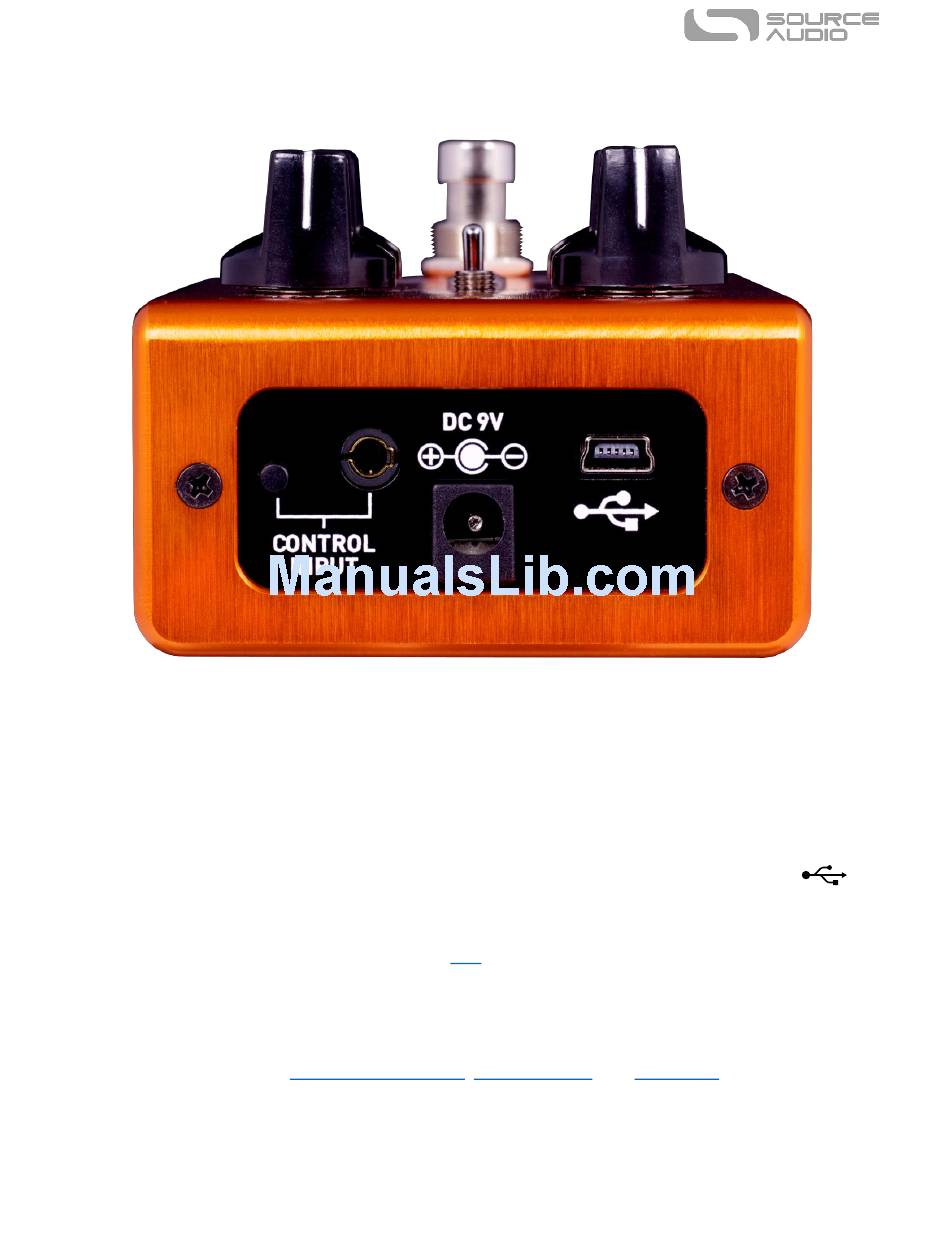

Power and Control Connections
DC 9V (Power)
Connect to the included 9 Volt DC power supply. The power supply must be regulated at 9 Volts
(direct current), able to source at least 180 mA (milliamps) of current, and the plug should have a tip-
negative, sleeve-positive polarity (the center tip is ground and the sleeve is power).
USB
Connect to your computer (Mac or Windows) to the Aftershock's USB port (denoted by the
icon) using a standard mini USB cable. The Aftershock is a class compliant USB device, meaning that it
should be recognized by Mac and Windows computers automatically. For more information about
the Aftershock's USB capabilities, refer to the
Control Input
The 3.5 mm Control Input port connects to external control devices such as the Dual Expression
Pedal, Reflex Universal Expression Pedal, Neuro Hub, and Hot Hand Motion Controller. For more
information, refer to the
User's Guide.
SA246
USB
Expression Pedal Input,
Aftershock Bass Distortion User's Guide
section of the User's Guide.
Hot Hand Input, and Neuro Hub sections of the
7
