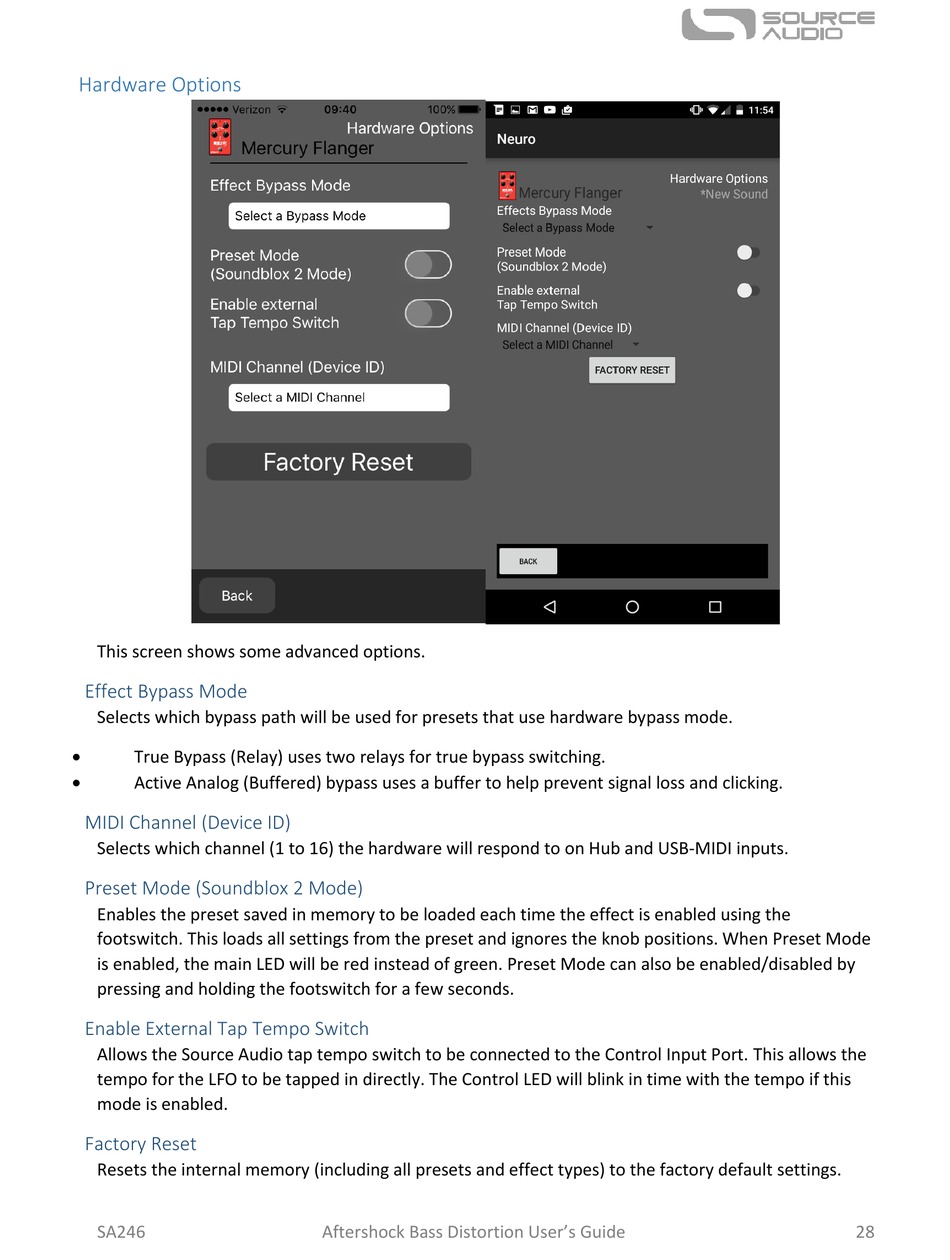

Source Audio Aftershock Bass Distortion User Manual page 28

Hardware Options
This screen shows some advanced options.
Effect Bypass Mode
Selects which bypass path will be used for presets that use hardware bypass mode.

True Bypass (Relay) uses two relays for true bypass switching.

Active Analog (Buffered) bypass uses a buffer to help prevent signal loss and clicking.
MIDI Channel (Device ID)
Selects which channel (1 to 16) the hardware will respond to on Hub and USB-MIDI inputs.
Preset Mode (Soundblox 2 Mode)
Enables the preset saved in memory to be loaded each time the effect is enabled using the
footswitch. This loads all settings from the preset and ignores the knob positions. When Preset Mode
is enabled, the main LED will be red instead of green. Preset Mode can also be enabled/disabled by
pressing and holding the footswitch for a few seconds.
Enable External Tap Tempo Switch
Allows the Source Audio tap tempo switch to be connected to the Control Input Port. This allows the
tempo for the LFO to be tapped in directly. The Control LED will blink in time with the tempo if this
mode is enabled.
Factory Reset
Resets the internal memory (including all presets and effect types) to the factory default settings.
SA246 Aftershock Bass Distortion User's Guide 28
