Page 2
At least two qualified people should always perform the installation work. Injury and damage can result from dropping or mishandling the display. - 2 - Contact Premier Mounts for any questions...
Page 3
Assembly drawing Fan brackets Display In-wall plenum (1 supplied with (not supplied) inwall) Mounting Decorative bezel Bracket provided by (Sold separately) Wood stud Air flow customer frame Wall structure - 3 -...
Page 4
Parts list All of these parts are used to install the mounting bracket. Make sure that none of these parts are missing before beginning installation. If there are parts missing stop the installation and contact Premier Mounts. (4) 6/32” Hex nuts (3) 10/32”...
Page 5
Opening the wall structure NOTE: It is assumed that the room ambient air temperature and conditions where the INW-series is to be incorporated is suitable to maintain an acceptable operating temperature for the display. It should also be noted that due to the shear size and weight of the large screen display when attached to the base pan it will have a natural slight down tilt characteristic to about 3°.
Page 6

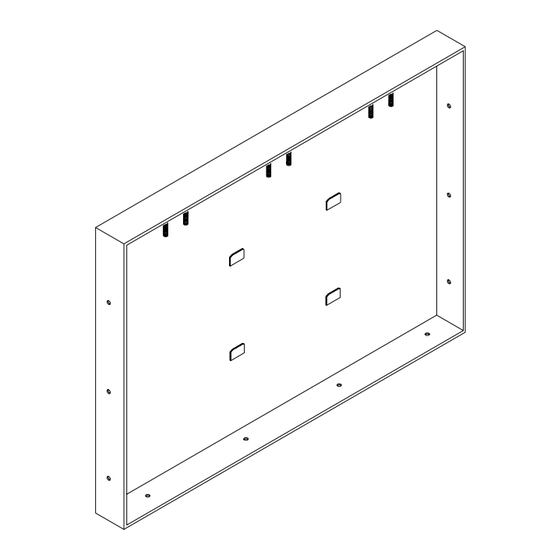

Step 2 Partial “knock outs” are incorporated in the top and upper back on both sides of the base pan for bringing power and signal cables into the pan in accordance with code. Insert the pan fully (in the case of a standard 2 x 4-stud wall) or to the desired depth in a deeper wall structure. Secure the pan to the wood stud frame using nails or wood screws (commercially available).
Page 7
Step 4 Install the ventilation assist fan (if used) on one of the three 10/32” thread mounting points in the top of the base pan with the three 10/32” nuts supplied. The fan supplied uses 110-volts A/C current and comes with “pig tail” ends. It is recommended the fan be wired to the same 110-volt A/C switch leg as the feeding power to the display.
