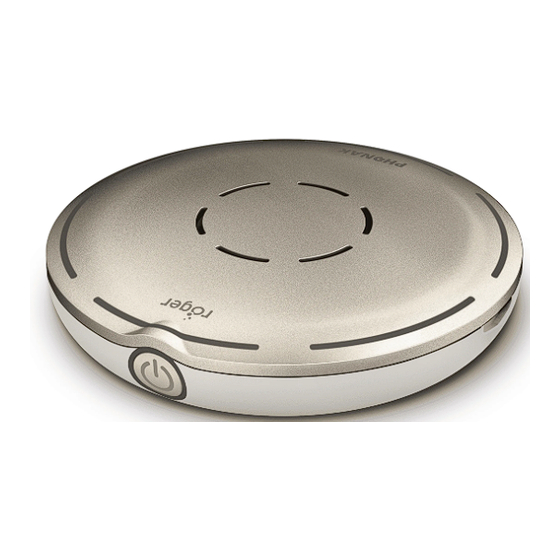

Phonak Roger Selec iN Installation Manual

1. (Ensure hearing aid is switched off) Switch on the
Roger Select iN transmitter
2. Check that there are any receiver codes available
in the Roger Select iN by briefly pushing the pin
tool into the button hole farthest from the S/N
3. The following light indication shows the number
of receiver codes available in the iN transmitter
e.g. two green flashes = two codes available
4. To install a RogerDirect receiver code into a
Marvel hearing aid, push the pin tool into the
button hole farthest from the S/N and hold it
there for 2 Sec
5. You should see a continuous flashing green light,
indicating the iN transmitter is ready to install a
RogerDirect receiver code
Phonak RogerDirect Installation Guide: Roger Select iN
6. Turn the hearing aid on and place the hearing aid
next to the Roger Select iN transmitter
7. A solid green light indicates successful installation
of one RogerDirect receiver code into the hearing
aid. This also connects the transmitter to the
hearing aid.
8. Restart the Roger Select iN
9. Repeat steps 1-8 if a binaural fit.
Important: It is recommended to keep all other
hearing aids and Roger devices near the Roger
Select iN turned off during installation.
See reverse for the un-installation guide
©David Crowhen and Winner Tian - Phonak New Zealand
