v1.0
ASSEMBLY GUIDE

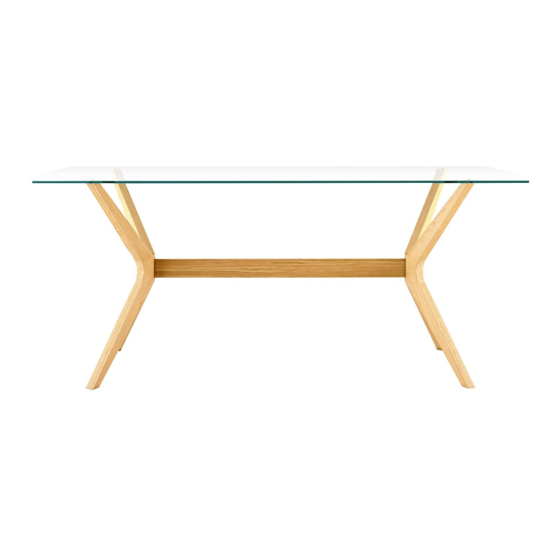

Elizabeth Dining Table

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elizabeth and is the answer not in the manual?

Questions and answers

Summary of Contents for BROSA Elizabeth

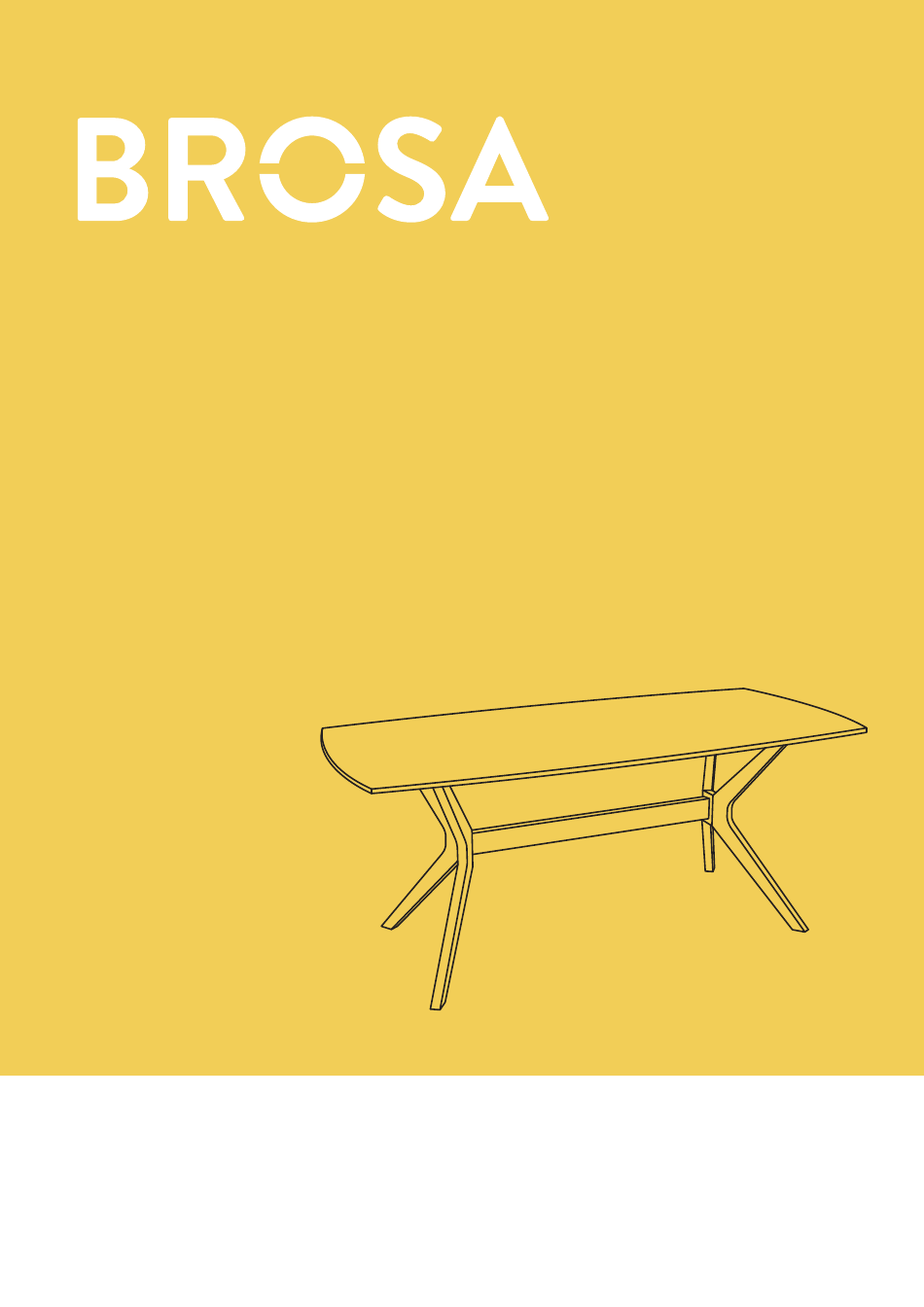

  • Page 1 ASSEMBLY GUIDE Elizabeth Dining Table...
  • Page 2 Components Upon unpacking your dining table from its delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new dining table. Table top x 1 Leg x 2 Stretcher x 1 Hardware What you need A x 4...
  • Page 3 Step 1 Insert a steel dowel into both holes in the leg making sure they are facing the correct direction when in place. Repeat for the other leg (2). A x 4 Step 2 Align a leg to the stretcher tting them together and repeat for the other leg (2).
  • Page 4 Step 3 Align the structure formed in Step 2 to the underside of the table top (1). Fit a lock washer to a bolt followed by a at washer and screw into a hole, using the allen key to tighten into place. Repeat for the remaining bolts (C).
