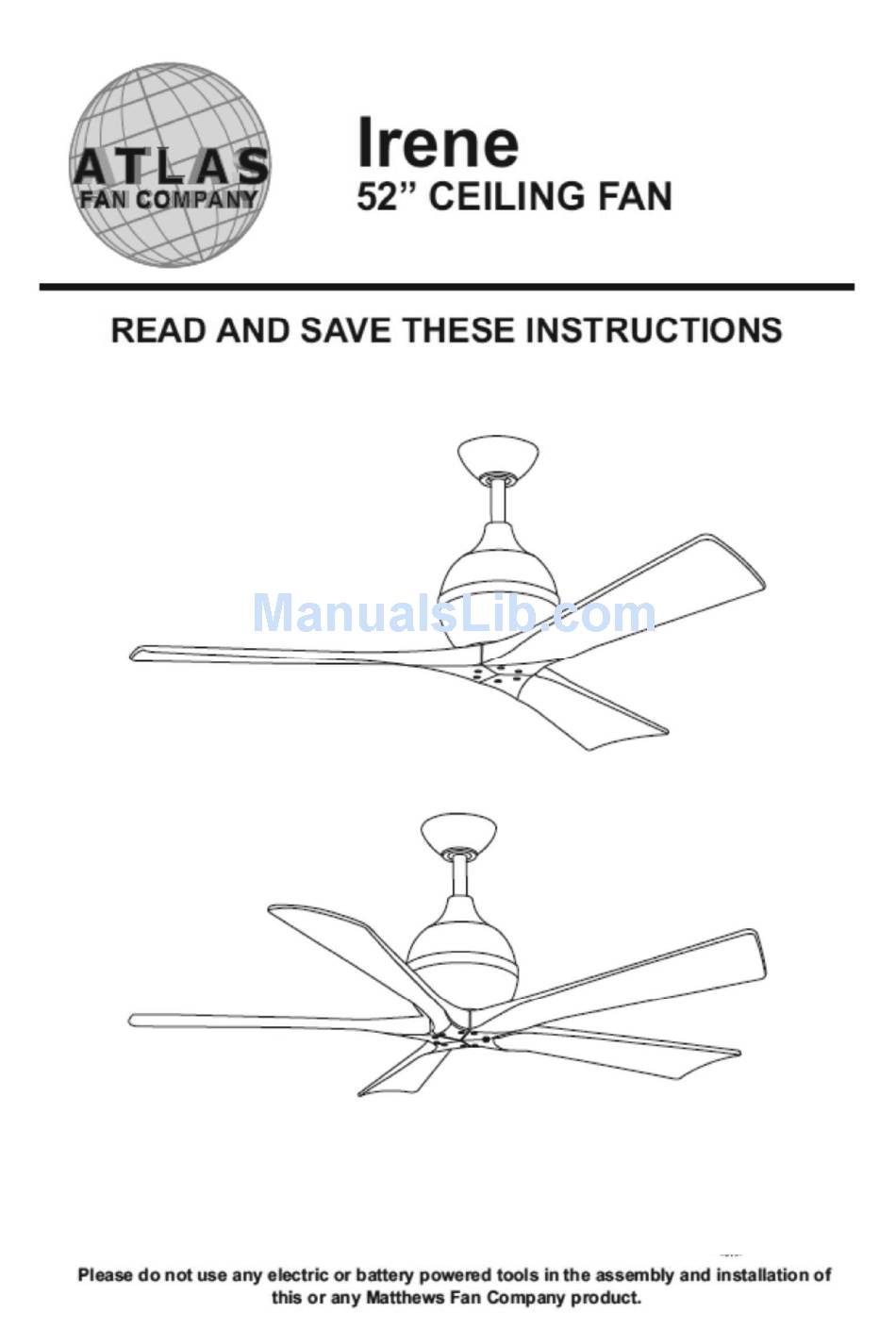

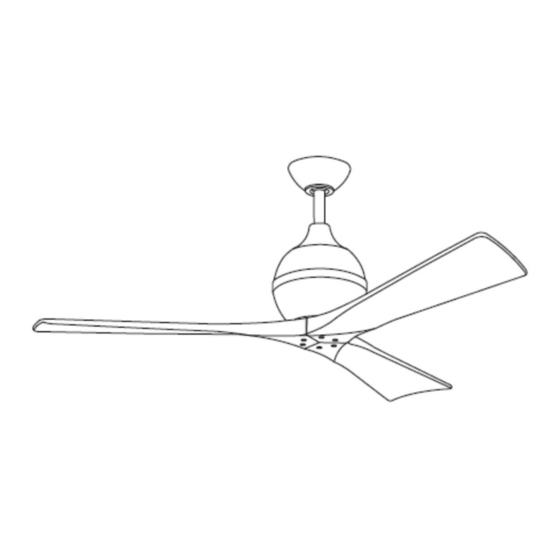

- Page 1 YG432-MG FAN RATING AC 220-240v~50Hz...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Tools and Materials Required………………………………………1 Package Contents…………………………………...……………...1 Safety Rules………………………………………………………….2 Attaching the Fan Blades…………………………………………...3 Hanging the Fan……………………………………………………..3 Making the Electrical Connections…………………………………5 Programming Your fan and Operating the Remote Control……..6 Operating Your Fan………………………………………………….7 Care of Your Fan…………………………………………………….7 Troubleshooting……………………………………………………...8 Warranty………………………………………………………………9... -
Page 3: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED • Philips screwdriver • Blade screwdriver • 11mm wrench • Step ladder • Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a-1. Blade set (3) (for Irene-3) a-2. -
Page 4: Safety Rules
3. SAFETY RULES READ AND SAVE THESE SAFETY AND INSTALLATION INSTRUCTIONS. High voltage and moving parts around motors and motor driven equipment can cause serious or fatal injuries. Always disconnect power source at the main switch before any wiring, servicing or cleaning of the unit. Do not rely on the fan control device to prevent unexpected start-up or electrical shock. -
Page 5: Attaching The Fan Blades
4. ATTACHING THE FAN BLADES Fasten a blade to the motor using the screws supplied. (Fig. 5) Repeat the process with the other blades. Tighten each screw and make sure the blade is straight. NOTE: This fan is supplied with two types of blades installation. - Page 6 5. Loosen the two set screws and remove the hitch pin and lock pin from the central shaft/top coupling of the motor assembly. Doing so will allow the down rod to enter the central shaft. (Fig.9) 6. Carefully feed the fan wires through the down rod and pull them taught.
-
Page 7: Making The Electrical Connections
6. MAKING THE ELECTRICAL CONNECTIONS WARNING: The power should have already been disconnected. Follow the steps below to connect the fan to your household wiring. Loosen the screws on the terminal block, insert the wire to each terminal block and re-tighten the screws loosened previously, Make sure there are no loose strands or connections. -
Page 8: Programming Your Fan And Operating The Remote Control
7. PROGRAMMING YOUR FAN AND OPERATING THE REMOTE CONTROL Your DC brushless motor is equipped with an automatically learned type remote control. Install one 23A/12V battery (included). To prevent damage to the transmitter. Remove the battery if not used for long periods of time. (Fig.15) Restore power to the ceiling fan and test for proper operation. -
Page 9: Operating Your Fan
8. OPERATING YOUR FAN Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans and so on. NOTE: To operate the reverse function on this fan, press the reverse button while the fan is running. -
Page 10: Troubleshooting
10. TROUBLESHOOTING Problem Solution Fan will not start 1. Check circuit fuses or breakers 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check that the battery of the remote is functional. 4. -
Page 11: Warranty
MOTOR: The Atlas Fan Company (Atlas) warrants to the original consumer purchaser of each Atlas Fan ("You"), that if any part of the motor, excluding the wall controls, remote controls or pull cord mechanisms ("Controls”) fails due to a defect in material or workmanship ("Defect") during your lifetime while the Atlas Fan is still installed in the exact location in which it was originally installed following the... - Page 12 LIMITATION OF WARRANTIES Atlas Atlas In addition to any limitations set out above, the warranties are limited to, at ’s sole option, the replacement of the fan or defective part or the supply of an equivalent product or part; the repair of the Atlas fan or defective part or the payment of the cost of having the...
