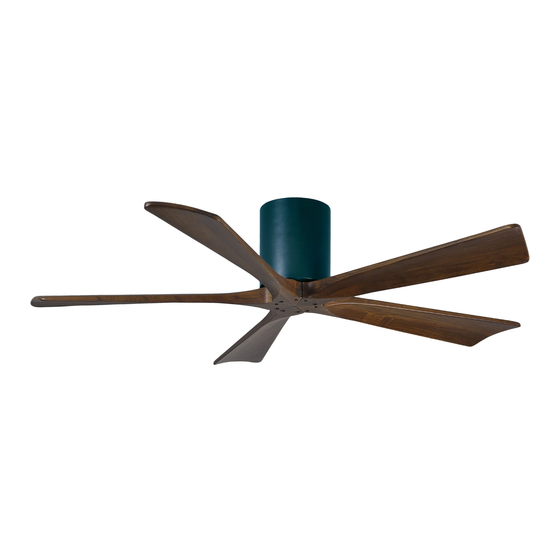

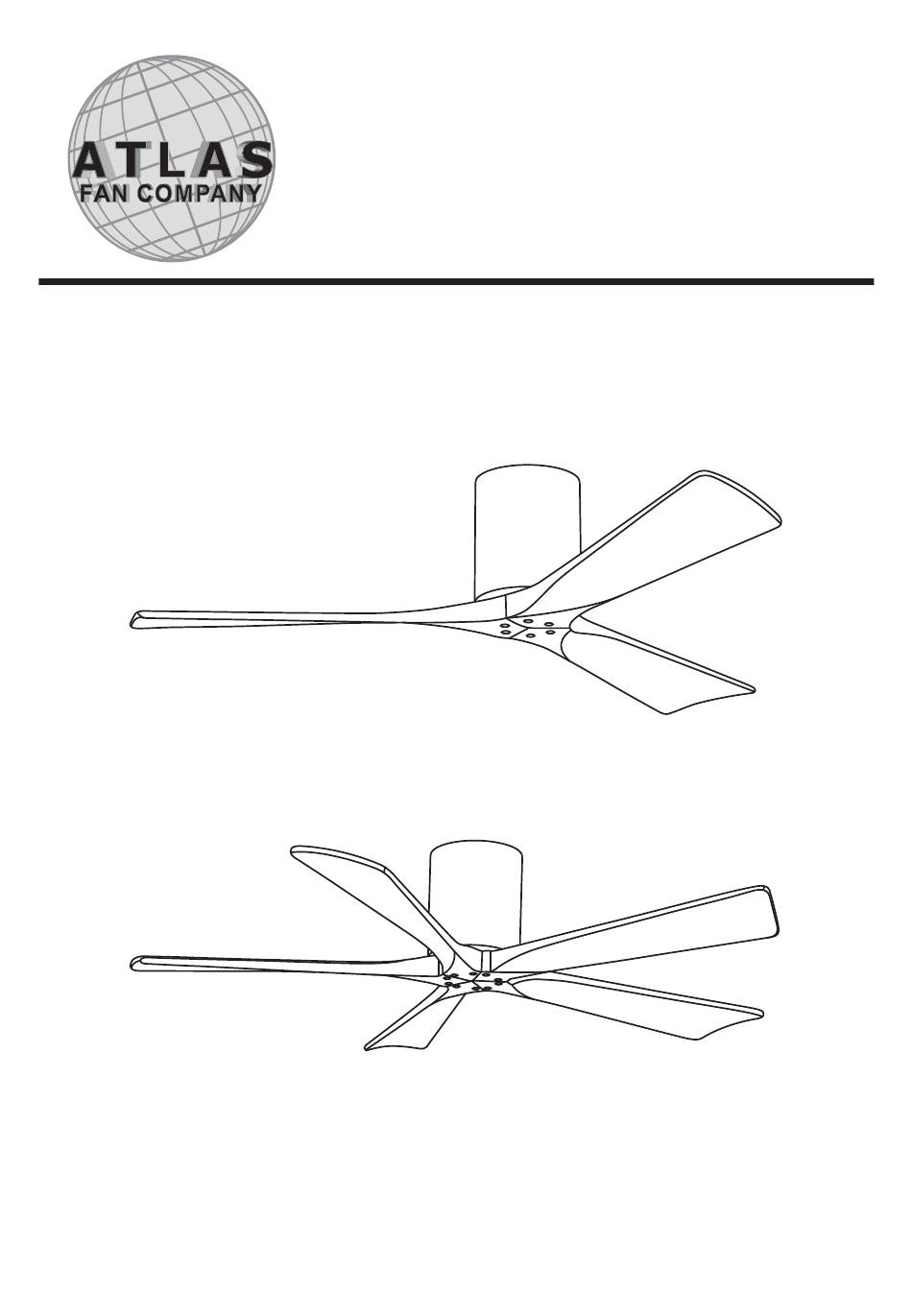

- Page 1 Irene-H CEILING FAN READ AND SAVE THESE INSTRUCTIONS Irene-3H Irene-5H FAN RATING AC 220-240V~, 50/60Hz Please do not use any electric or battery powered tools in the assembly and installation of this or any Matthews Fan Company product. AUSTRALIA ONLY...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a-1. Blade set (3) (for Irene-3H) a-2. Blade set (5) (for Irene-5H) Mounting bracket (preassembled with fan motor assembly) Fan motor assembly... -
Page 3: Safety Rules
3. SAFETY RULES READ AND SAVE THESE SAFETY AND INSTALLATION INSTRUCTIONS. 1. High voltage and moving parts around motors and motor driven equipment can cause serious or fatal injuries. Always disconnect power source at main switch before wiring, servicing or cleaning unit. -
Page 4: Hanging The Fan
4. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1. Disassemble the mounting bracket from the fan motor assembly. Washers Mounting bracket Step 2. Attach the mounting bracket to the Screws ceiling. -
Page 5: Make The Electric Connections
5. MAKE THE ELECTRIC CONNECTIONS Remember to disconnect the power. Follow the steps below to connect the fan to your Blue household wiring. Use the wire connecting nuts (household) supplied with your fan. Secure the connectors Brown (household) with electrical tape. Make sure there are no loose strands or connections. -
Page 6: Finishing The Installation
6. FINISHING THE INSTALLATION Step 1. Move fan motor into position over the Safety cable four mounting holes and secure with the four screws provided. (Fig. 4) Step 2. An additional safety support is provided Motor to prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer. -
Page 7: Attaching The Fan Blades
7. ATTACHING THE FAN BLADES 1. Fasten blade to motor using the screws supplied. (Fig. 6) 2. Repeat process with other blades. Tighten each screw and make sure the blade is straight. NOTE: This fan is supplied with two types of Blade blades for installation. -
Page 8: Programming Your Fan And Operating The Remote Control
8. PROGRAMMING YOUR FAN AND OPERATING THE REMOTE CONTROL Your DC brushless motor is equipped with a automatically learned type remote control. Install one 23A/12V battery (included). To prevent damage to transmitter, remove the battery if not used for long periods of time (Fig. 7) Restore power to ceiling fan and test for proper ON ECE operation. -
Page 9: Operating Your Fan
9. OPERATING YOUR Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. NOTE: To operate the reverse function on this fan, press the reverse button while the fan is running. Figure 9 Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig. -
Page 10: Troubleshooting
11. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check that the battery of the remote is functional. 4. - Page 11 MOTOR: The Atlas Fan Company (Atlas) warrants to the original consumer purchaser of each Atlas Fan ("You"), that if any part of the motor, excluding the wall controls, remote controls or pull cord mechanisms ("Controls”) fails due to a defect in material or workmanship ("Defect") during your lifetime while the Atlas Fan is still installed in the exact...
- Page 12 IN-HOME (ON-SITE) WARRANTY? The Atlas 12 month in-home warranty covers Atlas ceiling fans installed within the coverage of our network of service agents in cases where the product fails due to defective materials or workmanship. This warranty does not cover installation faults, house wiring faults, loose blades or fittings or damage of any kind. Claims regarding corrosion damage are subject to case by case appraisal.
- Page 13 Note: Signals sent through the power grid by the electricity supplier for the control of off peak hot water, street lights and other devices may cause an intermittent humming noise in your electrical appliances such as your ceiling fan. Filters are available in Australia at the customer's expense. These noises do not occur as a result of a faulty fan.
