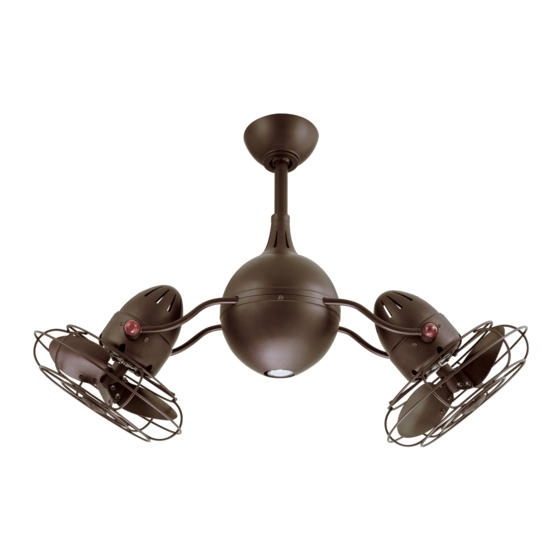

- Page 1 Acqua Ceiling Mounted Rotational Fan READ AND SAVE THESE INSTRUCTIONS FAN RATING AC 220-240V~, 50/60Hz Please do not use any electric or battery powered tools in the assembly and installation of this or any Matthews Fan Company product. AUSTRALIA ONLY...
-
Page 2: Tools And Materials Required
TOOLS AND MATERIALS REQUIRED Philips screw driver Standard, flat-head screw driver 11 mm wrench Step ladder Wire cutters PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Hanger bracket assembly e-ii Ball / down rod assembly Coupling cover e-iii Fan motor assembly... - Page 3 READ AND SAVE THESE SAFETY AND INSTALLATION INSTRUCTIONS. Consult a licensed electrician if unsure of any point below mentioned. DANGER/WARNING/CAUTION 1. High voltage and moving parts around motors and motor driven equipment can cause serious or fatal injuries. Always disconnect power source at main switch before wiring, servicing or cleaning unit.
- Page 4 13. Warning: To reduce the risk of fire, electrical shock or personal injury, mount to outlet box marked acceptable for fan support and use screws provided with outlet box. 14. WARNING: This product is designed to use only those parts supplied with this product and/or accessories designated specifically for use with this product.
- Page 5 MOUNTING/INSTALLATION Ceiling OF THE FAN hanger bracket Before touching a screw driver thoroughly read these instructions. Ceiling canopy Warning/Caution: Before installing fan, turn off power at service panel and check all visible screws Canopy and bolts for tightness. cover Figure 1 1.
- Page 6 10 A. Metal Blades and Safety Cages: If your fan is one with metal blades and safety cages, remove protective plastic sleeve from the motor shafts, then and attach the back side of the safety cage. Next, attach the Screw blade.
-
Page 7: Making The Electrical Connections
MAKING THE ELECTRICAL CONNECTIONS Code switch Warning: The power should have already been disconnected. Follow the steps below to connect the fan to your household wiring. Loosen the screws on the terminal block, insert the wire to each terminal block and re-tighten the screws loosened previously. - Page 8 5. Connect the white, neutral receiver neutral wire to the terminal block “N” hole. Connect Black (”LI” to fan) the blue, receiver wire to the Live/hot Live/hot Blue (LI) Brown terminal block “LI” hole. Connect the black, (”L” to fan) Receiver receiver wire to the terminal...
- Page 9 7. Tuck connections neatly into ceiling. 8. Slide the canopy up to hanger bracket and place the key hole on the canopy over the Hanger bracket screw on the hanger bracket, turn canopy until it locks in place at the narrow section of Screws the key holes.
-
Page 10: Operating The Remote Control
OPERATING THE REMOTE CONTROL Install 9V battery (included). To prevent damage to transmitter, remove the battery if not used for long periods. (Fig. 13) Restore Power to Ceiling Fan. A. HI, MED, LOW Buttons: These buttons are used to set the fan speeds as follows;... - Page 11 MAKING THE ELECTRICAL CONNECTIONS Screw driver (OPTIONAL FOR USING WALL CONTROL) Plug Warning: The power should have already Green/Ground (Hanger bracket) been disconnected. Follow the steps below to connect the fan to your household wiring. Loose the screws on the terminal block, insert the wire to each terminal block and re-tighten Terminal the screws loosened previously.
- Page 12 5. After connecting the wires, spread them SUPPLY CIRCUIT apart so that the green, ground and neutral, blue wires are on one side of the outlet box and the hot, brown and the black wires are on the other side of the outlet box. OUTLET BOX To Hot Ground...
- Page 13 MOUNTING/INSTALLATION Outlet box OF THE WALL CONTROL: Switch Wall plate Screws (OPTIONAL FOR USING WALL CONTROL) 1. Remove the existing wall plate and switch. (Fig. 19) 2. Set knobs on the new, wall control in the "0" position. 3. Make speed control wire connections (Fig. 20).
-
Page 14: Operating The Wall Control
OPERATING THE WALL CONTROL (OPTIONAL FOR USING WALL CONTROL) Restore Power to Wall Fan. A. The fan 3-speed control knob is used to control the fan blade speed as follows: 0= Turns the fan off 1= High Speed 2= Medium Speed 3= Low Speed B. - Page 15 REGULATION OF ROTATION OF FAN UNIT 1. Regulate speed of fan. The rotation of the fan can be sped up or slowed down by increasing or decreasing the power at the remote control, regulating the speed of fan heads and varying the position of the motor heads. See number 2 below 2.
- Page 16 MOTOR: The Atlas Fan Company (Atlas) warrants to the original consumer purchaser of each Atlas Fan ("You"), that if any part of the motor, excluding the wall controls, remote controls or pull cord mechanisms ("Controls”) fails due to a defect in material or workmanship ("Defect") during your lifetime while the Atlas Fan is still installed in the exact...
- Page 17 IN-HOME (ON-SITE) WARRANTY? The Atlas 12 month in-home warranty covers Atlas ceiling fans installed within the coverage of our network of service agents in cases where the product fails due to defective materials or workmanship. This warranty does not cover installation faults, house wiring faults, loose blades or fittings or damage of any kind. Claims regarding corrosion damage are subject to case by case appraisal.
- Page 18 Note: Signals sent through the power grid by the electricity supplier for the control of off peak hot water, street lights and other devices may cause an intermittent humming noise in your electrical appliances such as your ceiling fan. Filters are available in Australia at the customer's expense. These noises do not occur as a result of a faulty fan.
