READ AND SAVE THESE INSTRUCTIONS
QUICK ASSEMBLY NOTES:
* Do not wire in fan while house wires are Live. Turn power off at breaker before installation
begins.
* Do not use any controls, wall or remote, other than those provided by Matthews Fan Company.
* Please do not use any electric or battery powered tools in the assembly and installation of this
or any other Matthews Fan Company product.

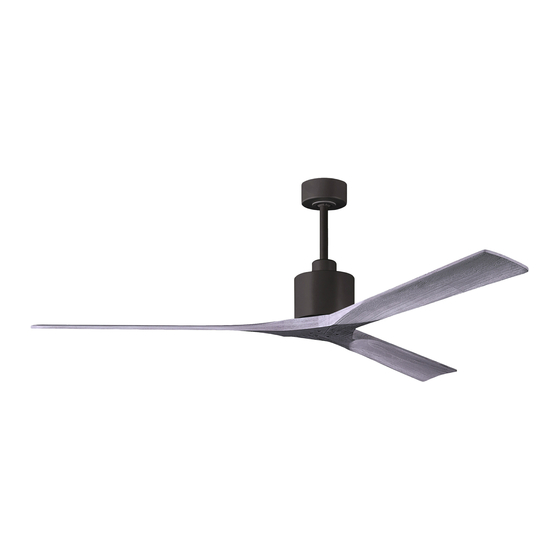

NAN XL
72" & 90" INDUSTRIAL FAN
FAN RATING AC 120V. 60Hz
For
Damp Location
Advertisement
Table of Contents
Related Manuals for Atlas fan company NAN XL
Summary of Contents for Atlas fan company NAN XL
- Page 1 NAN XL 72" & 90" INDUSTRIAL FAN READ AND SAVE THESE INSTRUCTIONS FAN RATING AC 120V. 60Hz Damp Location QUICK ASSEMBLY NOTES: * Do not wire in fan while house wires are Live. Turn power off at breaker before installation begins.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Tools and Materials Required..................2. Package Contents ...................... 3. Safety Rules........................ 4. Mounting Options......................5. Hanging the Fan ......................6. Make the Electric Connections..................7. Finishing the Installation....................8. Attaching the Fan Blades.................... 9. Programming Your Fan and Operating the Remote Control and Wall Control.... 10. -
Page 3: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Blade set (3) Hanger bracket assembly Ball / down rod assembly Coupling cover Fan motor assembly Hand held transmitter+holder+2 mounting screws... -
Page 4: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure To avoid personal injury or damage to the fan electricity has been turned off at the circuit and other items, be cautious when working breaker or fuse box before beginning. around or cleaning the fan. -
Page 5: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Outlet box Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan 15.9 kgs (35lbs) or less. -
Page 6: Hanging The Fan
5. HANGING THE FAN Ceiling hanger REMEMBER to turn off the power. Follow the steps bracket below to hang your fan properly. Ceiling 1. Remove the decorative canopy bottom cover from canopy the canopy by turning the cover counter clockwise. (Fig. -
Page 7: Make The Electric Connections
6. MAKE THE ELECTRIC CONNECTIONS Outlet box White ("AC IN N") NOTE: Your fan has included as standard equipment two types of controls: a hand held Green or bare Black ("AC IN L") copper (ground) remote control and a wall mounted wall control. You may use both as long as the dip switches Ground (green) Black (motor) - Page 8 B. Wall mount remote control SUPPLY CIRCUIT a. Fan wire connection Ground Conductor 1. Connect the fan supply (black) wire to the black household supply wire (Conductor cable between ceiling and wall outlet box). (Fig. 10) Ceiling Outlet Box 2. Connect the neutral fan (white) wire to the white neutral household wire.
-
Page 9: Finishing The Installation
7. FINISHING THE INSTALLATION Outlet box Hanger STANDARD CEILING INSTALLATION bracket Screws 1. Tuck connections neatly into ceiling outlet box. Canopy 2. Slide the canopy up to hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 10: Programming Your Fan And Operating The Remote Control And Wall Control
9. PROGRAMMING YOUR FAN AND OPERATING THE REMOTE CONTROL AND WALL CONTROL Before programming takes place, fan must be fully assembled and mounted to the ceiling with blades attached. You must also choose which control you will be using for programming the fan, the remote or the wall control. -
Page 11: Operating Your Fan
NOTE: If the self calibration test failed, turn the AC power off; restore power and process the self calibration test again. NOTE: During self calibration test, the remote and the wall control are non-functional. NOTE: The learning frequency function and self calibration test will continue to retain the last set frequency and calibration set even when the AC power is shut off. -
Page 12: Care Of Your Fan
11. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2. - Page 13 LIMITED LIFETIME WARRANTY MATTHEWS-GERBAR, LTD. DBA MATTHEWS FAN COMPANY LIFETIME LIMITED WARRANTY. warranted by Matthews-Gerbar, Ltd. to the original user against defects in workmanship or materials under normal use and inside or outside damp location installation for: Motors: Lifetime of original purchaser: Labor &...
