READ AND SAVE THESE INSTRUCTIONS
QUICK ASSEMBLY NOTES:
* Do not wire in fan while house wires are Live. Turn power off at breaker before installation
begins.
* Do not use any controls, wall or remote, other than those provided by Matthews Fan Company.
* Please do not use any electric or battery powered tools in the assembly and installation of this
or any other Matthews Fan Company product.
* Fan should be assembled and mounted by two people.

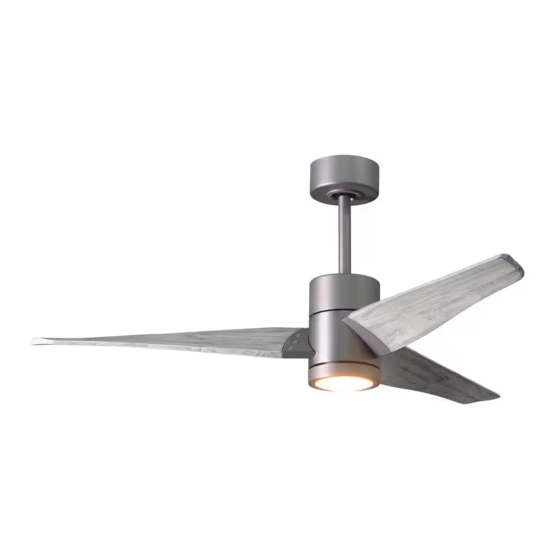

Super Janet
60", 52" or 42"
CEILING FAN
FAN RATING AC 120V. 60Hz
For Damp Location
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas fan company Super Janet
Summary of Contents for Atlas fan company Super Janet

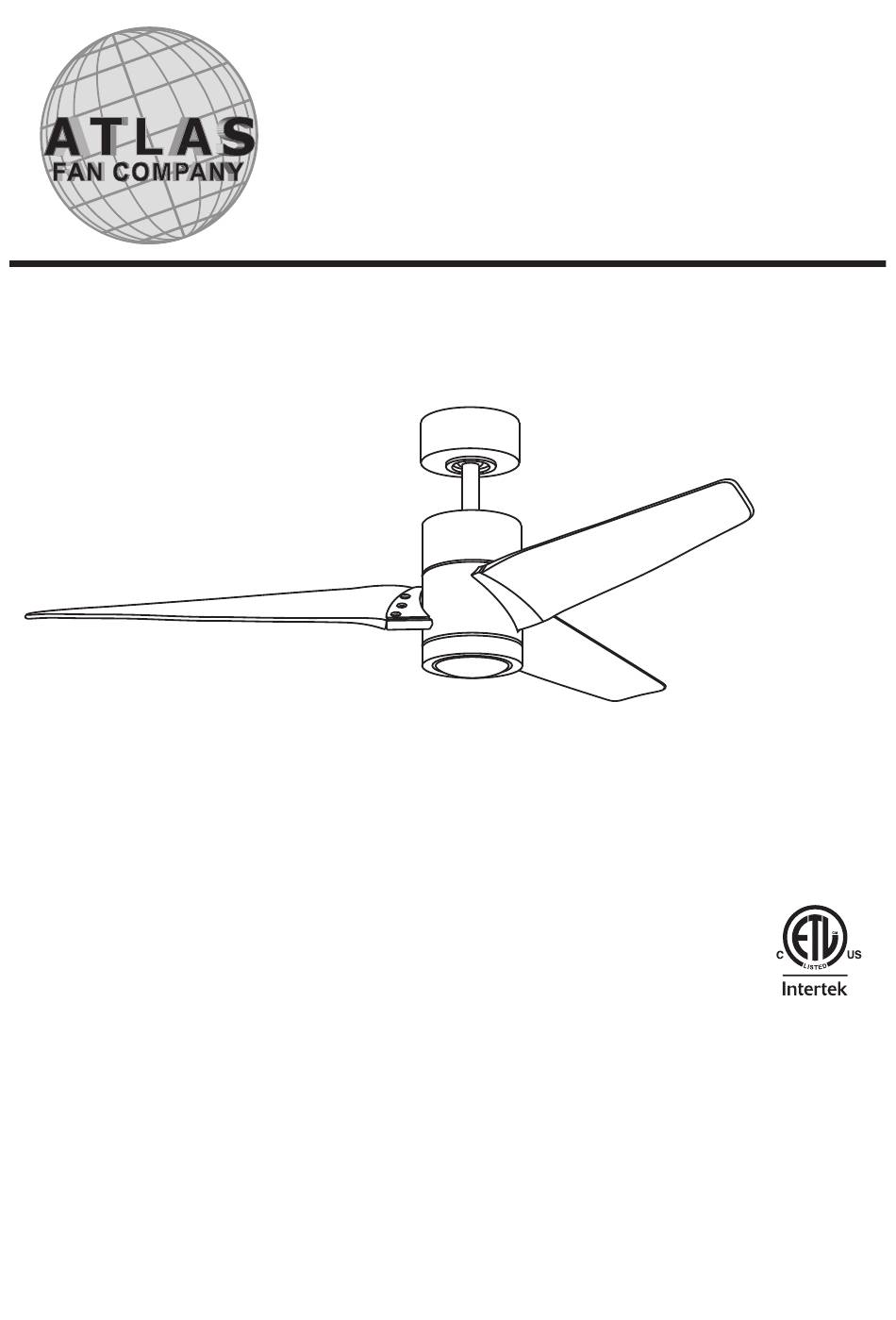

- Page 1 Super Janet 60”, 52" or 42" CEILING FAN READ AND SAVE THESE INSTRUCTIONS FAN RATING AC 120V. 60Hz For Damp Location QUICK ASSEMBLY NOTES: * Do not wire in fan while house wires are Live. Turn power off at breaker before installation begins.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Tools and Materials Required..................Package Contents ......................Safety Rules........................Mounting Options......................Hanging the Fan ......................Make the Electric Connections..................Finishing the Installation....................Attaching the Fan Blades....................Attaching the Mounting Plate..................Installing the Light Kit....................Programming Your Fan and Operating the Remote Control ........Operating Your Fan...................... -
Page 3: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Blade set (3) b. Blade medallion (3) c. -
Page 4: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. To avoid personal injury or damage to the fan electricity has been turned off at the circuit and other items, be cautious when working breaker or fuse box before beginning. around or cleaning the fan. -
Page 5: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 6: Hanging The Fan
5. HANGING THE FAN Screws Before touching a screw driver thoroughly Metal plate read these instructions. Warning/Caution: Before installing fan, turn off power at service panel and check all visible Coupling screws and bolts for tightness. cover 1. Remove the metal plate and coupling cover from the fan motor by removing the two Collar screws from the rim of metal plate. - Page 7 9. Now lift the motor assembly (fan with blades) Supply wires into position and place the hanger ball into the hanger bracket. Rotate down rod until Downrod the "Check Tab" has dropped into the Canopy "Registration Slot" and the down rod and ball assembly seat firmly.
-
Page 8: Make The Electric Connections
6. MAKE THE ELECTRIC CONNECTIONS NOTE: Your fan has included as standard Outlet box equipment two types of controls: a hand held remote control and a wall mounted wall control. White ("AC IN N") You may use both as long as the dip switches Green or bare Black ("AC IN L") are calibrated the same. - Page 9 B. Wall mount remote control SUPPLY CIRCUIT a. Fan wire connection Ground 1. Connect the fan supply (black) wire to the black Conductor household supply wire (Conductor cable between ceiling and wall outlet box). (Fig. 11) Ceiling 2. Connect the neutral fan (white) wire to the white Outlet Box neutral household wire.
-
Page 10: Finishing The Installation
7. FINISHING THE INSTALLATION 1. Tuck connections neatly into ceiling outlet Outlet box box. 2. Slide the canopy up to hanger bracket and place the key hole on the canopy over the screw Hanger bracket on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 11: Attaching The Fan Blades
8. ATTACHING THE FAN BLADES 1. Fasten the blades to the blade arms and blade medallion using the blade attachment screws and fiber washers. Start a screw with fiber washer into the blade medallion, but do not tighten. (Fig. 14) Screw Fiber washer... -
Page 12: Installing The Light Kit
10. INSTALLING THE LED LIGHT KIT AND GLASS SHADE 1. Remove 1 of 3 screws from the mounting plate and loosen the other 2 screws. (Do not remove) 2. Raise and hold the LED light kit close to the mounting plate and proceed to do the wire connections. -
Page 13: Programming Your Fan And Operating The Remote Control
11. PROGRAMMING YOUR FAN AND OPERATING THE REMOTE CONTROL AND WALL CONTROL Before programming takes place, fan must be fully assembled and mounted to the ceiling with blades attached. You must also choose which control you will be using for programming the fan, the remote or the wall control. -
Page 14: Operating Your Fan
NOTE: If the self calibration test failed, turn the AC power off; restore power and process the self calibration test again. NOTE: During self calibration test, the remote and the wall control are non-functional. NOTE: The learning frequency function and self calibration test will continue to retain the last set frequency and calibration set even when the AC power is shut off. -
Page 15: Care Of Your Fan
13 CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2. - Page 16 INSTRUCTIONS ON HOW TO PROGRAM MULTIPLE FANS ON SINGLE CIRCUIT BREAKER. 1. Turn the power off at the breaker/service box. 2. Hang all fans by convenience cable located in top of motor to hook in ceiling bracket. This will allow you to easily access the leads from house and the leads of the fan.
- Page 17 LIMITED LIFETIME WARRANTY MATTHEWS-GERBAR, LTD. DBA MATTHEWS FAN COMPANY LIFETIME LIMITED WARRANTY. warranted by Matthews-Gerbar, Ltd. to the original user against defects in workmanship or materials under normal use and inside or outside damp location installation for: Motors: Lifetime of original purchaser: Labor &...
