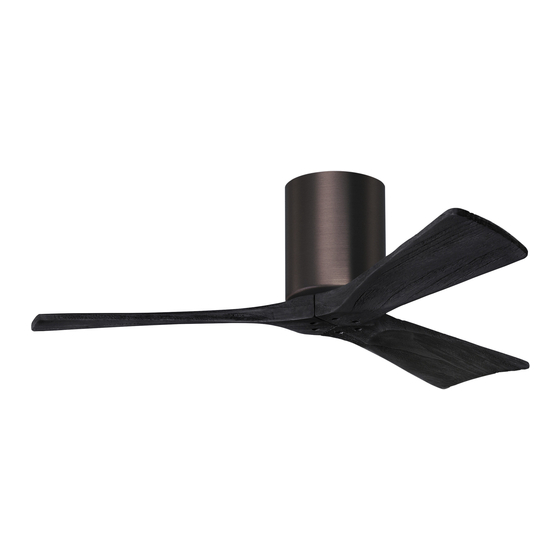

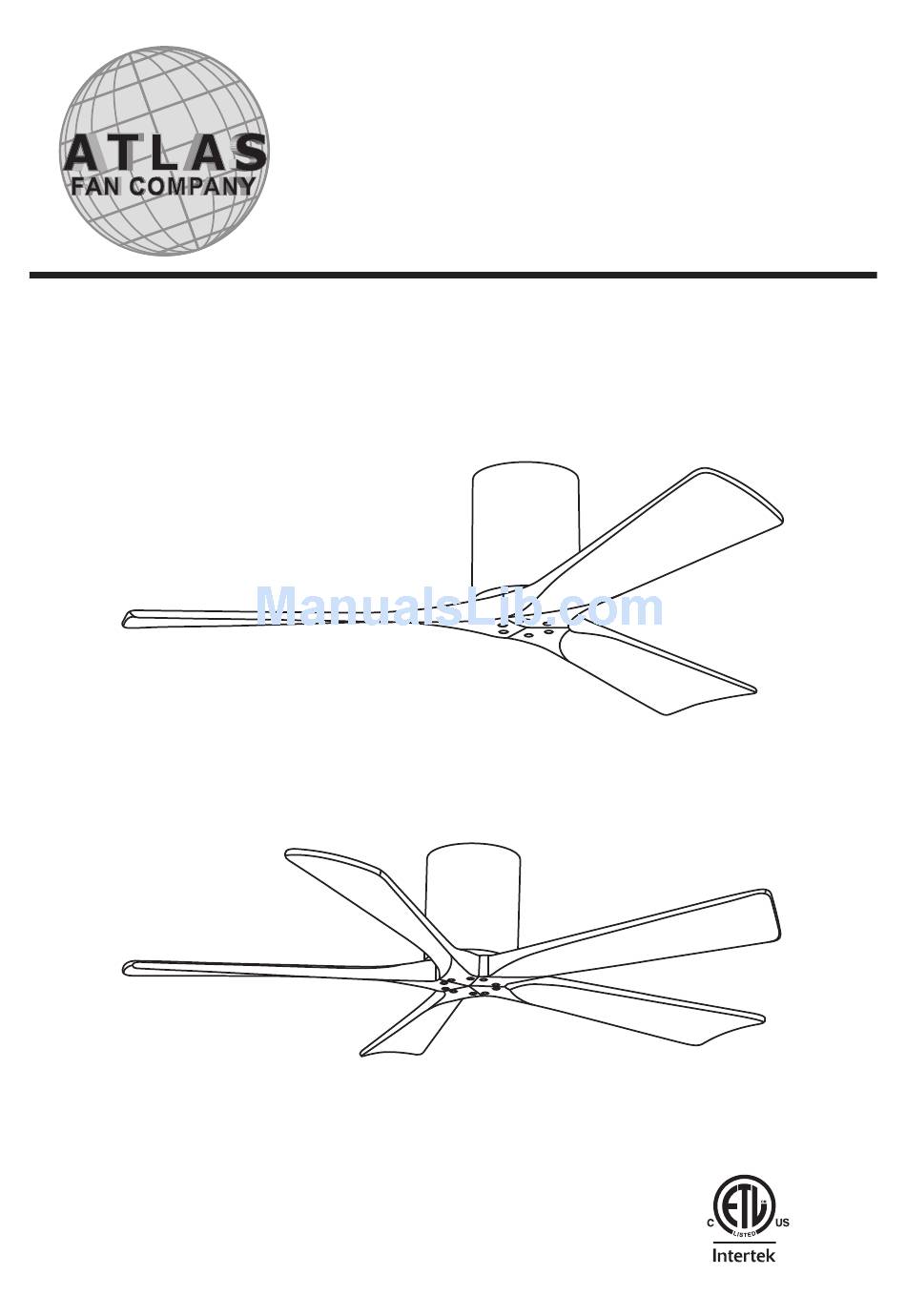

- Page 1 Irene-H 52" or 42" CEILING FAN READ AND SAVE THESE INSTRUCTIONS Irene-3H Irene-5H FAN RATING AC 120V. 60Hz Please do not use any electric or battery powered tools in the assembly and installation of this or any Matthews Fan Company product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Tools and Materials Required..................Package Contents ......................Safety Rules........................Mounting Options......................Hanging the Fan ......................Make the Electric Connections..................Finishing the Installation....................Attaching the Fan Blades....................Operating the Remote Control..................Operating Your Fan ....................... Care of Your Fan......................Troubleshooting...................... -
Page 3: Tools And Materials Required
Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a-1. Blade set (3) (for Irene-3H) a-2. Blade set (5) (for Irene-5H) Mounting bracket (preassembled with fan motor assembly) Fan motor assembly... -
Page 4: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. To avoid personal injury or damage to the fan electricity has been turned off at the circuit and other items, be cautious when working breaker or fuse box before beginning. around or cleaning the fan. -
Page 5: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. Use appropriate fasteners and building materials. -
Page 6: Hanging The Fan
5. HANGING THE FAN Outlet box REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1. Disassemble the mounting bracket from the fan motor assembly. Washers Mounting bracket Step 2. Attach the mounting bracket to the outlet Screws box using the two screws and washers provided with the outlet box. -
Page 7: Make The Electric Connections
6. MAKE THE ELECTRIC Outlet box CONNECTIONS White ("AC IN N") Green or bare Black ("AC IN L") Remember to disconnect the power. Follow the copper (ground) steps below to connect the fan to your Ground (green) household wiring. Use the wire connecting nuts Black (motor) (Connect to ground wire supplied with your fan. -
Page 8: Finishing The Installation
7. FINISHING THE INSTALLATION Step 1. Move fan motor into position over the Safety cable four mounting holes and secure with the four screws provided. (Fig. 7) Step 2. An additional safety support is provided Motor to prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer. -
Page 9: Attaching The Fan Blades
NOTE: This fan is supplied with two types of Blade blades for installation. Follow the step below to installing your fan blade properly. The inner holes are for 3 blades. (for Irene-3H) The outer holes are for 5 blades. (for Irene-5H) Screw Figure 9... -
Page 10: Operating The Remote Control
9. PROGRAMMING YOUR FAN AND OPERATING THE REMOTE CONTROL Your DC brushless motor is equipped with a automatically learned type remote control. Install one 23A/12V battery (included). To prevent damage to transmitter, remove the battery if not used for long periods of time (Fig. 10) ON ECE 1 2 3 4 Restore power to ceiling fan and test for proper... -
Page 11: Operating Your Fan
NOTE: During self calibration test, the remote is non-fuctional. NOTE: The learning frequency function and self calibration test will continue to retain the last set frequency and calibration set even when the AC power is shut off. If the frequency is changed the self calibration test will occur again. -
Page 12: Care Of Your Fan
11. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2. - Page 13 LIMITED LIFETIME WARRANTY MATTHEWS-GERBAR, LTD. DBA MATTHEWS FAN COMPANY LIFETIME LIMITED WARRANTY. Ceiling fans are warranted by Matthews-Gerbar, Ltd. to the original user against defects in workmanship or materials under normal use and inside installation for: Motors: Lifetime of original purchaser: Labor & Component parts: (lights, finish, blades, etc…): one year after date of purchase, Light Bulbs: no warranty.
