READ AND SAVE THESE INSTRUCTIONS
QUICK ASSEMBLY NOTES:
* Do not wire in fan while house wires are Live. Turn power off at breaker before installation
begins.
* Do not use any controls, wall or remote, other than those provided by Matthews Fan Company.
* Please do not use any electric or battery powered tools in the assembly and installation of this
or any other Matthews Fan Company product.

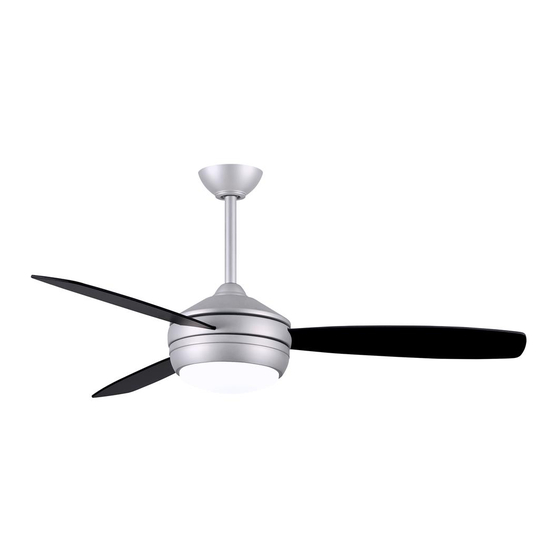

T24
52" CEILING FAN
FAN RATING AC 120V. 60Hz
For Damp Location
Advertisement
Table of Contents
Related Manuals for Atlas fan company T24
Summary of Contents for Atlas fan company T24
- Page 1 52" CEILING FAN READ AND SAVE THESE INSTRUCTIONS FAN RATING AC 120V. 60Hz For Damp Location QUICK ASSEMBLY NOTES: * Do not wire in fan while house wires are Live. Turn power off at breaker before installation begins. * Do not use any controls, wall or remote, other than those provided by Matthews Fan Company. * Please do not use any electric or battery powered tools in the assembly and installation of this or any other Matthews Fan Company product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Tools and Materials Required..................2. Package Contents ...................... 3. Safety Rules....................... 4. Mounting 5.Options..................... 5. Hanging the Fan ......................6. Make the Electric Connections................... 7. Installing the Wall Switch.................... 8. Finishing the Installation..................... 9. Attaching the Fan Blades.................... 10.Attaching the Mounting Plate.................. -
Page 3: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Blade set (3) Hanger bracket assembly Ball / down rod assembly Coupling cover Fan motor assembly Mounting plate... -
Page 4: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. To avoid personal injury or damage to the fan electricity has been turned off at the circuit and other items, be cautious when working breaker or fuse box before beginning. around or cleaning the fan. -
Page 5: Mounting 5.Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 6: Hanging The Fan
5. HANGING THE FAN Ceiling hanger REMEMBER to turn off the power. Follow the steps bracket below to hang your fan properly. Ceiling canopy 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. -
Page 7: Make The Electric Connections
6. MAKE THE ELECTRIC Outlet box (Wall) Switch CONNECTIONS Wall plate WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. NOTE: Installation of this fan requires that a three-conductor cable with ground wire be run between ceiling and wall outlet box, or the light feature will not work. -
Page 8: Installing The Wall Switch
7. INSTALLING THE WALL SWITCH 1. Remove the existing wall plate and the old switch from the wall outlet box. 2. Carefully tuck the wire connections inside the outlet box. Secure the wall control with the two wall switch screws provided. (Fig. 12) 3. -
Page 9: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES 1. Fasten blade to motor using the flat washers, lock washers and screws supplied. (Fig. 14) 2. Repeat process with other blades. Tighten each screw and make sure the blade is straight. Blade Flat washers Lock washers Screw Figure 14... -
Page 10: Installing The Light Kit
11. INSTALLING THE LIGHT REMEMBER: To disconnect the power. 1. Remove 1 of 3 screws from the mounting plate and loosen the other 2 screws. (Do not remove) 2. Raise and hold the LED light kit close to the mounting plate and proceed to do the wire connections. -
Page 11: Operating Instructions
12. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. The fan 4-speed control is used to set the fan speeds as follows: 0= Turns the fan off 1= High Speed 2= Medium Speed 3= Medium Low Speed 4= Low Speed “... -
Page 12: Care Of Your Fan
13. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2. -
Page 13: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. Fan is noisy. 1. - Page 14 LIMITED LIFETIME WARRANTY MATTHEWS-GERBAR, LTD. DBA MATTHEWS FAN COMPANY LIFETIME LIMITED WARRANTY. warranted by Matthews-Gerbar, Ltd. to the original user against defects in workmanship or materials under normal use and inside or outside damp location installation for: Motors: Lifetime of original purchaser: Labor &...
