6.2

EXTERNAL BATTERY EXTENSION

To achieve longer backup time, it is possible to connect multi-battery
packs. Connect exclusively the following products together
Protect C.1000 with Protect C.1000 BP
Protect C.2000 with Protect C.2030 BP
Protect C.3000 with Protect C.2030 BP
Protect C with 1 battery extension

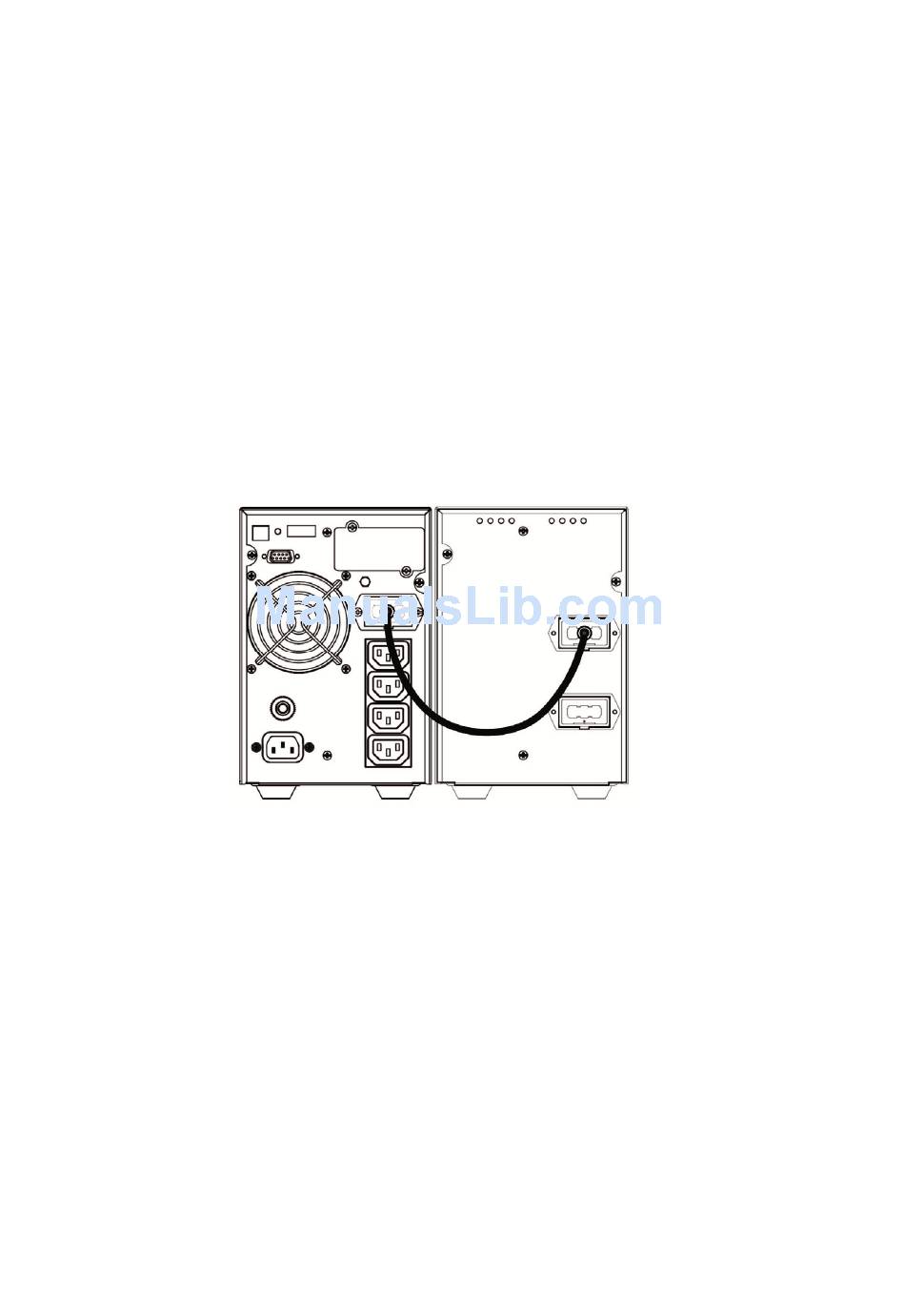

Fig.: Protect C.1000 and Protect C.1000 BP
1. Check the correct fit of the UPS and the battery unit (the
casings e.g. have to have the same dimension).
2. Now connect both battery connectors using the supplied
battery connection cable. When connecting, make sure that
you push the plug quickly and firmly in the battery connectors.
Fix the connector parts concluding with the screws on the
side.
3. Change the menu item "Settings" under "External Battery
Modules" to the number <1> (see page 105).
89
