5. Data Connections
Each RAID Controller module has two FC SFP interfaces
and can be connected to up to two independent Host Bus
adapters or switch ports. A typical configuration is shown
below (Figure 4).

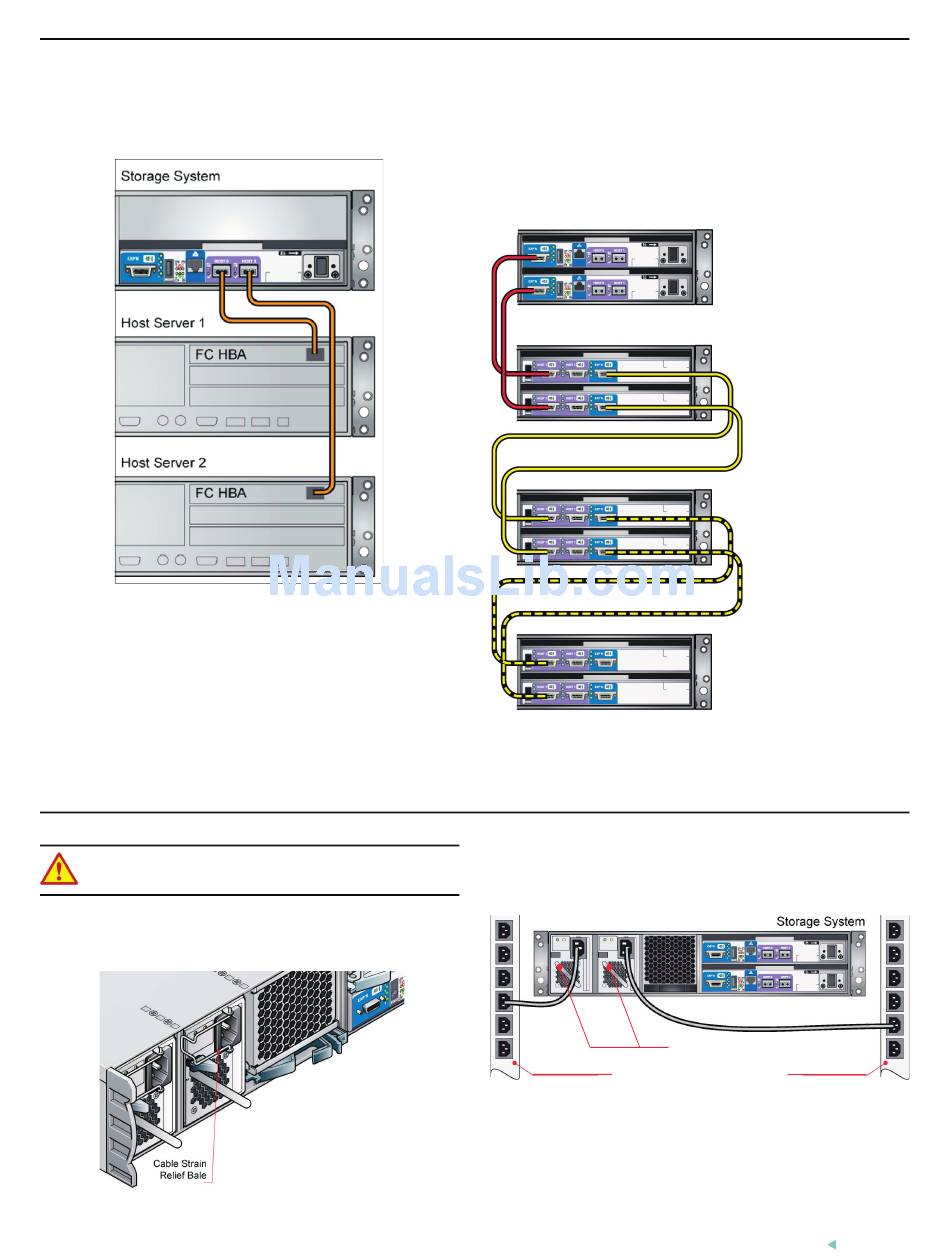

Figure 4. Dual Host, Single HBA, and Single Controller
NOTE: See the ULTAMUS RAID 1200 Setup Guide for more
configuration options.
Additional ULTAMUS RAID 1200x expansion arrays can
be connected to the main appliance. Multiple arrays are
connected together using SAS patch cables. A maximum of
6. Power On
WARNING: Before applying power, carry out the
grounding checks.
1. Lift the bale up
(Figure
place the bale over and onto the cord.
Figure 6. Cable Strain Relief Bale Locations
Part Number 10400049-102 07/2007
6), insert the power cord, and
©2007 Overland Storage, Inc.
four expansion arrays can be connected to the ULTAMUS
RAID 1200 storage appliance. A typical configuration is
shown in Figure 5. Refer to the ULTAMUS RAID 1200
Setup Guide for more options.
NOTE: The Expansion port connects to the Host port on the next
expansion chassis in a multiple chassis configuration.
Figure 5. Connecting The Expansion Enclosure
2. Run the power cords over to the Power Distribution
Units (PDU) in the rack or another power source
(Figure 7).
Power Supply Modules (PSU)
Rack Power Distribution Units (PDU)
Figure 7. Connecting the AC Power
3. Power on the storage system by connecting cables to
external PDU or powering on the PDU.
4. Power the host system.
ULTAMUS RAID 1200
ULTAMUS RAID 1200X
ULTAMUS RAID 1200X
ULTAMUS RAID 1200X
