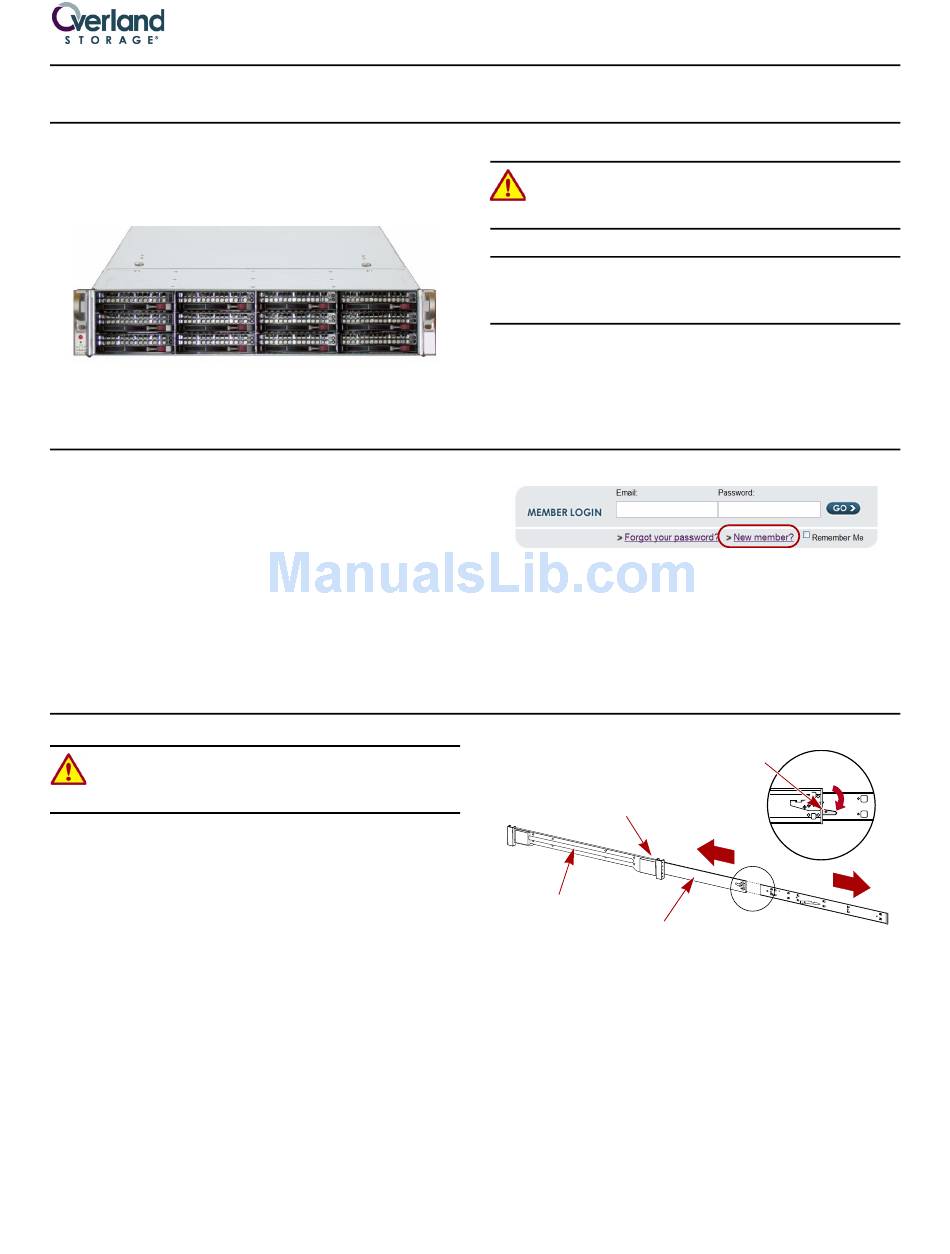

Overland Storage REO 4600 Quick Start Manual

This document describes how to unpack and install an
Overland REO 4600 appliance into a standard RETMA 19"
rack. Each unit has a 2U form factor.
First Things First—Activate Your Warranty!
Before installing your new unit, it is essential that you
activate your Overland warranty. Technical and warranty
support are not available until this is done:
1. Go to the Overland Technical Support web site at:
http://support.overlandstorage.com/
2. At the MEMBER LOGIN
NOTE: If you are not yet a member, click the New member?
link and follow the instructions. It's free and easy!

Rack Installation

WARNING: Install multiple units from the bottom up.
Extending a unit out of a rack that has empty spaces
beneath it might cause the rack to tip over.
The rail kit included with the expansion unit is adaptable
for installation in the major types of hardware racks:
• Squared-holed RETMA rack
• Round-holed RETMA rack
• Round/Threaded-holed RETMA rack
NOTE: The two-post telco-style rack or a rack less than 32-
inches in depth will not support the expansion unit.
The rails are not universal. They are stamped LH (left)
and RH (right) and must be mounted on the appropriate
side (when facing the rack front).

Attach Inner Rails to Chassis

This procedure is required for all rack types:
1. Fully extend the rails, push the latch on the inner
member down, and remove the inner rail
Release and slide the middle member back in.
Part Number 10400252-101 01/2010
Quick Start Guide
(Figure 1), log in to the site.
(Figure 2).
©2010 Overland Storage, Inc.
WARNING: To reduce the risk of electric shock or
damage to equipment, always remove the power cords
while installing or working on the appliance.
CAUTION: While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent
damage to micro-circuitry or static-sensitive devices.
NOTE: When using the round-hole rail adapters, the collapsed
rails are only 28 in. (71cm) minimum instead of 26 in. (66cm).
Figure 1. MEMBER LOGIN Section
3. At the Support Home page menu on the left, select My
Products > Add or Register a Product.
4. Fill in the information and click Submit.
Inner Member Latch
Middle Member Latch
(Hidden)
Outer Member
Middle Member
Figure 2. Inner Rail Release Latch
2. Identify and mark the screw holes on the rack where
the sliding rails will be installed.
NOTE: Be sure rear holes are horizontally in line with the
front holes to assure the unit remains level.
3. Attach the right inner rail
follows:
a. Position the rail against the expansion unit with the
locking tabs going through the holes on the rail.
b. Slide the rail toward the front to lock it.
c. Secure the rail with a screw.
REO 4600
(Figure 3 on page 2) as
Page 1 of 4
