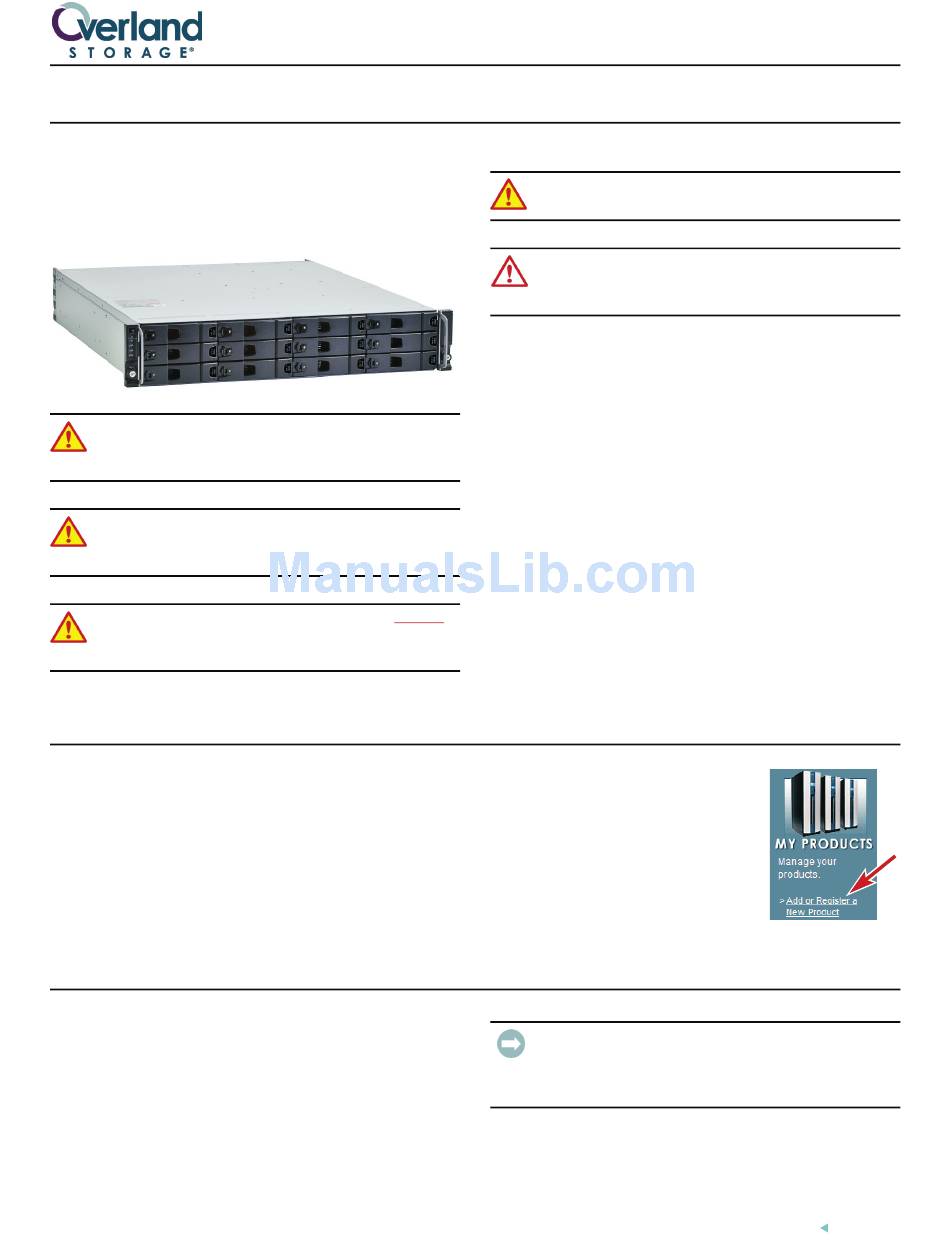

This document describes how to unpack and install an
ULTAMUS RAID 1200 Storage Array or 1200x Expansion
Array into a standard RETMA 19" rack. Each appliance
has a 2U form factor.
WARNING: Unplug the AC power and network
connections if you think that the unit has become
damaged in any way, or before you move it.
WARNING: Use care inserting or removing an
ULTAMUS array into or out of a rack to prevent tipping
of the unit causing damage or personal injury.
WARNING: Due to the weight of the array, it is strongly
recommended that at least two people be used to lift
the unit out of the box to prevent injury.
1. Activate Your Warranty
Before installing your new array, it is essential that you
activate your ULTAMUS warranty. Technical and
warranty support are not available until this is done.
1. Go to the Overland Technical Support website at:
http://support.overlandstorage.com/
2. Using the MEMBER LOGIN E-mail and Password
fields, log in to the site.
2. Preparation of Site and Host Server
Before you begin, make sure that the site where you
intend to use your storage system has the following:
• Host computer with a standard Fibre Channel (FC)
HBA with the latest BIOS and drivers. Follow the
instructions provided with your host bus adapter.
Install the HBA and its driver software, if necessary.
• Standard AC power from an independent source or a
rack power distribution unit with a UPS.
Part Number 10400049-102 07/2007

Quick Start Guide

©2007 Overland Storage, Inc.
ULTAMUS™ RAID 1200\1200x
WARNING: Do not remove covers from the Power
Supply module. Danger of electric shock inside.
CAUTION:
All plug-in modules and blank plates are part
of the enclosure and the system must not be run without
all modules in place.

European Regulations

This equipment complies with European Regulations EN
55022 Class A: Limits and Methods of Measurement of
Radio Disturbance Characteristics of Information
Technology Equipment and EN50082-1: Genetic
Immunity.
USA Federal Communications Commission
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the Federal Communications Commission (FCC) rules.

Electrostatic Discharge Information

A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. To help prevent Electrostatic
Discharge (ESD), observe standard ESD precautions.
NOTE:
If you are not yet a member,
click the SIGN UP NOW button and
follow the instructions to become a
member. It's free!
3. Under MY PRODUCTS, click Add
or Register a New Product and
follow the on-screen instructions.
IMPORTANT: For Microsoft Windows Servers—Insert the
ULTAMUS RAID 1200 Software and Documentation CD,
click the "ULTAMUS RAID 1200 Driver for Windows" link, and
follow the on-screen instructions.
Page 1 of 4
