Summary of Contents for Sebury F007EM-II

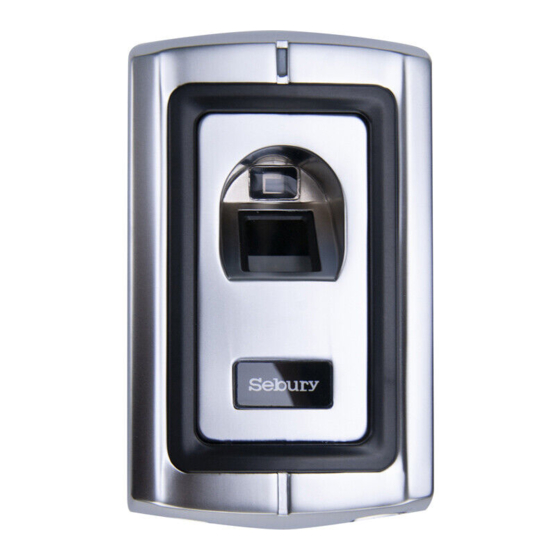

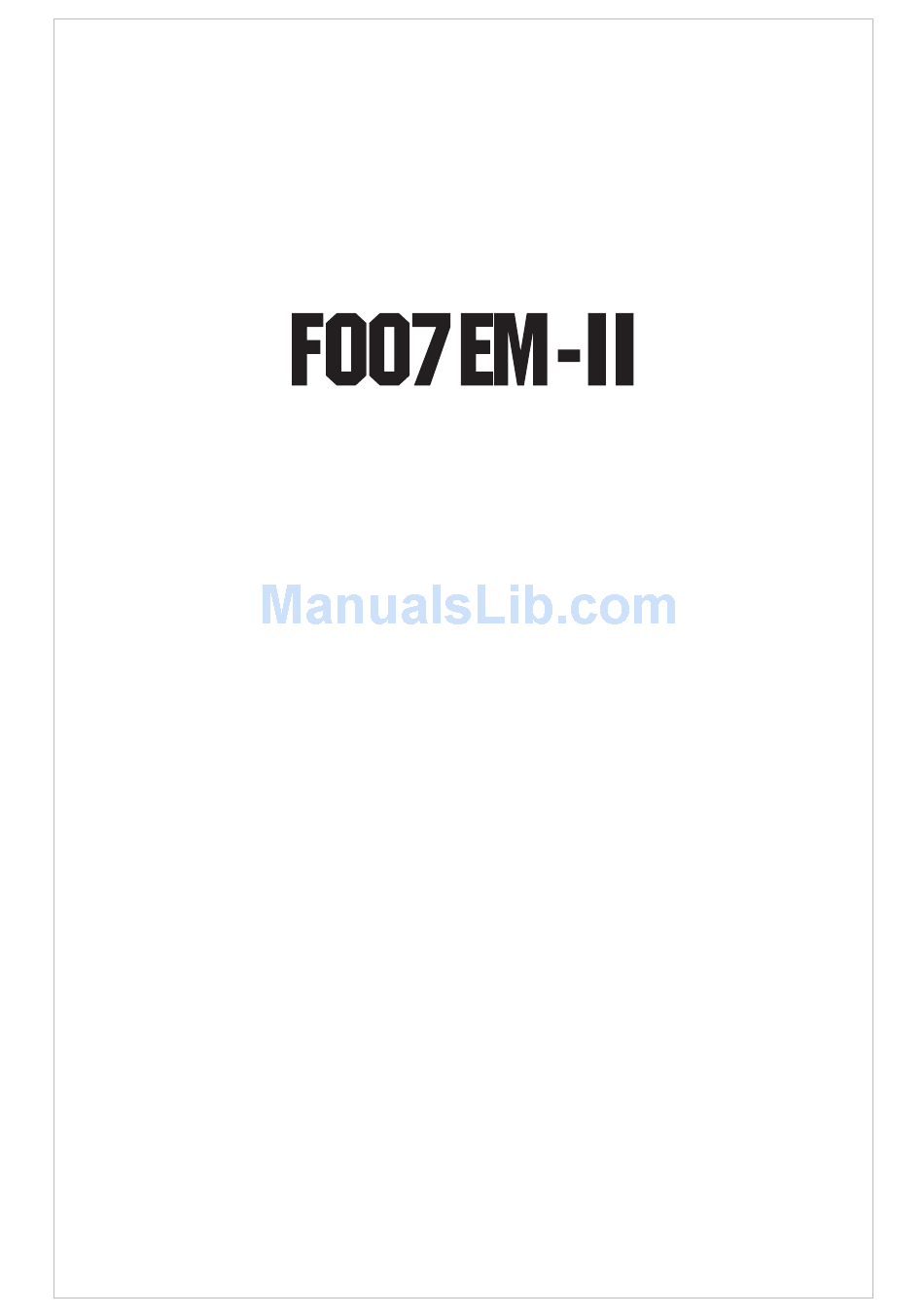

- Page 1 Fingerprint & RFID Access Control User Manual...
-
Page 2: Table Of Contents
8.1 User to Release the Door 8.2 Remove Alarm 9. Advanced Application 9.1 F007EM-II works as slave reader, connecting to Controller 9. 2 F007EM-II works as Controller, connecting slave reader 9.3 Two F007EM-II interconnected-single door 9.4 Two F007EM-II interconnected & interlocked-two doors 10. -
Page 3: Packing List
> Standalone or Wiegand reader mode > Adjustable door output time, alarm time, door open time > Anti-magnetic & lock output current short protect > 2pcs F007EM-II can be interconnected; 2pcs F007EM-II can be interlocked > Red, yellow and green LED display the working status... -
Page 4: Installation
4. Installation > Remove the back cover from the device using the supplied security screwdriver > Drill 4 holes on the wall for the screws and 1 hole for the cable > Fix the back cover firmly on the wall with 4 flat head screws >... -
Page 5: Wiring
5. Wiring Description Color Function Orange L+/Alarm+ Lock Positive/Alarm Positive Purple Lock Negative Request to Exit Button & Door Contact Blue (-) Negative Regulated Power Input Black (+) 12V DC Positive Regulated Power Input +12V Brown D-IN Door Contact Request to Exit Button Yellow OPEN Grey... -
Page 6: Special Power Supply
Orange Orange EM Lock Purple Purple Black 6.2 Special Power Supply Orange ALARM+ Purple PUSH Black +12V +12V Grey ALARM- Alarm Black Blue Electric Bolt Door Contact Brown D_IN Yellow OPEN Exit Button White Green Electric Control Black Lock EM Lock... -
Page 7: Manager Operation
7. Manager Operation There are 3 ways to add and delete users: 1, by Manager Card ; 2, by remote Control ; 3, by Manager Fingerprint 7.1 By Manager Card (the most convenient way) Add Fingerprint User Manager add card Enter 1 User Fingerprint Twice 2 User Fingerprint Twice …... - Page 8 Add Users a) ID number Auto generation To add fingerprint users: 1 input one fingerprint twice # (To add more than one fingerprints, just input finger continuously) To add card users: 1 Card # Or 1 Card Number (8 digits) # (To add more than one card, just input cards or card number continuously) Note: when add card users, it can just enroll the card number and...
-
Page 9: 3 . By Manager Fingerprint
If Delete Users by ID 2 user ID # Remarks: When delete users, the Master can just delete its ID number and don't have to input fingerprint or card. It is the good option to delete if the users were left or cards lost. To Save and Exit from the programming mode 7 3 . -
Page 10: Delete All The Users
7.5 Setting - Facility Code Setting - Facility Code 3 0 255 This operation might be required when F007EM-II is acting as Wiegand reader and connecting to multi-door controller. 7.6 Setting - Lock style and door relay time Setting - Lock style and door relay time... -
Page 11: Setting - Door Open Detection
7.7 Setting - Door open detection Setting - Door open detection Master Code to disable this function (factory default setting) 6 1 # to enable this function When enable this function: a)If open the door normally, but not closed after 1 minute, the inside Buzzer will alarm automatically, the alarm will be off itself after 1 minute b)If the door was opened force, or the door was not opened in 120... -
Page 12: User Operation
(Any of the method above can remove the alarm) 9. Advanced Application 9.1 F007EM-II works as slave reader, connecting to Controller F007EM supports Wiegand output, it can be connected to the controller which support Wiegand 26 input as its slave reader, the connection... -
Page 13: F007Em-Ii Works As Controller, Connecting Slave Reader
9.3 Two F007EM-II Interconnected-Single Door Wiegand output, Wiegand input: The connection is showed as Figure 3. One F007EM-II installed inside the door, the other outside the door, two devices interconnect. Either device acts as the controller and reader at the same time. It has below feature:... -
Page 14: Two F007Em-Ii Interconnected & Interlocked-Two Doors
6000. Each user can use fingerprint or Code for access. 9.3.2 The setting of the two F007EM-II must be the same. If the master Code was set different, the user enrolled in the outdoor unit can't access from outside. -
Page 15: Reset To Factory Default
Lock 2 Orange Orange ALARM+ ALARM+ F007EM-II Controller 1 F007EM-II Controller 2 Figure 4 10. Reset to Factory Default Power off, press the RESET key (SW14) on the PCB, hold it and power on, release it until hear two short beeps, the LED shines in orange, then read any two EM cards, the LED will turn in red, means reset to factory default setting successfully. -
Page 16: Technical Specification
12. Technical Specification Input Voltage DC 12V±10% ≤20mA Idle Current ≤80mA Active Current Fingerprint: 1000 User Capacity Card: 2000 Card Type EM 125 KHz card Card Reading Distance 3~6 cm Operating Temperature -10℃-50℃ Operating Humidity 20 RH-95%RH Resolution 450 DPI Fingerprint Input Time <1S Identification Time...
