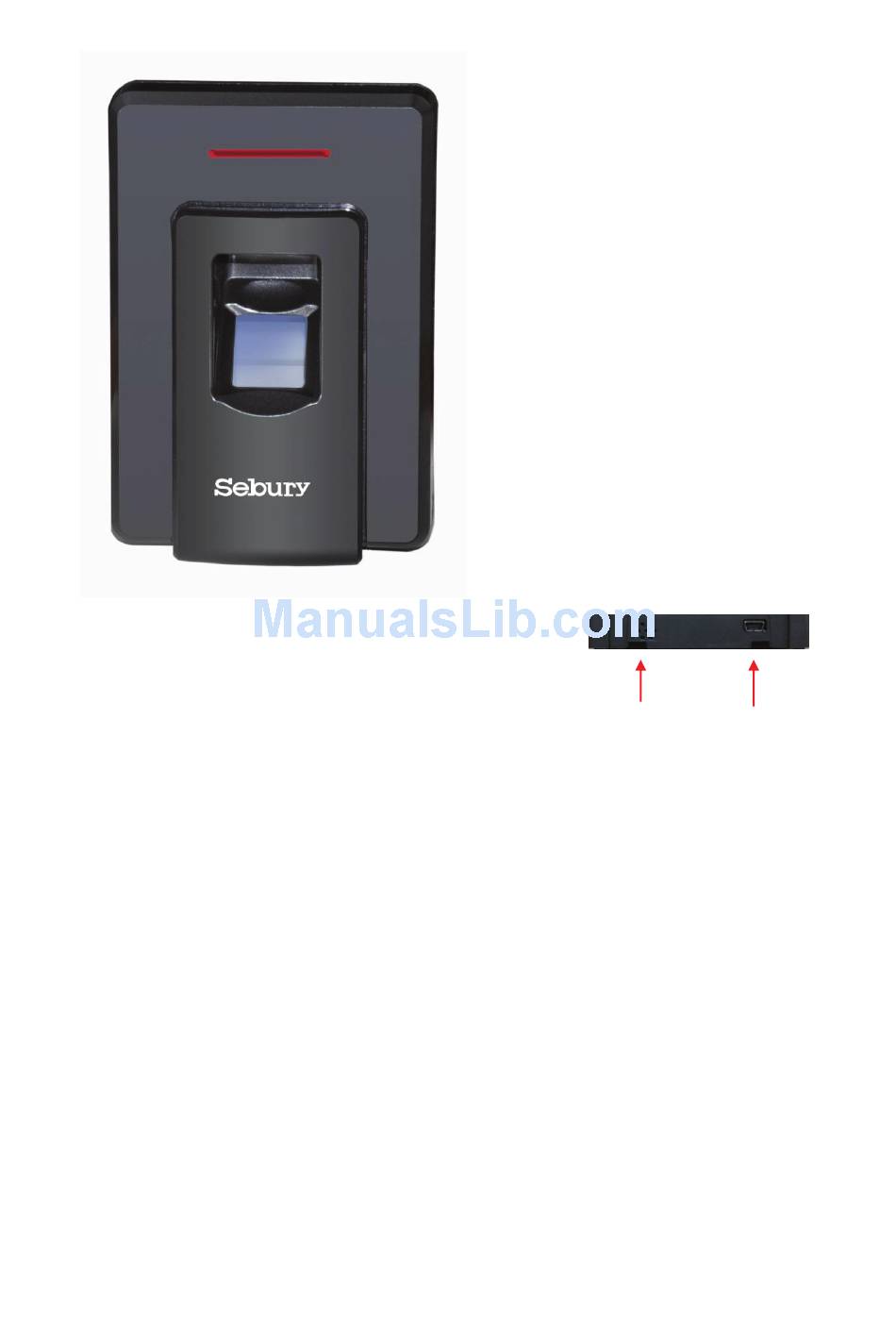

- Page 1 Buzzer MiniUSB F2- Fingerprint Access Control / Reader...
- Page 2 USB Cable 2. Descriptions F2 is a standalone fingerprint reader with exquisite & unique appearance and wiegand 26/34 output functions. The machine uses the most advanced fingerprint identification technology and very safe, which supports to open door by following three ways: fingerprint/card/fingerprint+card.
- Page 3 4. Specifications Item Parameters 32-bit RISC Core 120MHz 1MB FLASH 128K SRAM Sensor 500DPI optic sensor Cards EM 125KHz Capacity Fingerprint: 3,000; cards: 3,000 Each user can enroll 2 fingerprints & 1pc card ID number Wiegand26 output 1~16777215 ; Wiegand34 output 1~4294967295 “or”...
-
Page 4: Installation
5. Installation After connecting cable, mounting the device on wall 1). Pull the back plate shown below to open 2). With four screws to secure the appliance to the hole in the 4. 3). Connect the device to controller and computer according to the above definition. Note For device safety, please do setting the communication password before using. -
Page 5: Operation Introduction
Connection Diagram 7. Operation Introduction Connect device to PC (by USB or RS485), then to run software ARControl.exe (1). click “All Employee Info Management” to input employee information (ID, Name, Picture). (2). click “Device Management” to set device parameters, and add the device to system. (3). - Page 6 1). Run ARControl.exe Figure 1 Input software password (default: admin), after successful, it displays main interface Figure 2 2). To Set the password and language of software Click “File”→ select “Setting”, entering into software setting interface...
- Page 7 Figure 3...
- Page 8 Setting software password Input password and confirm setting. Setting language: Select “Chinese or English”, then click “Set”. 8.1.2 All Employee Info Management Click “All Employee Info Management” in the main interface Figure 4 To add new employee Input ID, name and picture (requires *.bmp) To modify employee information Select the employee to be modified, change the relevant information and click “Modify”.
- Page 9 Figure 5 1). To Add Device Device Name To set a name for the device. Device ID To input Device ID 1~255 , to make sure ID is unique for each one . Communication Mode USB or RS232/RS485. ComPort To design the RS232/RS485 COM PORT of PC. Baud Rate To set baud rate when choose RS232/RS485 for communication.
- Page 10 FP Time Out 0~60s can be set, default setting: 30s, used for enroll fingerprint: to detect if press fingerprint after command, time out will exit to enroll. For setting “0” means no time out for judging. Standby 0~60s, Device will enter into standby mode if without any operation during the setting time. The device will be activated if press a finger or a proximity card or there is communication command from PC.
- Page 11 5). Brightness Auto Adjust After long time using, the sensor backlight might lower down, which may lower the identify rate, in this case please adjust the lightness. Note Device has been set the auto brightness control, so no need to adjust all the time. Adjustment Method: To select device in the Device List, click “Brightness Auto Adjust”, after see “please screen sensor’s light”, cover the sensor windows with hand, click “OK”...
- Page 12 Figure 7 To Enroll fingerprint and card select user to be enrolled, click “Select” back to Employee Mange interface click “Enroll” to enter enroll interface Note One user can be enrolled with 2 fingerprints and 1pc card. If the user who was enrolled in the device needs to update the fingerprint or card, please tick the check box “Update”, otherwise the software will not allow enrolling for this user.
- Page 13 Click “FP0 Enroll” press one fingerprint, system hints “Uploading Image”→“Release your Finger” →“two more”→“release your finger”→“one more” →“release your finger” press three times to finish fingerprint enrollment. Click “FP1 Enroll” step same as above to enroll second fingerprint. B To Enroll card users Click “...
- Page 14 Figure 10 1). Upload To back up the fingerprint and card data from device to software database in PC. A. If the device is deleted by mistake: Click “from device to PC” in the Upload/Download (no need to select device):: Figure 11 After setting all the parameters, click “ok”...
- Page 15 Figure 12 Input device name, then Click “ok”, entering into “Upload/Download” interface The blue progress bar shows the uploading progress B. To Upload the fingerprint and card data to new software in PC To input all the employee information in “All Employee Info Management”, operated following the above step A to upload employee’s info in each device’s data to PC.
-
Page 16: Appendix One Application Information
3 database files to save. A1.2 Right pose of pressing finger APPENDIX TWO INSTALLATION AND CONNECTION A2.1 F2 Connection defination Red: Power supply input 9V 15V DC Black: Brown DATA0 Yellow: DATA1... - Page 17 White: RS485A Blue: RS485B...
