Summary of Contents for Sebury F007-EM

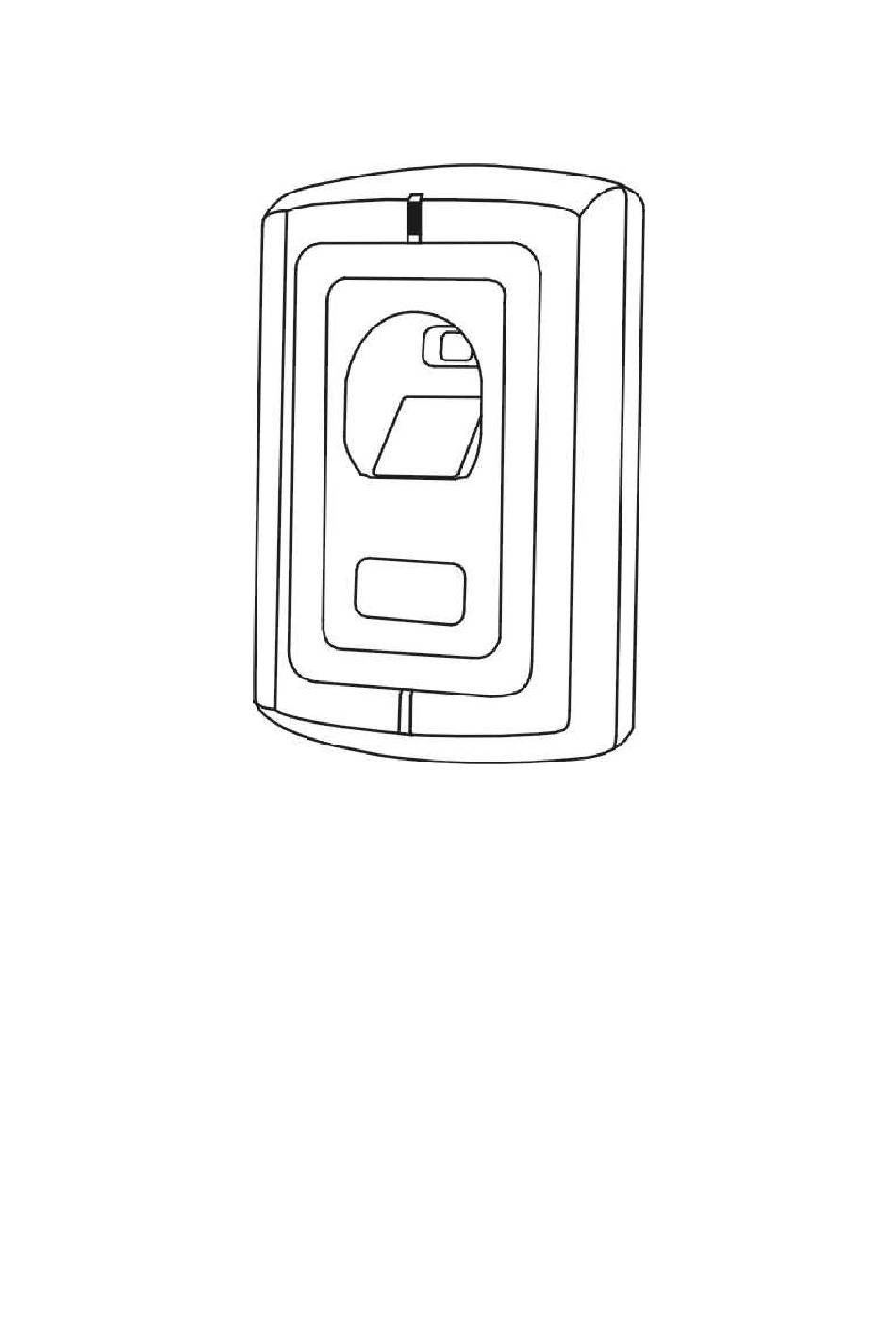

- Page 1 F007- - - - EM EM EM EM Fingerprint Fingerprint& RFID & RFID Access Controller Access Controller F007 F007 Fingerprint Fingerprint & RFID & RFID Access Controller Access Controller User Manual User Manual User Manual User Manual Sebury Technology Co.,Ltd...
- Page 2 F007-EM Simplified Instruction Function description Choose from the relevant functions below and input Enter the programming mode *- 888888 - #, then you can do the programming (888888 is the default factory master code) change the master code 0 - new code - # - repeat the new code - #...

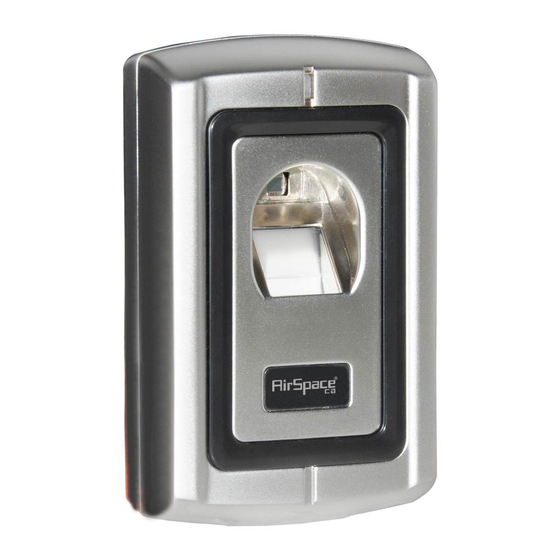

- Page 3 F007- EM Fingerprint& RFID Access Controller 1, Introduction F007-EM is the new member of F Series Standalone Fingerprint access control, as traditional it is in metal shell, anti-vandal, supports fingerprint, besides, F007-EM support RFID card (125KHZ EM card) and wiegand interface. The high security and more powerful feature make it an ideal choice for door access.
- Page 4 (+) 12Vdc Positive Regulated Power Input Black (-) Negative Regulated Power Input Blue the negative pole of the controller, connect to the other part of Exit button and door contact Purple Connect to the negative pole of the Lock L+/Alarm+ Orange Connect to the positive pole of the lock and alarm equipment Note: Do not power on until all wiring has been completed.
- Page 5 Remark: F007-EM can connect both types of the locks directly, no matter it’s Fail secure (unlock when power on) or Fail safe (unlock when power off). Please check Manager Operation – Item 5 for the lock setting. 4, Manager Operation There are 3 ways to add and delete users: 1, by Manager card;...
- Page 6 Manager Password # . Default Manager Password: 888888 Remarks: All the steps below must be done after enter into programming mode. 2.1 Change Manager Password： ： ： ： New Password # Repeat New Password # Remark：The manager password must be 6～8 digit number. 2.2 Add Users：...
- Page 7 Manager Password Add Manager fingerprint: ＃ ＃ input fingerprint twice 2 input another fingerprint twice ID number 1: Manager add fingerprint ID number 2: Manager delete fingerprint The first Fingerprint: Manager add Fingerprint, it is to add the users The second Fingerprint: Manager delete Fingerprint, it is to delete users .
- Page 8 If the door was opened force, or the door was not opened in 20 seconds after lock was released, the inside Buzzer and outside Siren will both alarm. Setting - Security Status manager password # Normal status: 7 # * (Factory default setting) Lock on status: 7 # *In 10 minutes, if there’s 10 times invalid card or wrong Password, the device will lock on for 10 minutes.
- Page 9 9, Two devices interconnected Function 1, F007-EM works as slave reader, connecting to Controller F007-EM supports wiegand output, it can be connected to the controller which support wiegand 26 input as its slave reader, the connection diagram is as figure 1...
- Page 10 2, F007-EM works as Controller, connecting slave reader F007-EM supports wiegand input, any card reader which support wiegand 26 interface can connect to it as its slave reader, no matter it is ID card or IC card. The connection is showed as Finger 2.
- Page 11 In this situation the user capacity for one door can be up to 4320. Each user can use fingerprint or password for access. 2.2 The setting of the two F007-EM must be the same. If the master password was set different, the user enrolled in the outdoor unit can’t access from outside.
