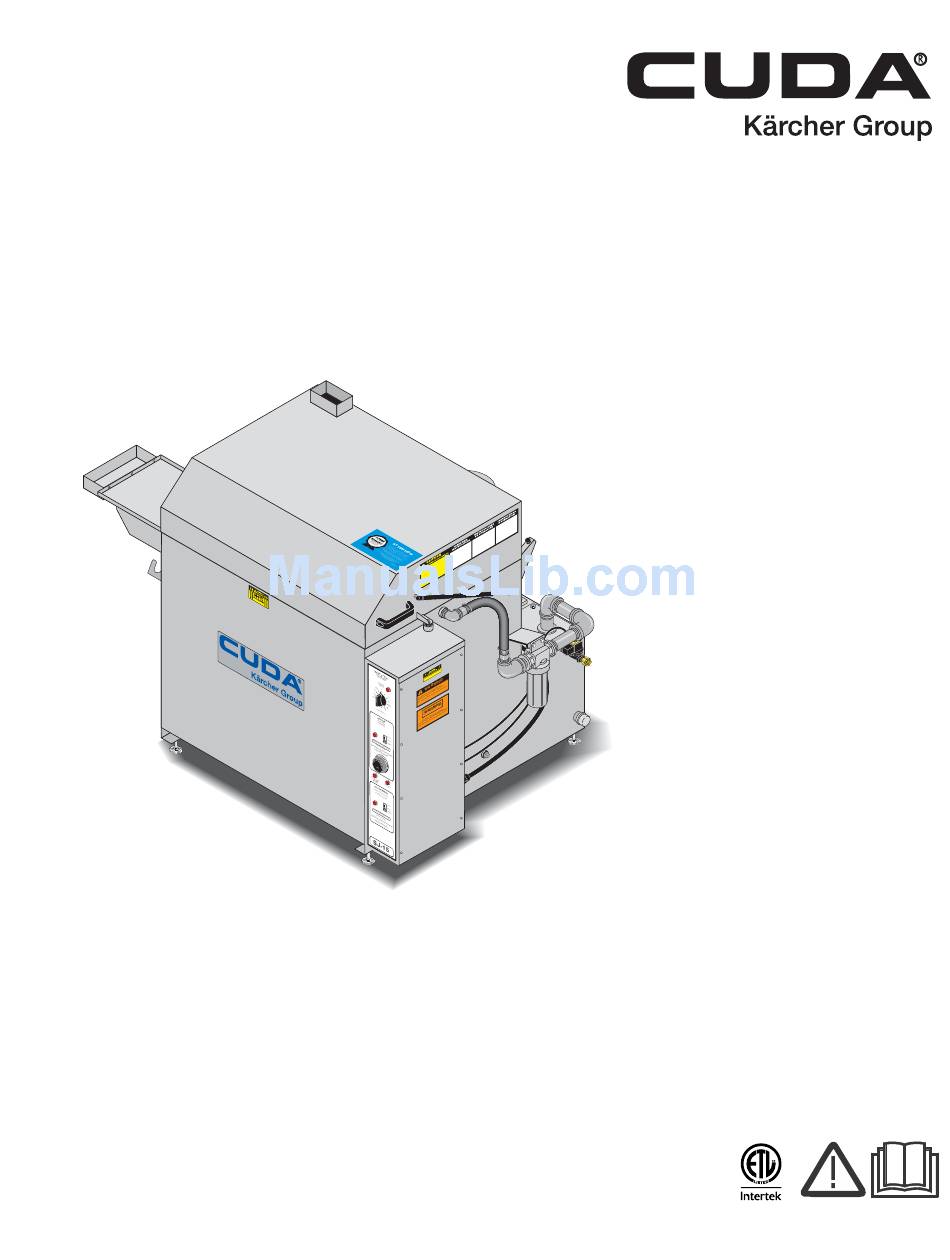

- Page 1 SJ-15 Series Operator’s Manual Automatic Parts Washer Top-Load MODELS: 1.043-458.0 1.043-459.0 1.043-460.0 1.043-461.0 1.043-462.0 1.043-463.0 For the Cuda Dealer nearest you, consult our web page at www.CudaUSA.com 9.801-128.0-H 05/23/17...
-
Page 2: Machine Data Label
Machine Data Label Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 3: Table Of Contents
Parts Cuda SJ - 15 ......20 Electrical Panel ......26 Oil Skimmer . -
Page 4: How To Use This Manual
KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts. NOTE: The manual part number is located on the lower right corner of the front cover. Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 5: Safety
SJ-15 Parts Washer. All information in this manual is based on the latest product information available at the time of printing. CUDA reserves the right to make changes at any time without incurring any obligation. Owner/User Responsibility: The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings... -
Page 6: General Safety Information
EYE WEAR, GLOVES AND FOOTWEAR be cleaned. WHEN OPERATING. 4. Never make adjustments on machine while it is in operation except those prescribed in this manual. Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 7: Electrical Safety
If in doubt, consult a licensed electri- cian. DANGER: Only connect the equipment to a dedicated circuit with no other equipment on it. Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 8: Operations
240 Volts 480 Volts Kw Rating Output KW of Heater When Operated On of Heater Volts Volts Volts Volts Volts Volts Volts 3.78 4.13 3.38 3.78 4.14 3.78 4.14 4.20 4.59 6.30 6.89 Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... - Page 9 Kilowatt Hours to Heat Water Amount of Liquid Temperature Rise °F 20° 40° 60° 80° 100° 120° 140° Cu.Ft. Gal. Kilowatts to heat in one hour 10.7 12.8 11.2 10.7 12.0 14.5 13.4 16.7 Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
-
Page 10: Component Identification
Operations Component Identification Parts Basket Water Tank Wash Timer Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 11: Installation
Electrical ......Refer to Serial Plate located on rear of electrical box Cabinet Dimensions ... SJ-15: 48” W x 49” H x 46” D (121.92 cm x 124.46 cm x 116.84 cm) Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 12: Pre-Start Checklist
Fill until low water light goes out. NOTE: Detergent must be thoroughly mixed before adding to tank. To ensure detergent mixes properly and does not foam, make sure machine is up to operating temperature before adding any detergent. Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 13: Maintenance
The spin pin o-rings should be replaced annually. Filters With the tank empty, clean the suction pump strainer. Clean when pressure gauge reads a 10 PSI decrease from start up pressure. Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 14: Options
Assy. Gauge 8.725-276.0 9.804-631.0 Waste Water Drum Evaporator Automatic 8.707-034.0 Water Fill 8.725-284.0 Oil Decanter Bucket 8.913-702.0 Mild Steel Temperature Gauge 8.712-156.0 Timer (Reversed View) 8.725-283.0 Hour Meter 9.802-283.0 Caster Wheels 8.725-280.0 Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 15: Automatic Water Fill
Tool and align the other spin pin as described in step 2. Spin Pin Spin Pin 4. The alignment tool should move freely from one spin pin onto the other spin pin. Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 16: Troubleshooting
See wiring instructions. AND OVERLOAD Check lid safety switch for proper depres- KICKS OFF Pump cycles too frequently sion. Readjust if needed for proper opera- tion. Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... - Page 17 No power to parts washer Check circuit breaker supplying power to washer. VOLTAGE Fuse blown on transformer Replace fuse. LIGHT FAILS TO COME ON Transformer defective Replace transformer Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
- Page 18 Notes Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
-
Page 19: Parts
Parts Parts CUDA SJ - 15 1.043-458.0, 1.043-459.0, 1.043-460.0, 1.043-461.0, 1.043-462.0, 1.043-463.0 Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... -
Page 20: Cuda Sj - 15
Cuda SJ - 15 Detail See View A-A Back of Tank Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... - Page 21 Cuda SJ - 15 For Detail See Oil View Skimmer Assy. Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
- Page 22 PUMP, 3HP 575V 3PH, VERTICAL SEALESS 1.043-461.0 9.804-119.0 SWITCH, MAGNETIC REED SENSOR, N.C. 9.804-118.0 SWITCH, MAGNETIC REED SENSOR, N.O. 8.712-132.0 FLOAT, 3 -1/2" BALL, SS 9.804-120.0 MAGNET, REED SENSOR TARGET 8.913-461.0 BASKET ASSY., SJ-15 Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
- Page 23 LABEL, CUDA, 24 X 6" 8.718-978.0 WASHER, SPLIT RING, SS 9.802-701.0 BOLT, 1/4" X 1" HEX 9.802-724.0 BOLT, 3/8" X 1-1/2" 8.718-906.0 NUT, 3/8" WING 8.915-731.0 PIPE, 1" BARBED, MALE W/1/4" TAB Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
- Page 24 CONDUIT, WATER TIGHT, FLEX 3/4" 9.802-448.0 48" CONDUIT, WATER TIGHT, FLEX 1/2" (1.043-461.0 ONLY) 9.802-790.0 NUT, 1/2" JEX NC 9.800-034.0 LABEL, CLEAR LEXAN 8.725-296.0 WASHER, BULLET HINGE, 8MM PIN BRASS 9.802-776.0 NUT, 5/16" ESNA Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
- Page 25 NUT, 10/32" ESNA 9.807-513.0 LABEL, CUDA APPROVED DETERGENT 8.718-978.0 WASHER, SPLIT RING, SS 9.802-698.0 SCREW, 10-32" X 1/2" SLOT PAN, MS 8.718-568.0 WASHER, 1/4" FLAT RUBBER BACK, SS 9.804-567.0 NUT, 10/32', ESNA Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
-
Page 26: Electrical Panel
8.750-864.0 CONTACTOR, 3 POLE 16 AMP 1.043-460.0 PUMP 8.750-864.0 CONTACTOR, 3 POLE 16 AMP 1.043-462.0 PUMP 8.750-864.0 CONTACTOR, 3 POLE 30 AMP 1.043-463.0 PUMP 8.750-866.0 CONTACTOR, 3 POLE 9 AMP 1.043-461.0 PUMP Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... - Page 27 1.043-460.0 HTR 8.713-529.0 FUSE, Class CC 8 AMP 1.043-461.0 HTR 8.714-451.0 FUSE -35 AMP 1.043-462.0 HTR 8.713-369.0 FUSE -25 AMP 1.043-463.0 HTR 8.713-086.0 GROUND, LUG 2, HOLE 9.804-140.0 DECAL, WARNING GRADE LEVEL Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
- Page 28 8.716-599.0 TERMINAL BLOCK, GREEN 8.716-396.0 TERMINAL BLOCK, GREY 9.804-295.0 THERMOSTAT 8.712-832.0 TIMER, 60 MIN, SPRING WOUND 8.716-254.0 TIMER, 7-DAY PIN, 120V 20 AMP 8.716-253.0 TIMER, SKIMMER, 24 HR (OPTION) 9.802-525.0 LOCKNUT 1/2" Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
- Page 29 FUSE BLOCK (C3P) 3-POLE 1.043-460.0 HTR 8.713-061.0 FUSE BLOCK (C3P) 3-POLE 1.043-461.0 HTR 8.714-132.0 FUSE BLOCK -60A 2-POLE 1.043-462.0 HTR 8.713-282.0 FUSE BLOCK -30A 3POLE 3-POLE 1.043-463.0 HTR 8.756-586.0 KNOB, TIMER, SPRING WOUND Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
-
Page 30: Oil Skimmer
Oil Skimmer 13,14 Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... - Page 31 STRAIN RELIEF 9.802-525.0 LOCKNUT 1/2" 8.913-751.0 OIL SKIMMER, LARGE 8.718-568.0 WASHER, 1/4" SEALING 9.802-791.0 NUT CAGE, 10/32 9.804-374.0 DECAL, KEEP DRY 9.800-016.0 LABEL, DISCONNECTED POWER 9.802-423.0 84" CORD 16/3 9.804-621.0 GASKET, SKIMMER Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
-
Page 32: Detail Brush
Detail Brush Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H... - Page 33 NIPPLE, 1/4" CLOSE FILTER, INLET 8.712-808.0 (MESH BALL 1/4" NPT 20 X 20 MESH) DETAIL PUMP 9.802-103.0 BUSHING, SNAP, 5/8" 8.711-785.0 16" HOSE, 3/8" PUSH-ON, /FT 8.718-568.0 WASHER, 1/4" FLAT SS SEALING RUB Cuda SJ-15 Series Operator’s Manual 9.801-128.0 - H...
- Page 34 9.801-128.0 • Printed in U.S.A.
