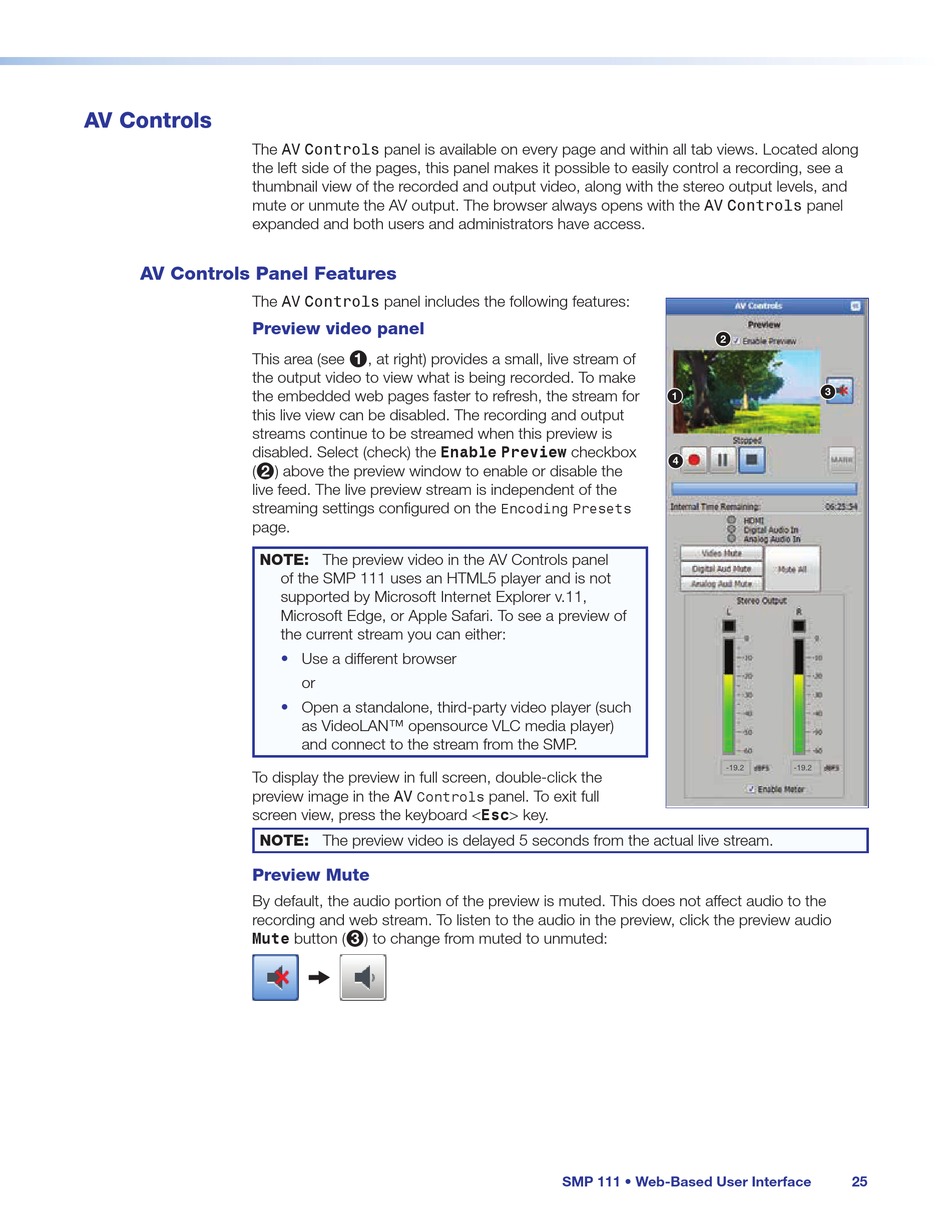

AV Controls

The AV Controls panel is available on every page and within all tab views. Located along
the left side of the pages, this panel makes it possible to easily control a recording, see a
thumbnail view of the recorded and output video, along with the stereo output levels, and
mute or unmute the AV output. The browser always opens with the AV Controls panel
expanded and both users and administrators have access.

AV Controls Panel Features

The AV Controls panel includes the following features:
Preview video panel
This area (see
the output video to view what is being recorded. To make
the embedded web pages faster to refresh, the stream for
this live view can be disabled. The recording and output
streams continue to be streamed when this preview is
disabled. Select (check) the Enable Preview checkbox
(
2
live feed. The live preview stream is independent of the
streaming settings configured on the
page.
NOTE: The preview video in the AV Controls panel
To display the preview in full screen, double-click the
preview image in the AV
screen view, press the keyboard <Esc> key.
NOTE: The preview video is delayed 5 seconds from the actual live stream.
Preview Mute
By default, the audio portion of the preview is muted. This does not affect audio to the
recording and web stream. To listen to the audio in the preview, click the preview audio
Mute button (
, at right) provides a small, live stream of
1
) above the preview window to enable or disable the
of the SMP 111 uses an HTML5 player and is not
supported by Microsoft Internet Explorer v.11,
Microsoft Edge, or Apple Safari. To see a preview of
the current stream you can either:
• Use a different browser
or
• Open a standalone, third-party video player (such
as VideoLAN™ opensource VLC media player)
and connect to the stream from the SMP.
Controls
) to change from muted to unmuted:
3
Encoding Presets
panel. To exit full
SMP 111 • Web-Based User Interface
