Extron electronics AVT 100N Specification Sheet

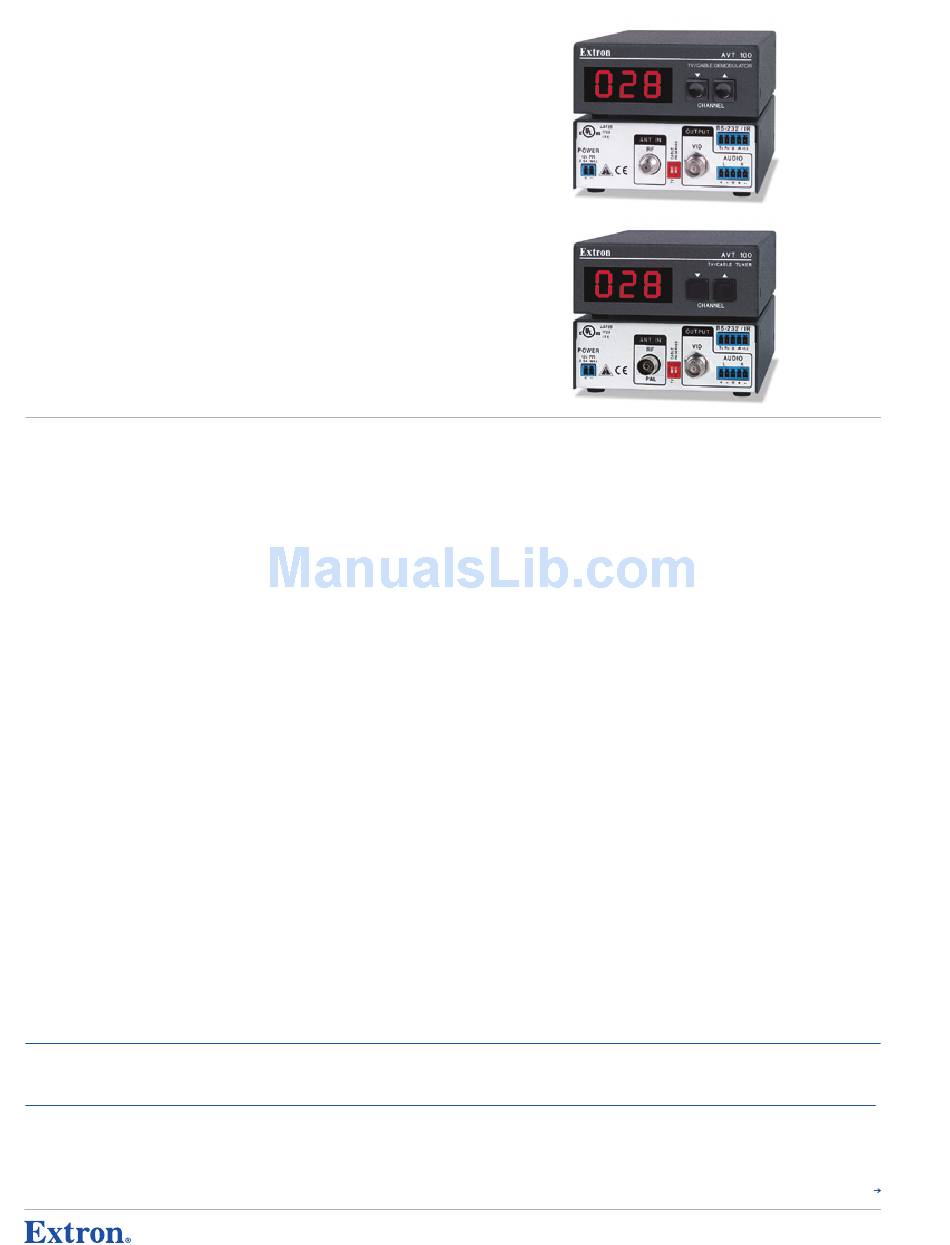

AVT 100N
NTSC Analog Closed Circuit TV Tuner
UniqUe FeatUres
NTSC compatible
•
AVT 100P
PAL Analog Closed Circuit TV Tuner
UniqUe FeatUres
PAL compatible
•
coMMon FeatUres
• High performance analog TV tuner for CCTV systems
• Input: One antenna/cable TV input connector
• Output: Composite video output on a BNC connector
• Balanced or unbalanced stereo audio output on captive screw connectors
• Front panel, RS-232, and modulated IR control
• Save and recall configuration files via RS-232
• Preset channel memories
• RS-232 serial control with Extron SIS
• Optional AVT 100 IR remote control, part # 70-366-01
• Back panel IR input for modulated IR
• Rack-mountable 1U, quarter rack width metal enclosure
• External universal power supply included, part # 70-055-01
Model
AVT 100N
AVT 100P
oPtional accessories
AVT Remote
IR Link
RSU 129
PMK 100
602
- Simple Instruction Set
™
version descriPtion
NTSC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Model descriPtion
Handheld IR Remote Control for AVT 100
Wall-Mountable IR Signal Repeater - Black
1U 9.5" Deep Universal Rack Shelf Kit
1/4 Rack Width Mini Projector Mount Kit
USA West USA West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
e n c o D e r S , D e c o D e r S , a n D T r a n S c o D e r S
descriPtion
The Extron AVT 100 is a compact, high performance analog cable and television demodulator
designed to provide maximum performance and control in professional A/V environments.
Primary applications include boardrooms, conference rooms, and classrooms. The AVT 100
can also be employed in large-area RF distribution systems in stadiums, arenas, and campus
CCTV systems.
Channels may be selected directly from the front panel, which includes a three-digit
alphanumeric display. Expanded control is available via RS-232 with Extron SIS
Instruction Set, as well as extended range IR operation with the optional IR remote.
The AVT 100 can be set for full or selective channel access. Configuration settings for channel
presets can be exported to a file and then uploaded to other units, saving installation time.
The AVT 100 is available in both NTSC and PAL versions, and is housed in a 1U, quarter rack
width metal enclosure.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
