  • Page 1 User Guide Tuners AVT 200HD ATSC and Cable TV HD Tuner 68-1834-01 Rev. A 05 11...
  • Page 2 Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and mainte- equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third nance (servicing) instructions in the literature provided with the equipment.
  • Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here: From the File menu, select Click the button. Copyright © 2011 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners.

  • Page 5: Table Of Contents

    Web ..........66 (Executive Modes) ..........31 Installing the Software from the Disc .... 67 Using the AVT 200HD IR Remote Control ..32 Starting the Software ........68 Installing batteries in the AVT 100 Remote ..33 Using the Configuration &...
  • Page 6 Subnet Mask ..........101 Pinging for the IP Address ......101 Connecting as a Telnet Client ...... 102 Subnetting — A Primer ....... 104 Frequency Tables ..........106 ATSC Frequency Table ......... 106 Cable Frequency Table......... 108 AVT 200HD Tuner • Contents...

  • Page 7: Introduction

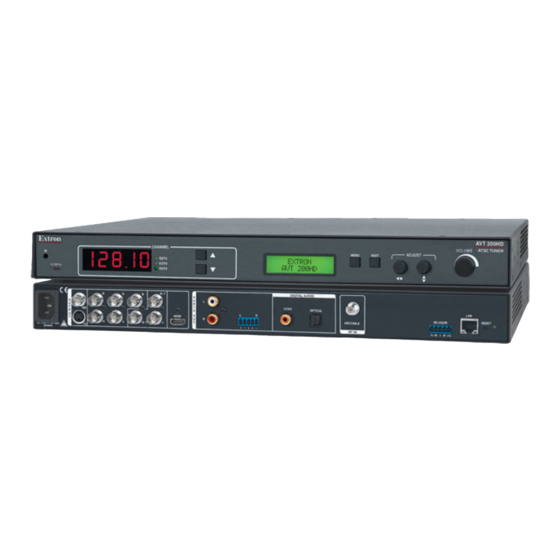

    Introduction This section gives an overview of the Extron AVT 200HD ATSC and Cable TV HD Tuner and describes its significant features. Topics include: • About this Guide • About the AVT 200HD Tuner Features • • Application Diagram About this Guide This guide contains information about the AVT 200HD tuner with instructions for experienced installers on how to install, configure, and operate the equipment.
  • Page 8 Rack-mountable — The AVT can be mounted on a standard 1U, 19-inch (full rack) wide metal rack shelf. • Optional IR remote control — The optional AVT 200HD IR Remote Control (part number 70-743-01) provides an additional method of controlling the tuner. Internal universal power supply — The internal 100-240 VAC, 50-60 Hz, •...

  • Page 9: Application Diagram

    XPA 1002 Flat Panel Display Power Ampli er IN PU R IE ™ IT CH O IN RI X W ID Extron CrossPoint Ultra Series Ultra-Wideband Matrix Switcher Figure 1. Application Diagram for the AVT 200HD AVT 200HD Tuner • Introduction...

  • Page 10: Installation

    Installation This section describes the rear panel of the AVT 200HD and provides instructions for cabling. It covers the following topics: Installation Overview • • Rear Panel Features Control Connections • Installation Overview Follow these steps to install and set up the AVT 200HD tuner: Disconnect power from the tuner and turn off all other devices that are connected to (Optional) Mount the unit in a rack.

  • Page 11: Rear Panel Features

    Rear Panel Features All of the AVT 200HD connectors are on the rear panel. The following figure shows the AVT rear panel features. 12 13 100-240V 0.8A DIGITAL AUDIO COAX OPTICAL HDMI AIR/CABLE RS-232/IR RESET RF IN IR +12V 50/60 Hz Figure 2.

  • Page 12: Audio Output Connectors

    Audio output captive screw connector — Connect a speaker set or other audio output device to this 3.5 mm 5-pole captive screw connector for balanced or unbalanced analog audio output (see the illustration on the next page). AVT 200HD Tuner • Installation...

  • Page 13: Input Connector

    IR Control,” later in this section). LAN port — If desired, connect the AVT 200HD to a computer or to an Ethernet LAN via this RJ-45 connector. Through this port, you can control the tuner using SIS commands, the AVT 200HD Configuration &...

  • Page 14: Control Connections

    Control Connections Ethernet Connection When you connect a computer to the AVT 200HD LAN port, it is vital that you use the correct Ethernet cables, and that they are properly terminated with the correct pinout. Ethernet links use Category (CAT) 5 or 5e unshielded twisted pair (UTP) cables, terminated with RJ-45 connectors.

  • Page 15: Wiring For Ir Control

    Software” for details on how to install and use the program. Wiring for IR Control You can control the AVT 200HD by pointing the IR remote control at the front panel IR sensor and pressing the desired button (see “Using the AVT 200HD IR Remote Control”...

  • Page 16: Connecting To The Usb Port

    The following diagram shows how to wire the AVT 200HD to use the infrared remote control with the optional IR Link. RS-232/IR RESET IR +12V AVT 200HD Rear Panel RS-232/IR Port AVT 200HD Remote Control +12 VDC Modulated IR Ground ( ) IR Link Rear Panel Figure 8.
  • Page 17 If this is the first time you have connected an AVT 200HD to this USB port on your computer, the Found New Hardware Wizard opens. On the first screen, specify whether you want the computer to connect to Windows Update in order to search the web for the driver that it needs to communicate with the AVT via the USB port.
  • Page 18 Selecting the Radio Button to Install the USB Driver Automatically Your computer locates the driver needed for it to communicate with the AVT 200HD via the USB port. This driver is loaded to the computer hard drive when the AVT configuration program is installed.

  • Page 19: Operation

    Operation This section describes the AVT 200HD front panel controls and the procedures for using them to configure and operate the AVT tuner. Topics include: Front Panel Features • • Powering On Menus on the LCD Screen • • Resetting from the Rear Panel •...

  • Page 20: Hdcp Compliance

    Screen,” later in this section, for information on selections (see using the AVT menu system). Menu button — Press this button to access the AVT 200HD menu system and step through the menus. Next button — Within a menu, press this button to step through the submenus.

  • Page 21: Powering On

    480i @ 59.94 Figure 13. Power-up and Default Cycle Screens (Example) NOTE: If your AVT 200HD is new and no channel scan has been performed, the two screens shown at AIR CHANNEL right alternate on the LCD screen instead of the...

  • Page 22: Menus On The Lcd Screen

    Menus on the LCD Screen The AVT 200HD menus that are displayed on the LCD screen enable you to configure and operate the tuner from the front panel. The menu navigation buttons (Menu and Next) are located to the right of the LCD window. Press these buttons to cycle through the available menus, submenus, and options.
  • Page 23 “Unit Reset Menu (Resetting from the Front Panel),” later in defaults (see this section). The following sections describe the submenu options for each of these menus. AVT 200HD Tuner • Operation...

  • Page 24: Channel Setup Menu

    Figure 15. Channel Setup Menu Flow Selecting the signal source The AVT 200HD accepts signals over the air or via cable: standard, HRC, and IRC. To select the signal source: Press Menu until is displayed in the LCD screen.
  • Page 25 If channels are found and saved, the LCD screen displays the name and number • of the first (lowest-numbered) channel, then returns to the default cycle. The first channel number also appears on the LED display. For example: CHANNEL AVT 200HD Tuner • Operation...
  • Page 26 (with a hyphen [-] in place of the decimal point). The number shown in the figure above would appear on the LCD screen as: CABLE 128-25018 Figure 19. Large Channel Number on LCD Screen AVT 200HD Tuner • Operation...

  • Page 27: Output Configuration Menu

    (Closed Caption submenu) Selecting tune or preset mode The AVT 200HD has two tuning modes: tune and preset. You can use the front panel menus, the Windows-based control software, SIS commands, the embedded web pages, or the AVT 200HD Remote Control to switch between modes.
  • Page 28 When the highest channel number available is reached, the display restarts numbering at the lowest channel number. If the AVT 200HD is in preset mode, you can tune only to a preset channel. To change preset channels, press the Up or Down button to display the numbers of the programmed presets in ascending or descending order in the LED and LCD displays.

  • Page 29: Recalling Presets

    30. In addition to the front panel buttons, you can use SIS commands (see the “Remote Configuration and Control” section); the control software (see the AVT 200HD control program help file); the AVT 200HD web pages (see “HTML Configuration and...
  • Page 30 — The image is evenly stretched both horizontally and vertically, until the picture fills the entire width of the screen. The figure on the next page shows how the display appears in each mode for the two display formats. AVT 200HD Tuner • Operation...

  • Page 31: Audio Configuration Menu

    Menu AUDIO LANGUAGE DIGITAL OUT Next Next Next CONFIGURATION ENGLISH AC-3 Turn either Adjustment knob to select a setting. AC-3 (Default) • • ENGLISH (Default) • • SPANISH • FRENCH Figure 22. Audio Configuration Menu AVT 200HD Tuner • Operation...

  • Page 32: Comm Setting Menus

    2 seconds. 196.168.254.254 255.255.000.000 Next Next Next SUBNET MASK GATEWAY ADDRESS 255.255.000.000 000.000.000.000 Next Next GATEWAY ADDRESS 000.000.000.000 Rotate the horizontal or vertical Adjustment knob to select a setting. Figure 23. Comm Setting Menu Flow AVT 200HD Tuner • Operation...
  • Page 33 Subnet Mask: Set the subnet mask address. The default is 255.255.000.000 • Gateway Address: Set the gateway address. The default is 000.000.000.000 • NOTE: These address screens do not appear in the Edit menu if DHCP is on. AVT 200HD Tuner • Operation...

  • Page 34: Unit Reset Menu (Resetting From The Front Panel)

    Unit Reset Menu (Resetting from the Front Panel) Three modes of reset can be initiated from the AVT 200HD front panel. VIEW COMM SETTING Menu UNIT FACTORY PRESS NEXT Next Next RESET RESET TO RESET Menu Turn either Adjustment knob to select a reset mode.

  • Page 35: Exiting The Menu System

    NOTES: • The reset modes are separate functions, not a continuation from mode 1 to mode 5. • There is no reset mode 2 for the AVT 200HD. AVT 200HD Tuner • Operation...
  • Page 36 Clears the channel list, all presets, • 1 second). and audio settings. Resets all IP options. • Clears all files from the tuner. • The Reset LED flashes four times in quick succession during the reset. AVT 200HD Tuner • Operation...

  • Page 37: Locking And Unlocking The Front Panel (Executive Modes)

    Windows-based control software (see the program help file) or the web pages (see “Tuner Settings Page“ in the “HTML Configuration and Control” section). The AVT 200HD has four types of security lock that set limits for operation of the tuner from the front panel: •...

  • Page 38: Using The Avt 200Hd Ir Remote Control

    From a distance of no more than 30 feet (9.1 m), the remote control sends infrared (IR) signals to the AVT 200HD through the infrared remote sensor, located on the front panel to the left of the LED channel display. The IR sensor can receive the signal if it is sent from within a 40 degree arc to the right or left of direct line of sight between the remote control and the AVT receiver.

  • Page 39: Installing Batteries In The Avt 100 Remote

    Setup operations cannot be performed from the remote control. Installing batteries in the AVT 100 Remote Install two AAA batteries in the AVT 200HD Remote Control as shown below. Figure 28. Installing Batteries in the AVT 200HD IR Remote Control...

  • Page 40: Buttons On The Avt 200Hd Remote Control

    Buttons on the AVT 200HD Remote Control The following functions are available through the buttons on the AVT 200HD IR Remote Control: MUTE VIDEO AUDIO CHANNEL TUNE VOLUME PRESET CHANNEL SELECTION SAVE ENTER LAST SHIFT INFO GUIDE FREEZE AVT 200HD Remote Figure 29.

  • Page 41: Selecting A Channel Or Preset Using The Ir Remote Control

    Selecting a Channel or Preset Using the IR Remote Control To select or change a channel or preset using the AVT 200HD IR Remote Control: Using the channel selection number buttons, enter each digit of the desired channel or preset number.

  • Page 42: Locking Ir Remote Control Access

    LCD does not change). The channel or preset is not changed. Locking IR Remote Control Access The AVT 200HD Remote Control can be set to lock out users from using it to control the AVT. This is done by selecting the...

  • Page 43: Channel Information Display

    You can enable the OSD displays using the IR remote control (see the ” description under “Buttons on the AVT 200HD IR Remote Control,” earlier in this section), the configuration and control software (see the program help file), or SIS commands (see “On-screen display...

  • Page 44: Program Guide

    User Control web page. Program Guide Off • Enter the SIS command E 0TVPG • NOTE: When you adjust the volume or change the channel (using any method), the Program Guide closes. AVT 200HD Tuner • Operation...

  • Page 45: Remote Configuration And Control

    This section describes the serial, Ethernet, and USB connections through which the Extron Simple Instruction Set (SIS) commands can be issued, and lists the commands that are available for configuring and controlling the AVT 200HD. Topics include: Serial Port •...

  • Page 46: Ip Address

    IP Address To access the AVT 200HD via the Ethernet port, obtain the IP address of the tuner from your network administrator. If the IP address has been changed to an address comprised of words and characters, you can determine the actual numeric IP address using the ping (ICMP) utility (see “IP...

  • Page 47: Using Sis Commands

    The tuner-initiated messages are listed below (underlined). • Copyright message With an RS-232 connection: (c) Copyright 2011, Extron Electronics AVT 200HD, Vx.xx, 60-770-01 With an Ethernet connection: (c) Copyright 2011, Extron Electronics, AVT 200HD, Vx.xx, 60-770-01 Ddd, DD Mmm YYYY HH:MM:SS The tuner initiates the copyright message when it is first powered on or when an IP is established.

  • Page 48: Tuner Error Responses

    The table below shows the hexadecimal equivalent of each ASCII character used in the command/response table. ASCII to Hex Conversion Table Space • Figure 35. ASCII to Hexadecimal Conversion AVT 200HD Tuner • Remote Configuration and Control...

  • Page 49: Special Characters

    0 – 100% = Volume range 0 = medium (default) = Closed caption font size 1 = large 2 = small 0 through 7 (default = font 0) = Closed caption font style AVT 200HD Tuner • Remote Configuration and Control...
  • Page 50 “ ” ; : | \ and ?. = V-chip (parental control) Consists of 4 digits. personal identification number (PIN) 0 = audio unmuted = Sudio mute status 1 = audio muted 2 = only S/PDIF audio muted AVT 200HD Tuner • Remote Configuration and Control...

  • Page 51: Command/Response Table For Avt 200Hd Sis Commands

    X! . X@ ] X! . X@ ] Display a list of only the channels that have not been hidden (for example, a customized list with channels having poor signal quality eliminated). AVT 200HD Tuner • Remote Configuration and Control...
  • Page 52 X! . X@ P99•T •Nname View a list of all presets that have been saved. Example: TVPR P01 T005.01 NKTLA-DT P02 T004.01 NPreset02 P03 T011.03 NPreset03 P04 T018.04 NPreset04 P05 T030.01 NPreset05 AVT 200HD Tuner • Remote Configuration and Control...

  • Page 53: Video Output

    Show the current output polarity setting. Select display aspect ratio ASPR AsprT Select output screen type 0 = 16x9 1 = 4x3 View display aspect ratio TASPR Show the current display type. AVT 200HD Tuner • Remote Configuration and Control...
  • Page 54 OSD program guide. Move down program guide Move the highlighting down –TVPG Tvpg through the program guide. X1)] View program guide status TVPG Show status of the program guide. AVT 200HD Tuner • Remote Configuration and Control...
  • Page 55 Show the selected font color. C FSCC X1*] Select CC text fill FSCC FsccO Select type of fill for the closed caption font. 0 = solid (default) 1 = transparent 2 = translucent 3 = flashing AVT 200HD Tuner • Remote Configuration and Control...
  • Page 56 Set digital audio output AFMT Afmt Select digital output type format 1 = AC-3 (Dolby digital) 2 = PCM View digital audio output AFMT Show the selected digital audio format output format. AVT 200HD Tuner • Remote Configuration and Control...
  • Page 57 2 = Block PG, PG13, R, NC17, and X ratings. 3 = Block PG13, R, NC17, and 4 = Block R, NC17, and X. 5 = Block NC17 and X. 6 = Block X ratings only. AVT 200HD Tuner • Remote Configuration and Control...
  • Page 58 0 = Unblock all ratings. 1 = Block D ratings for TV-PG and TV-14. 2 = Block D ratings for TV-14 only. X2@] View D rating block D VCHP Show the D block setting. AVT 200HD Tuner • Remote Configuration and Control...
  • Page 59 I HDCP Show status of the broadcast flag, which indicates that the In verbose mode: X1)] TV data stream contains HDCP HDCPI protected material. For 0 = flag off 1 = flag on AVT 200HD Tuner • Remote Configuration and Control...
  • Page 60 Query part number 60-770-01 Show the unit part number. In verbose mode: Pno 60-770-01 X1#] Internal temperature 20STAT Show the internal temperature in degrees Fahrenheit. In verbose mode: X1#] = +nnn.nn Stat AVT 200HD Tuner • Remote Configuration and Control...
  • Page 61 Clear channel list 0*TVSL Tvsl Clear all channels. Reset user settings Reset all settings to the factory defaults except the channel and preset lists. Total reset ZXXX Reset all settings to the factory defaults. AVT 200HD Tuner • Remote Configuration and Control...

  • Page 62: Symbol Definitions For Ip-Specific Commands

    2 through 32767 Time (in 10-ms increments) to wait Default = 2, or 20 ms between characters before terminating the connection 00-05-A6-xx-xx-xx Hardware (MAC) address AVT 200HD Tuner • Remote Configuration and Control...
  • Page 63 Sunday in February.) 0 through 99 (event must be running) Event number 0 = receive Event buffer 1 = unified 2 = data 3 = NVRAM 0 through maximum buffer size Event buffer offset AVT 200HD Tuner • Remote Configuration and Control...
  • Page 64 16-bit decimal number. X10$ Hardware (MAC) address with Can be up to 10 digits. the 8 least significant hex nibbles converted into a single 32-bit decimal number. AVT 200HD Tuner • Remote Configuration and Control...

  • Page 65: Command/Response Table For Ip-Specific Sis Commands

    Set number of seconds (in tens timeout of seconds) before timeout on IP connections. = 1 through 32767. X9(] View current connection port timeout X9(] Set global port timeout Pti1* X9(] View global port timeout AVT 200HD Tuner • Remote Configuration and Control...
  • Page 66 2 = Europe (Begins last Sunday in March and ends last Sunday in October.) 3 = Brazil (Begins third Sunday in October and ends third Sunday in February.) X7#] View Daylight Saving Time AVT 200HD Tuner • Remote Configuration and Control...
  • Page 67 Default is 0 for Telnet connections and 1 for RS-232 control. X6@] View verbose mode EX9% X5$} X5$] Set broadcast mode Set broadcast mode to default EX9% X5$] address X5$] Bmd000, Clear broadcast mode AVT 200HD Tuner • Remote Configuration and Control...
  • Page 68 1024 or higher. EX4@ X4@] Set Telnet port map = Telnet port number Reset Telnet port map 23MT Pmt00032 Disable Telnet port Pmt00000 X4@] View Telnet port mapping AVT 200HD Tuner • Remote Configuration and Control...
  • Page 69 [n] = ‘filenamen , daten, filesizen ‘; file [n+1] ‘space remaining , bytes left’ NOTE: LF has the same response from the unit as DF, except path/directory precede filenames for files from directories below the current directory. AVT 200HD Tuner • Remote Configuration and Control...
  • Page 70 • You can use this command to update firmware by loading a firmware file with a .S19 extension. If the unit determines that the .s19 file is not intended for the AVT 200HD, the Upl response is followed by Fwm (firmware mismatch).
  • Page 71 24,27 Stop events 24,27 Query the number of events nnnnn Response is a 5-digit number. running Telnet text responses: In Verbose Mode: event0 starting loc, Enm nnnnn length event1 starting loc, length AVT 200HD Tuner • Remote Configuration and Control...

  • Page 72: Accessing The Avt 200Hd Configuration & Control Software

    SIS commands, and the embedded web pages are also available via this control program. The control software is provided on a DVD with your AVT 200HD and is also available for downloading free of charge from the Extron website at www.extron.com.

  • Page 73: Installing The Software From The Disc

    Installing the Software from the Disc If you have an Extron disc containing the AVT 200HD software, install it on your computer as follows: Insert the disk into your computer drive. If the disc does not start automatically, open your Windows Explorer and double-click on the disk drive to start it.

  • Page 74: Starting The Software

    Extron Electronics group or folder in the Start menu. You can access this icon by selecting Start > All Programs > Extron Electronics > AVT 200HD > AVT 200HD After a few seconds, the Communication Setup window opens, in front of the control program main window.
  • Page 75 Figure 40. Start-up Status Message Example The AVT 200HD Configuration & Control Program main window appears with the tab displayed (see the illustration on the next page). This tab shows the Control currently selected channel or preset and also contains function selection buttons and controls.
  • Page 76 Figure 41. AVT 200HD Configuration & Control Program Main Window with the Control Tab Displayed To begin configuring the AVT, click the tab. This tab contains several sub-tabs on Setup which you can set up all available AVT parameters. Figure 42.

  • Page 77: Using The Configuration & Control Program Help File

    Using the Configuration & Control Program Help File For instructions on using the AVT 200HD Configuration & Control Program to set up and control the AVT, use the program help file. To access it, select from the menu. Help Help Updating the Firmware The Firmware Loader utility provides a way to replace the AVT firmware.
  • Page 78 AVT to stop functioning. NOTE: The original factory-installed firmware is permanently available on the AVT 200HD. If the attempted firmware upload fails for any reason, the tuner reverts to the factory-installed firmware. AVT 200HD Tuner • Remote Configuration and Control...
  • Page 79 . When the reset is complete, the LCD screen returns to the default PLEASE WAIT... cycle. When the firmware upload and unit reset are complete, close the Firmware Loader window. The AVT 200HD Configuration & Control Program main window is redisplayed. AVT 200HD Tuner • Remote Configuration and Control...

  • Page 80: Html Configuration And Control

    (/) following the IP address and the name of the file to open. NOTE: The browser Address field should display the IP address in the following format: nnn.nnn.nnn.nnn/ .html. optional_file_name AVT 200HD Tuner • HTML Configuration and Control...

  • Page 81: Special Characters

    AVT IP address. Click NOTE: entry is not required. User name The AVT 200HD checks several possibilities, in the following order, and then responds accordingly: If the address includes a specific file name, such as 10.13.156.10/ • file_name .html, the tuner downloads that HTML page.

  • Page 82: System Status Page

    The System Status web page refreshes itself periodically to reflect the latest status of the tuner components. If a variable changes, the display shows the change in status the next time it updates. AVT 200HD Tuner • HTML Configuration and Control...

  • Page 83: Configuration Pages

    System Settings Page The AVT 200HD displays the System Settings page (shown on the next page) when you click the tab. The screen consists of fields in which you can view and Configuration edit IP administration and system settings.
  • Page 84 For all Extron products, the first three character pairs are 00-05-A6, followed by three more pairs unique to the individual device. The MAC address is hard coded in the tuner and cannot be changed. AVT 200HD Tuner • HTML Configuration and Control...
  • Page 85 Europe, or parts of Brazil. When daylight savings time is turned off, the tuner does not adjust its time reference. Click the button at the bottom of the section to Submit Date/Time Settings implement your selections. AVT 200HD Tuner • HTML Configuration and Control...

  • Page 86: Tuner Settings Page

    Tuner Settings link on the left sidebar panel. Figure 50. Tuner Settings Page Set up your AVT 200HD for operation by making selections in the following sections on this web page. AVT 200HD Tuner • HTML Configuration and Control...
  • Page 87 Click Save . The saved preset is added to the Presets list at right. (The newest preset is shown in blue until the page is refreshed or a new preset is added.) AVT 200HD Tuner • HTML Configuration and Control...
  • Page 88 • Output Resolution (video) • Digital Output (audio) Executive Mode Select the radio button for the desired front panel lock mode or select to disable executive mode. AVT 200HD Tuner • HTML Configuration and Control...

  • Page 89: Passwords Page

    To clear an existing password so that no password is required, delete the bullets in the fields and enter a space in each field, then click the Password Re-enter Password button at the bottom of the page. Submit AVT 200HD Tuner • HTML Configuration and Control...

  • Page 90: Firmware Upgrade Page

    Downloads On the Download Center page, click the Firmware link on the left sidebar menu. Click on the name of your AVT 200HD. On the next screen, fill in the required information, then click the Download button. AVT200HDVnxnn.exe On the window, click File Download –...
  • Page 91 AVT to stop functioning. NOTE: The original factory-installed firmware is permanently available on the AVT 200HD. If the attempted firmware upload fails for any reason, the AVT reverts to the factory-installed firmware. On the Firmware Upgrade page, click the button.

  • Page 92: File Management Page

    File Management page. (Files are listed separately under headings of their extensions.) NOTE: If you want one of the pages that you create and upload to be the default startup page, name that file “index.html.” AVT 200HD Tuner • HTML Configuration and Control...

  • Page 93: Adding A Directory

    Filter by File Extension extensions of the files that have been uploaded to the AVT. This menu lets you choose to display only files with the extension you select. Select to display all uploaded files. AVT 200HD Tuner • HTML Configuration and Control...

  • Page 94: Control Pages

    ATSC - Channels Cable - Channels from the Tune Mode drop-down menu (shown at right). • To enable preset mode, select from the ATSC - Preset Cable - Preset Tune Mode menu. AVT 200HD Tuner • HTML Configuration and Control...

  • Page 95: Adjusting The Volume

    In the Volume (%) section, you can increase or decrease the output volume by either of the following methods: • Select the volume percentage ( through ) from the drop-down menu. Click the – or + button to raise or lower the volume by one percentage point. • AVT 200HD Tuner • HTML Configuration and Control...

  • Page 96: Closed Captioning Page

    . The menus in Custom the Format the Appearance section become available. CC Service — Select the radio button for the desired closed captioning service number • through ). To disable closed captioning, select AVT 200HD Tuner • HTML Configuration and Control...

  • Page 97: V-Chip Page

    Figure 58. V-Chip Page Enter the V-chip PIN number In the V-Chip PIN field. If no PIN has been assigned, enter the default 0000 Click Submit . The V-chip screen editing screen appears. AVT 200HD Tuner • HTML Configuration and Control...
  • Page 98 If you select , movies with all None ratings are blocked (only unrated movies are shown). In the example at right, was selected. Movies with R and NC-17 ratings will be blocked. AVT 200HD Tuner • HTML Configuration and Control...
  • Page 99 : Parental guidance suggested • TV-PG • : Children age 14 and older TV-14 • : Mature audiences (age 17 and older) TV-MA (Allow All Ages) Figure 61. Maximum Allowed Rating for Ages Menu AVT 200HD Tuner • HTML Configuration and Control...
  • Page 100 . The number is masked by four bullets. In the field, enter your new 4-digit PIN. New PIN Reenter the new PIN in the field. Re-Type New PIN Click to set the new PIN. Save AVT 200HD Tuner • HTML Configuration and Control...

  • Page 101: Reference Information

    Reference Information This section provides reference information on the AVT 200HD. The following topics are covered: Specifications • • Part Numbers and Accessories Mounting the Tuner • • IP Addressing • Frequency Tables Specifications RF video input Number/signal type ......1 radio frequency (RF) Connector ........
  • Page 102 Ethernet default settings ....Link speed and duplex level = autodetected IP address = 192.168.254.254 Subnet mask = 255.255.0.0 Default gateway = 0.0.0.0 DHCP = off Web server ........Up to 200 simultaneous sessions 7.25 MB nonvolatile user memory AVT 200HD Tuner • Reference Information...
  • Page 103 IR remote control ......AVT 200HD remote (optional) Front panel: 30' maximum, 40 degrees off axis Rear panel captive screw connector (shared with RS-232): 38 kHz, hardwired, modulated Program control ......Extron control/configuration program for Windows ® Extron Simple Instruction Set (SIS ™...

  • Page 104: Part Numbers And Accessories

    101-020-01 (package of 50) LockIt™ HDMI Lacing Bracket Installation Guide MBD 149 rack mounting kit 70-077-03 Optional Accessories The following optional accessories can be purchased for use with the AVT 200HD. Accessory Part Number AVT 200HD Remote Control 70-743-01 IR Link...

  • Page 105: Mounting The Tuner

    The AVT matrix switchers are housed in rack-mountable metal enclosures with mounting flanges for standard 19-inch racks. If desired, rack mount the AVT 200HD as follows: Attach the included mounting brackets to the unit using eight of the machine screws provided with the mounting kit.

  • Page 106: Ip Addressing

    NOTE: The host identifiers (41, 42, and 43 in the above example) do not need to be sequential or in any particular order. However, it is recommended that you group the numbers for simplicity. AVT 200HD Tuner • Reference Information...

  • Page 107: Subnet Mask

    “Subnetting—A Pinging for the IP Address To access the AVT 200HD via the Ethernet port, you need the tuner IP address. If the address has been changed to an address comprised of words and characters, the actual numeric IP address can be determined using the Ping utility. If the address has not been changed, the factory-specified default is 192.168.254.254.

  • Page 108: Connecting As A Telnet Client

    The Microsoft Telnet utility is available from the command prompt. Telnet allows you to input SIS commands to the AVT 200HD from the PC via the Ethernet link and the LAN. Access the command prompt and start Telnet as follows:...
  • Page 109 Local echo can be turned off by entering at the Telnet prompt. If your unset local_echo computer is connected to the AVT 200HD, and you need to access the Telnet prompt to turn local echo off, enter the Escape sequence (<Ctrl + ] >...

  • Page 110: Subnetting - A Primer

    AVT 200HD and the mail server gateway. To understand subnetting at the level required to install and operate the AVT 200HD, you must understand the concepts of a gateway, local and remote devices, IP addresses and octets, and subnet masks and octets.
  • Page 111 255.255.0.0 (?.?.X.X) 255.255.0.0 (?.?.X.X) Remote IP Address: 192.168.2.25 190.190.2.25 192.190.2.25 =.¹.X.X — No match Match?: =.=.X.X — Match ¹.¹.X.X — No match (Same subnet) (Different subnet) (Different subnet) Figure 67. Comparing the IP Addresses AVT 200HD Tuner • Reference Information...

  • Page 112: Frequency Tables

    535.75 537.25 536.31 541.75 543.25 542.31 547.75 549.25 548.31 553.75 555.25 554.31 559.75 561.25 560.31 565.75 567.25 566.31 571.75 573.25 572.31 577.75 579.25 578.31 583.75 585.25 584.31 589.75 591.25 590.31 595.75 597.25 596.31 601.75 AVT 200HD Tuner • Reference Information...
  • Page 113 757.75 759.25 758.31 763.75 765.25 764.31 769.75 771.25 770.31 775.75 777.25 776.31 781.75 783.25 782.31 787.75 789.25 788.31 793.75 795.25 794.31 799.75 801.25 800.31 805.75 *Channel 37 frequency does not apply to ATSC broadcasting. AVT 200HD Tuner • Reference Information...

  • Page 114: Cable Frequency Table

    217.25 217.25 223.25 223.25 229.25 229.25 239.25 239.25 241.25 241.25 247.25 247.25 253.25 253.25 259.25 259.25 265.25 265.25 271.25 271.25 277.25 277.25 283.25 283.25 289.25 289.25 295.25 295.25 304.25 304.25 307.25 307.25 313.25 313.25 AVT 200HD Tuner • Reference Information...
  • Page 115 445.25 445.25 451.25 451.25 457.25 457.25 463.25 463.25 469.25 469.25 475.25 475.25 481.25 481.25 487.25 487.25 493.25 493.25 499.25 499.25 505.25 505.25 511.25 511.25 517.25 517.25 523.25 523.25 529.25 529.25 535.25 535.25 541.25 541.25 AVT 200HD Tuner • Reference Information...
  • Page 116 115.25 115.25 649.25 649.25 655.25 655.25 661.25 661.25 667.25 667.25 673.25 673.25 679.25 679.25 685.25 685.25 691.25 691.25 697.25 697.25 703.25 703.25 709.25 709.25 715.25 715.25 721.25 721.25 727.25 727.25 733.25 733.25 739.25 739.25 AVT 200HD Tuner • Reference Information...
  • Page 117 763.25 4628.75 769.25 4664.75 775.25 4700.75 781.25 4736.75 787.25 4772.75 793.25 4808.75 799.25 4844.75 805.25 4880.75 811.25 4916.75 871.25 4952.75 823.25 4988.75 829.25 5024.75 835.25 5060.75 841.25 5096.75 847.25 5132.75 853.25 5168.75 859.25 5204.75 AVT 200HD Tuner • Reference Information...
  • Page 118 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Table of Contents
