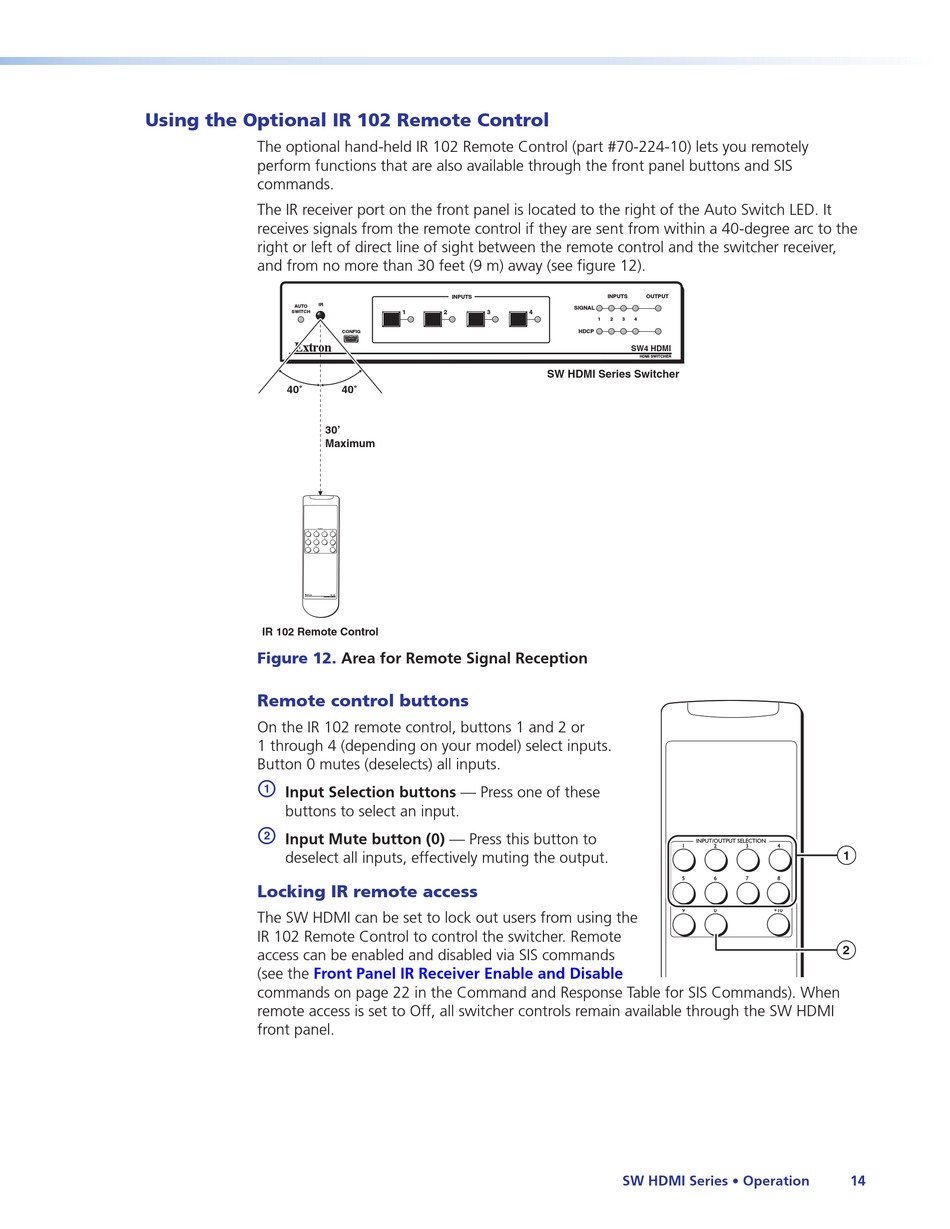

Using the Optional IR 102 Remote Control

The optional hand-held IR 102 Remote Control (part #70-224-10) lets you remotely
perform functions that are also available through the front panel buttons and SIS
commands.
The IR receiver port on the front panel is located to the right of the Auto Switch LED. It
receives signals from the remote control if they are sent from within a 40-degree arc to the
right or left of direct line of sight between the remote control and the switcher receiver,
and from no more than 30 feet (9 m) away (see figure 12).
IR
AUTO
SWITCH
40
30'
Maximum
Universal Remote
IR 102 Remote Control
Figure 12.
Remote control buttons
On the IR 102 remote control, buttons 1 and 2 or
1 through 4 (depending on your model) select inputs.
Button 0 mutes (deselects) all inputs.
a
Input Selection buttons — Press one of these
buttons to select an input.
b
Input Mute button (0) — Press this button to
deselect all inputs, effectively muting the output.
Locking IR remote access
The SW HDMI can be set to lock out users from using the
IR 102 Remote Control to control the switcher. Remote
access can be enabled and disabled via SIS commands
(see the Front Panel IR Receiver Enable and Disable
commands on page 22 in the Command and Response Table for SIS Commands). When
remote access is set to Off, all switcher controls remain available through the SW HDMI
front panel.
INPUTS
1 2 3
CONFIG
40
Area for Remote Signal Reception
INPUTS OUTPUT
SIGNAL
4
1 2 3 4
HDCP
SW4 HDMI
HDMI SWITCHER
SW HDMI Series Switcher
INPUT/OUTPUT SELECTION
1
5
9
SW HDMI Series • Operation
2 3 4
1
6 7 8
0 +10
2
IR 102
Universal Remote
