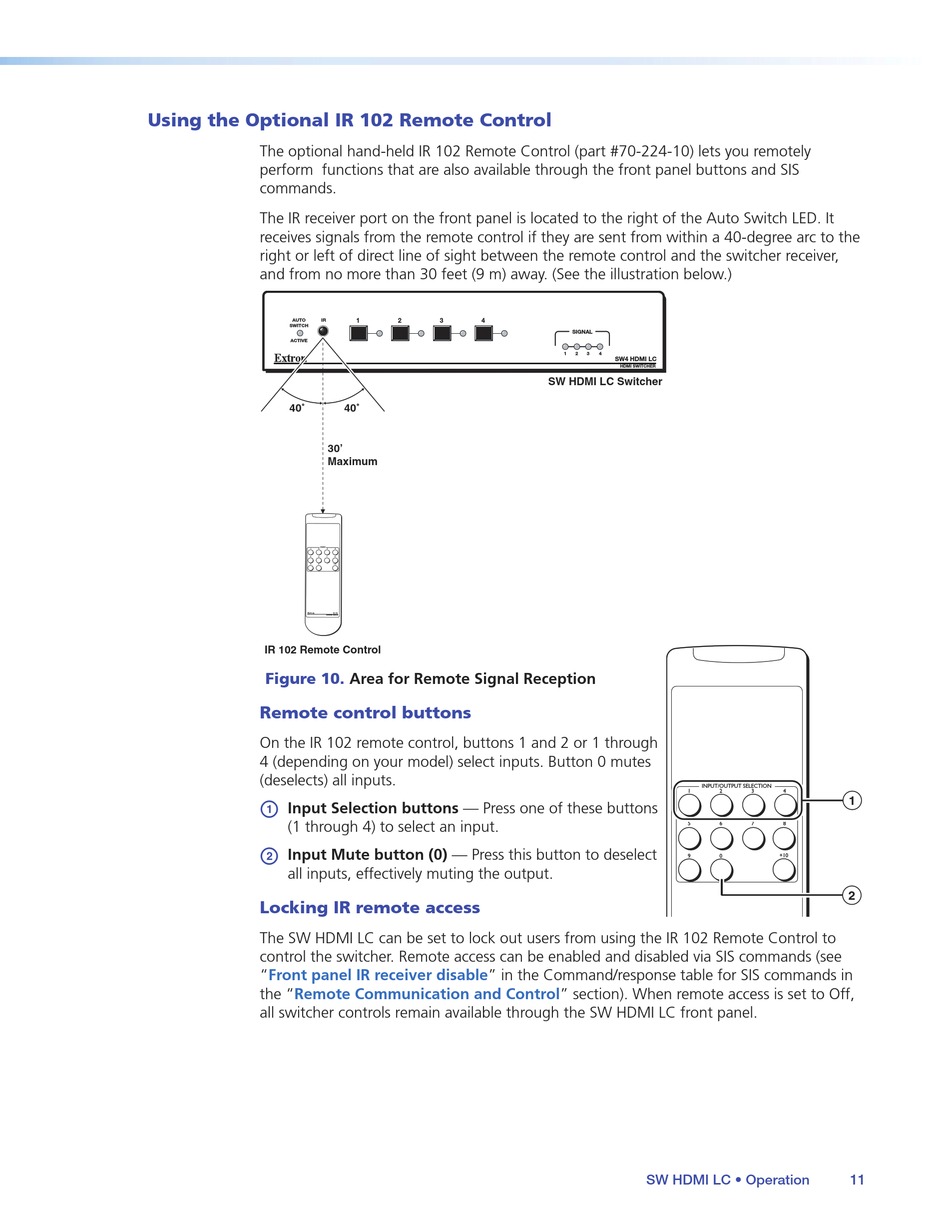

Using the Optional IR 102 Remote Control

The optional hand-held IR 102 Remote Control (part #70-224-10) lets you remotely
perform functions that are also available through the front panel buttons and SIS
commands.
The IR receiver port on the front panel is located to the right of the Auto Switch LED. It
receives signals from the remote control if they are sent from within a 40-degree arc to the
right or left of direct line of sight between the remote control and the switcher receiver,
and from no more than 30 feet (9 m) away. (See the illustration below.)
AUTO
IR
SWITCH
ACTIVE
40
Universal Remote
IR 102 Remote Control
Figure 10.
Remote control buttons
On the IR 102 remote control, buttons 1 and 2 or 1 through
4 (depending on your model) select inputs. Button 0 mutes
(deselects) all inputs.
a
Input Selection buttons — Press one of these buttons
(1 through 4) to select an input.
b
Input Mute button (0) — Press this button to deselect
all inputs, effectively muting the output.
Locking IR remote access
The SW HDMI LC can be set to lock out users from using the IR 102 Remote Control to
control the switcher. Remote access can be enabled and disabled via SIS commands (see
"Front panel IR receiver
the "Remote Communication and
all switcher controls remain available through the SW HDMI LC front panel.
1 2 3 4
40
30'
Maximum
Area for Remote Signal Reception
disable" in the Command/response table for SIS commands in
Control" section). When remote access is set to Off,
SIGNAL
1 2 3 4
SW4 HDMI LC
HDMI SWITCHER
SW HDMI LC Switcher
INPUT/OUTPUT SELECTION
1 2
5 6
9 0
SW HDMI LC • Operation
3 4
1
7 8
+10
2
IR 102
Universal Remote
11
