SW HDMI Series
Two and four inpuT HdMi SwiTcHerS
SW2 HDMI
SW4 HDMI

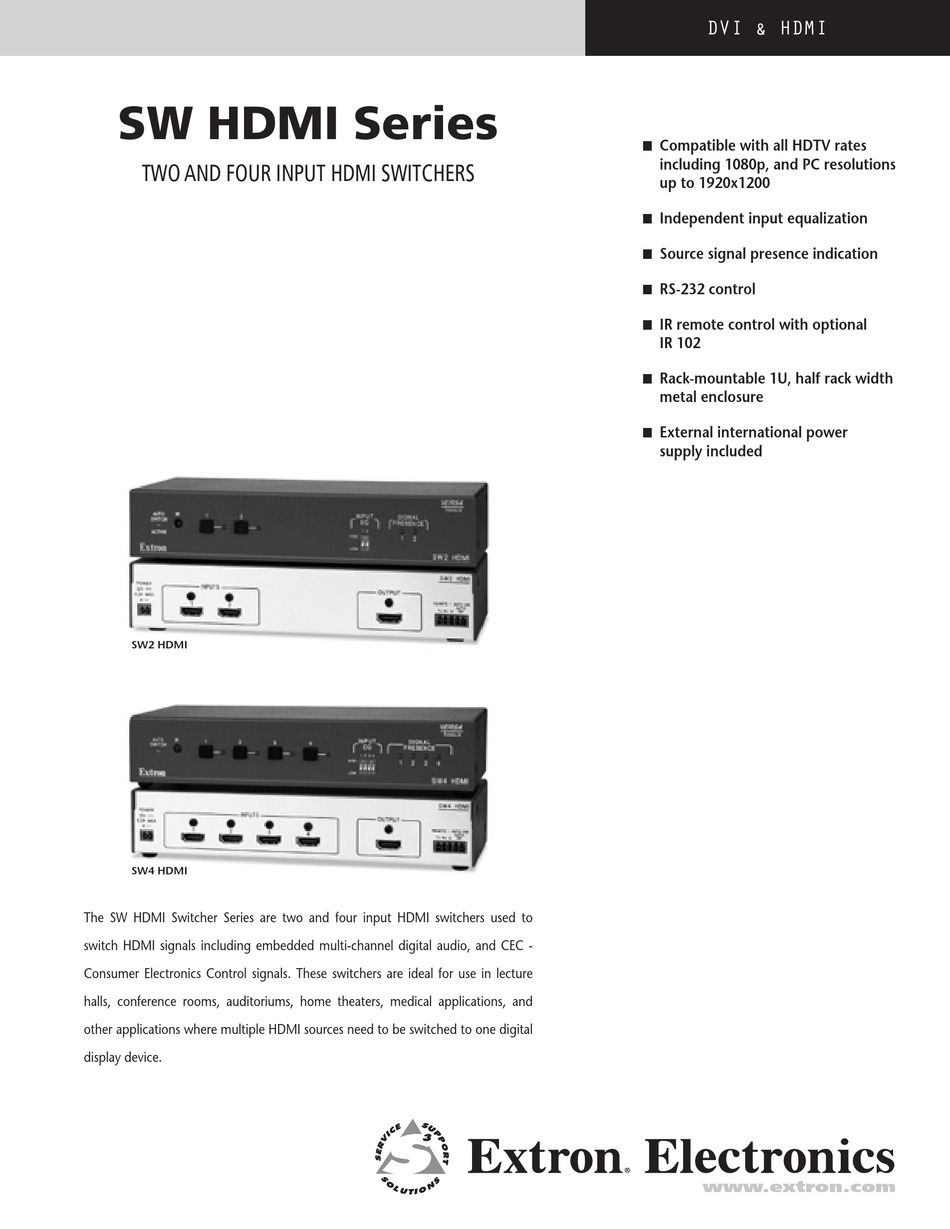

The SW HDMI Switcher Series are two and four input HDMI switchers used to
switch HDMI signals including embedded multi-channel digital audio, and CEC -
Consumer Electronics Control signals. These switchers are ideal for use in lecture
halls, conference rooms, auditoriums, home theaters, medical applications, and
other applications where multiple HDMI sources need to be switched to one digital
display device.
DVI & HDMI
Compatible with all HDTV rates
n
including 1080p, and PC resolutions
up to 1920x1200
Independent input equalization
n
Source signal presence indication
n
RS-232 control
n
IR remote control with optional
n
IR 102
Rack-mountable 1U, half rack width
n
metal enclosure
External international power
n
supply included
www.extron.com
