Extron electronics SW4 3G HD-SDI Setup Manual

SW4 3G HD-SDI Setup Guide
AUTO
SWITCH
1
ACTIVE
MODE
INPUTS
1 2
100-240V~.5A MAX.
50/60 Hz

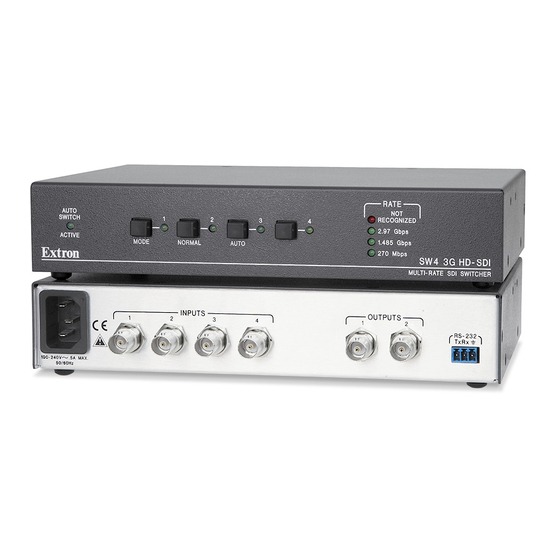

The Extron SW4 3G HD-SDI switcher is a four input, two parallel output, multi-rate switcher. It allows up to four SDI or
®
HD-SDI video input sources to be switched to two identical outputs, on female BNC connectors. The SW4 HD-SDI supports
multiple SDI rates, including 270 Mbps, 1.485 Gbps, and 2.97 Gbps. In auto-input switch mode, the SW4 3G automatically
switches to the highest numbered input with active sync pulses.
This guide provides basic instructions for an experienced installer to set up and operate this switcher.
Installation
1.
Turn off all of the equipment and disconnect it from the power source.
2.
(Optional) If desired, mount the switcher on a 6 inch or 9.5 inch deep rack shelf.
3.
Connect up to four SDI, HD-SDI, or 3G-SDI video inputs to BNC input connectors 1 through 4.
NOTE:
Each input is equalized regardless of the rate.
4.
Connect one or two video SDI, HD-SDI, or 3G-SDI output devices to the
rear panel BNC output connectors.
NOTE:
Outputs 1 and 2 output identical signals.
5.
If the switcher will be connected to a computer or host controller for
remote control, wire the provided 3-pole captive screw connector to an
RS-232 cable. Connect the RS-232 cable to the RS-232 port on the rear
panel of the switcher and to the host RS-232 port (see the illustration at
right).
Protocol for the RS-232 port: 9600 baud, 8 data bits, 1 stop bit, no parity
6.
Power on the input and output devices, then connect power to the
switcher by connecting the provided IEC power cord to the switcher
power connector and to an AC outlet.
Connecting an Input to the Outputs
To create a tie between an input and the outputs:
1.
Determine the necessary switch mode for the SW4 3G (the default mode is normal). (See "Enabling and Disabling
Auto-input Switch Mode," on the reverse side.)
Select auto-input switch mode to automatically switch to the highest numbered input with active sync pulses.
о
Choose normal mode to manually change the input.
о
2.
Select an input.
If you are using normal mode, select the desired input by pressing and releasing its input button. The LED beside
о
the selected input button lights.
To switch to another input, press a different input button.
о
If you are using auto-input switch mode, no action is necessary. The switcher automatically switches to the highest
о
numbered active input.
3.
If needed, create a remote connection via RS-232. (See step 5 under "Installation," above.)
2 3 4
NORMAL AUTO
3 4 1
RATE
NOT
RECOGNIZED
2.97 Gbps
1.485 Gbps
270 Mbps
SW4 3G HD-SDI
MULTI-RATE SDI SWITCHER
OUTPUTS
2
RS-232
Tx Rx
Switcher
Computer
5
RS-232
Tx Rx
9
DB9 connector (female)
pinout to control equipment
Pin RS-232
1 —
2 Rx
3 Tx
4 —
5 Gnd
6 —
7 —
8 —
9 —

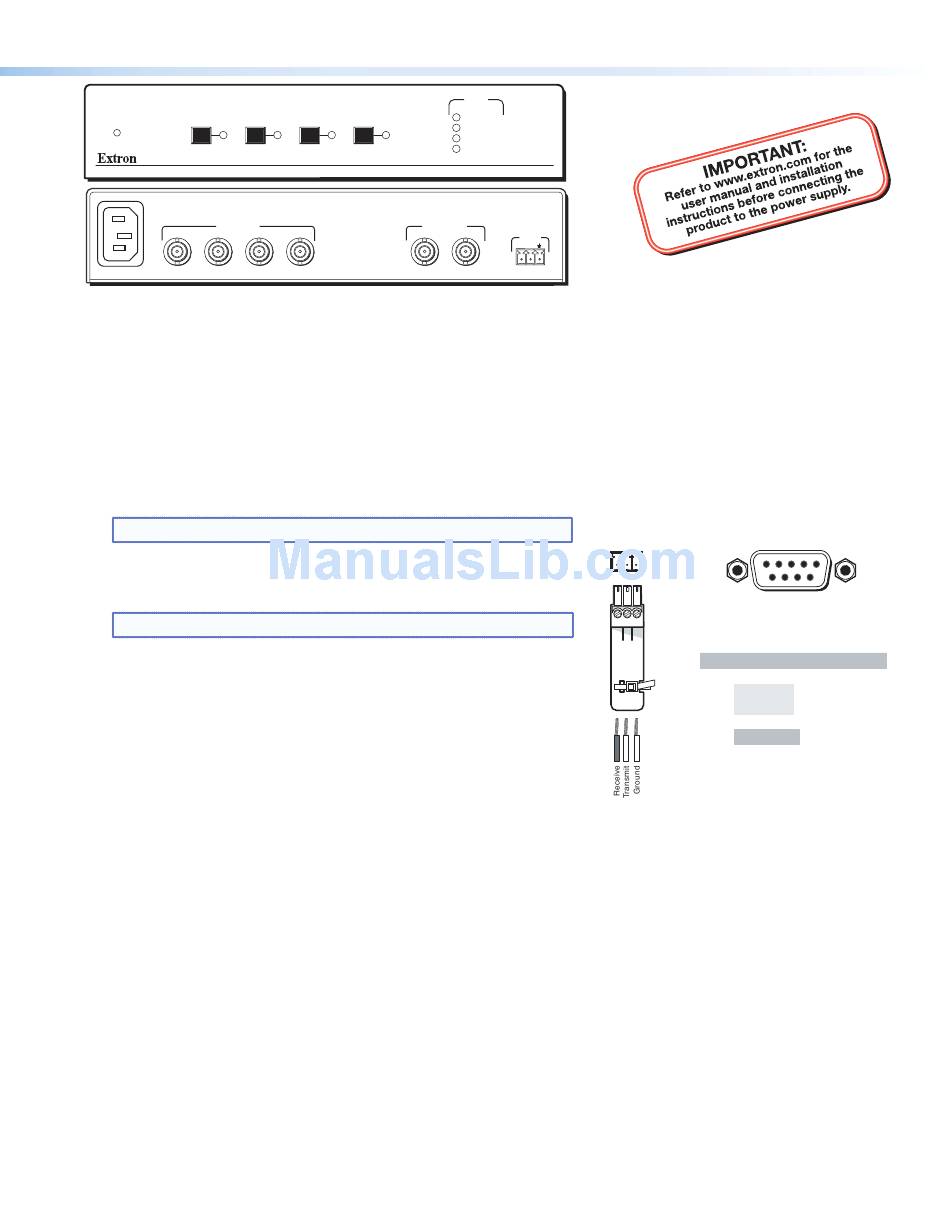

Figure 1.
RS-232 Connection
SW4 3G HD-SDI • Setup Guide
1
6
Function
—
Receive data (+)
Transmit data (–)
—
Signal ground
—
—
—
—
1
