  • Page 1: User Manual

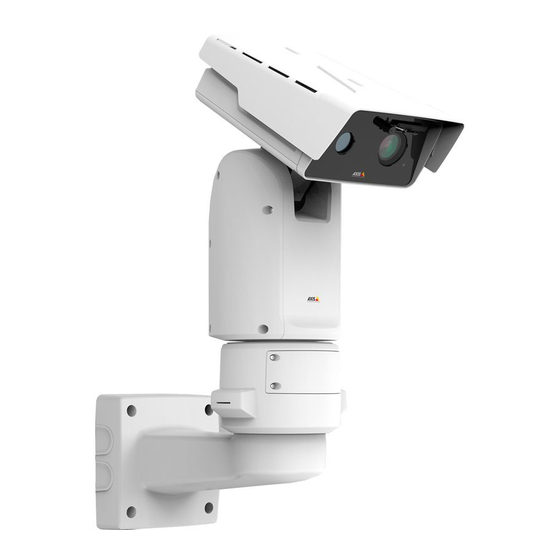

    AXIS Q87 Bispectral PTZ Network Camera Series AXIS Q8741-E Bispectral PTZ Network Camera AXIS Q8742-E Bispectral PTZ Network Camera User Manual...

  • Page 2: Table Of Contents

    AXIS Q87 Bispectral PTZ Network Camera Series Table of Contents Solution overview ......... . .

  • Page 3: Solution Overview

    Solution overview Solution overview The AXIS Q87 Bispectral PTZ Network Camera is intended for mission-critical surveillance that demands 24-hour monitoring of restricted areas, such as airports (1). In difficult lighting conditions (2), the thermal camera can detect objects (3) that the visual camera cannot. This allows you to set up an event, using motion detection on the thermal camera, to zoom in and record with the visual camera.

  • Page 4: Product Overview

    AXIS Q87 Bispectral PTZ Network Camera Series Product overview Product overview Weathershield Top cover Wiper Front with protective foil Inner cover Thermal lens Visual lens Positioning unit 10 Base unit 11 Base unit screws...
  • Page 5 AXIS Q87 Bispectral PTZ Network Camera Series Product overview SD card slot (microSDHC UHS-I/microSDXC UHS-I) Fan connector Status LED Factory default switch Input power connector I/O connector RJ45 connector SFP slot for SFP module (SFP module not included)

  • Page 6: How To Access The Product

    HTTPS connection and then change the password. The device password is the primary protection for the data and services. Axis devices do not impose a password policy as they may be used in various types of installations. To protect your data we recommend that you: •...

  • Page 7: Setup

    In difficult lighting conditions the thermal camera can detect objects that the visual camera cannot. This example shows how to set up an event, using AXIS Video Motion Detection on the thermal camera, to zoom in and record with the visual camera.

  • Page 8: How To Set Up The Camera For Daily Cleaning Of The Visual Window

    AXIS Q87 Bispectral PTZ Network Camera Series Setup 6. Create the zoomed-in preset position (call it for instance “gate position”) so that it covers the area in the image where you predict that the moving object will appear. Create the VMD event: 7.

  • Page 9: Image Quality

    AXIS Q87 Bispectral PTZ Network Camera Series Setup 3. Turn on the Nozzle position. 4. Select the washer pump pin on which the washer is connected. Create the action rule: 5. Go to Settings > System > Events > Add.
  • Page 10 AXIS Q87 Bispectral PTZ Network Camera Series Setup • The shutter speed should be as slow as possible, which means you should set max shutter to the highest possible value. How to select exposure mode Note The exposure modes are only available for the visual camera.

  • Page 11: Streaming And Storage

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard.

  • Page 12: About Applications

    6. Click Connect. About applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com...
  • Page 13 AXIS Q87 Bispectral PTZ Network Camera Series Setup 1. Disconnect power from the product. 2. Unscrew the four top cover screws and remove the top cover. 3. Insert an SD card into the SD card slot, see Connectors on page 18.

  • Page 14: Troubleshooting

    Reset to factory default should be used with caution. A reset to factory default will reset all settings, including the IP address, to the factory default values. Note The installation and management software tools are available from the support pages on www.axis.com/support/downloads To reset the product to the factory default settings: 1. Disconnect power from the product.

  • Page 15: How To Check The Current Firmware

    To find the latest firmware and the release notes, go to axis.com/support/firmware 1. Download the latest firmware file to your computer, available free of charge at axis.com/support/firmware 2. Log in to the product as an administrator.

  • Page 16: Performance Considerations

    Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the...
  • Page 17 • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. • Running multiple AXIS Camera Application Platform (ACAP) applications on the Visual and Thermal channels simultaneously...

  • Page 18: Specifications

    AXIS Q87 Bispectral PTZ Network Camera Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page on axis.com and locate Support & Documentation. SD card slot NOTICE TICE TICE • Risk of damage to SD card. Do not use sharp tools, metal objects or excessive force when inserting or removing the SD card.
  • Page 19 AXIS Q87 Bispectral PTZ Network Camera Series Specifications 0 V DC (-) DC output 12 V, max 50 mA I/O configured as input I/O configured as output Power connector 4-pin terminal block for power input. 24 V AC/DC power connector...
  • Page 20 User Manual Ver. M1.10 AXIS Q87 Bispectral PTZ Network Camera Series Date: October 2017 © Axis Communications AB, 2017 Part No. 1738428...

This manual is also suitable for:
