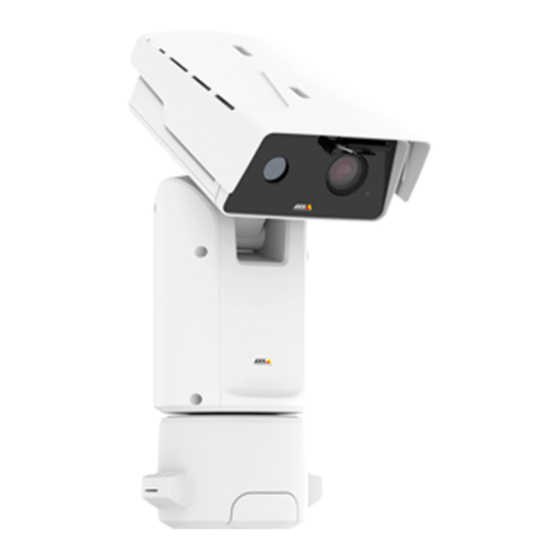

AXIS Q87 Bispectral PTZ Network Camera Series
AXIS Q8741-E Bispectral PTZ Network Camera
AXIS Q8741-LE Bispectral PTZ Network Camera
AXIS Q8742-E Bispectral PTZ Network Camera
AXIS Q8742-LE Bispectral PTZ Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q87 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Axis Q87 Series

  • Page 1 AXIS Q87 Bispectral PTZ Network Camera Series AXIS Q8741-E Bispectral PTZ Network Camera AXIS Q8741-LE Bispectral PTZ Network Camera AXIS Q8742-E Bispectral PTZ Network Camera AXIS Q8742-LE Bispectral PTZ Network Camera User Manual...
  • Page 2: Table Of Contents

    AXIS Q87 Bispectral PTZ Network Camera Series Table of Contents Solution overview ......... . .
  • Page 3: Solution Overview

    Solution overview Solution overview The AXIS Q87 Bispectral PTZ Network Camera is intended for mission-critical surveillance that demands 24-hour monitoring of restricted areas, such as airports (1). In difficult lighting conditions (2), the thermal camera can detect objects (3) that the visual camera cannot. This allows you to set up an event, using motion detection on the thermal camera, to zoom in and record with the visual camera.
  • Page 4: Product Overview

    AXIS Q87 Bispectral PTZ Network Camera Series Product overview Product overview Weathershield Top cover Wiper Front with protective foil Inner cover Thermal lens Visual lens Positioning unit 10 Base unit 11 Base unit screws...
  • Page 5 AXIS Q87 Bispectral PTZ Network Camera Series Product overview SD card slot (microSDHC UHS-I/microSDXC UHS-I) (card included) Fan connector Status LED Factory default switch Input power connector I/O connector RJ45 connector SFP slot for SFP module (SFP module not included)
  • Page 6 AXIS Q87 Bispectral PTZ Network Camera Series Product overview Note The illuminator kit is included for: AXIS Q8741-LE Bispectral PTZ Network Camera AXIS Q8742-LE Bispectral PTZ Network Camera...
  • Page 7: How To Access The Product

    HTTPS connection and then change the password. The device password is the primary protection for the data and services. Axis devices do not impose a password policy as they may be used in various types of installations. To protect your data we recommend that you: •...
  • Page 8: Setup

    In difficult lighting conditions the thermal camera can detect objects that the visual camera cannot. This example shows how to set up an event, using AXIS Video Motion Detection on the thermal camera, to zoom in and record with the visual camera.
  • Page 9: How To Set Up The Camera For Daily Cleaning Of The Visual Window

    AXIS Q87 Bispectral PTZ Network Camera Series Setup Both channels share the same preset configurations. 5. Create the home position that includes the area of interest. 6. Create the zoomed-in preset position (call it for instance “gate position”) so that it covers the area in the image where you predict that the moving object will appear.
  • Page 10: Image Quality

    AXIS Q87 Bispectral PTZ Network Camera Series Setup 1. Point the camera at the nozzle making sure that the nozzle is located in the center of the image. 2. Go to Settings > System > Accessories. 3. Turn on the Nozzle position.
  • Page 11 AXIS Q87 Bispectral PTZ Network Camera Series Setup Note Increasing the max shutter value can result in motion blur. • The shutter speed should be as slow as possible, which means you should set max shutter to the highest possible value.
  • Page 12: Ptz (Pan Tilt Zoom)

    Setup Note If you use WDR, you may experience some WDR artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr PTZ (Pan Tilt Zoom) How to limit pan, tilt, and zoom movements In this example, the camera is surveilling a parking lot with nearby apartment buildings. Set pan, tilt and zoom limits to ensure privacy for residents.
  • Page 13: About Applications

    6. Click Connect. About applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com...
  • Page 14 AXIS Q87 Bispectral PTZ Network Camera Series Setup 1. Disconnect power from the product. 2. Unscrew the four top cover screws and remove the top cover. 3. Insert an SD card into the SD card slot, see Connectors on page 19.
  • Page 15: Troubleshooting

    Reset to factory default should be used with caution. A reset to factory default will reset all settings, including the IP address, to the factory default values. Note The installation and management software tools are available from the support pages on www.axis.com/support/downloads 1. Disconnect power from the product. 2. Loosen the four top cover screws and remove the top cover.
  • Page 16: How To Check The Current Firmware

    To find the latest firmware and the release notes, go to axis.com/support/firmware 1. Download the latest firmware file to your computer, available free of charge at axis.com/support/firmware 2. Log in to the product as an administrator.
  • Page 17: Performance Considerations

    Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the...
  • Page 18 • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. • Running multiple AXIS Camera Application Platform (ACAP) applications on the Visual and Thermal channels simultaneously...
  • Page 19: Specifications

    AXIS Q87 Bispectral PTZ Network Camera Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page on axis.com and locate Support & Documentation. SD card slot NOTICE TICE TICE • Risk of damage to SD card. Do not use sharp tools, metal objects or excessive force when inserting or removing the SD card.
  • Page 20 AXIS Q87 Bispectral PTZ Network Camera Series Specifications Configurable I/O Configurable I/O Power connector 4-pin terminal block for power input. 24 V AC/DC power connector NOTICE TICE TICE This section is valid for products powered by 24 V AC and 24 V DC only.
  • Page 21 AXIS Q87 Bispectral PTZ Network Camera Series Specifications Position Description Cable color (positioning unit) Cable color (illuminators) +24V IL Black Orange IL1 +VE Gray Purple IL1 -VE Blue Black Yellow +24V IL Orange Orange IL2 +VE White Purple IL2 -VE...
  • Page 22 User Manual Ver. M2.4 AXIS Q87 Bispectral PTZ Network Camera Series Date: March 2018 © Axis Communications AB, 2017 - 2018 Part No. T10103583...

This manual is also suitable for:

Q8741-eQ8741-leQ8742-eQ8742-le
