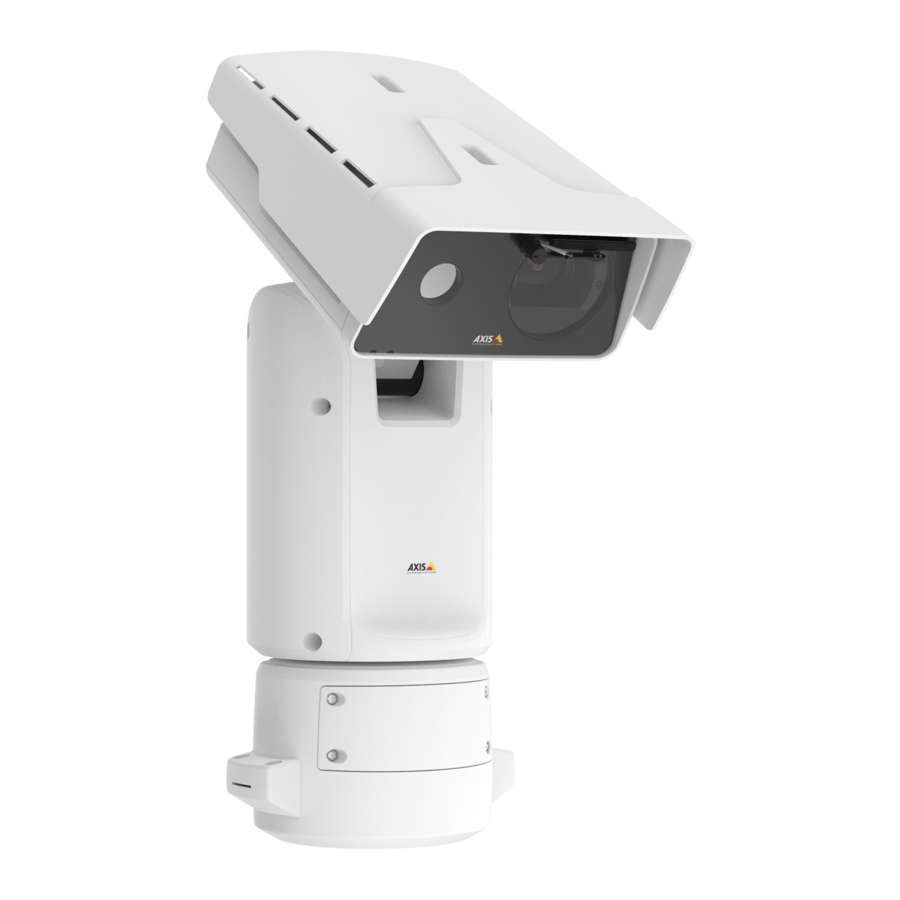

- Page 1 AXIS Q8752-E Bispectral Network Camera Repainting Instructions...
-
Page 2: Impact On Warranty
Risks with repainting There are several risks when disassembling or assembling an Axis product. There is always a certain yield loss during assembly. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment. - Page 3 Clean the parts properly to remove oil, grease and dust. For more information on the materials used in the product, see its datasheet at axis.com. Powder coated parts - Use a primer. Alternatively, remove the original powder coating down to the base material, using fine sandpaper, and clean the parts before painting.
- Page 4 AXIS Q8752-E Bispectral Network Camera Repaint the product Weathershield screw (2x) Weathershield 1. Remove the weathershield screws. 2. Remove the weathershield.
- Page 5 AXIS Q8752-E Bispectral Network Camera Repaint the product Masking Mask the following parts: • All visible screws, screw holes and ventilation holes • Shaft openings in the pan unit • Opening between the base unit and the pan unit •...
- Page 6 AXIS Q8752-E Bispectral Network Camera Repaint the product Repainting 1. Apply a thin and even layer of spray paint according to the instructions of the paint manufacturer, and let the paint dry. 2. If you wish to get a better coverage and clearer color, apply a second layer of spray paint.
- Page 7 Weathershield screw (2x) Weathershield 1. Return the weathershield to it’s position. 2. Put back and tighten the weathershield screws (torque 0.8 Nm). NOTICE TICE TICE For instructions on how to repaint illuminator brackets, see the product’s repainting instructions available at axis.com.
- Page 8 Repainting Instructions Ver. M1.4 AXIS Q8752-E Bispectral Network Camera Date: December 2020 © Axis Communications AB, 2020 Part No. T10145956...
