Sentiotec wave.com4 Touch Quick Manual page 9

wave.com4 infra

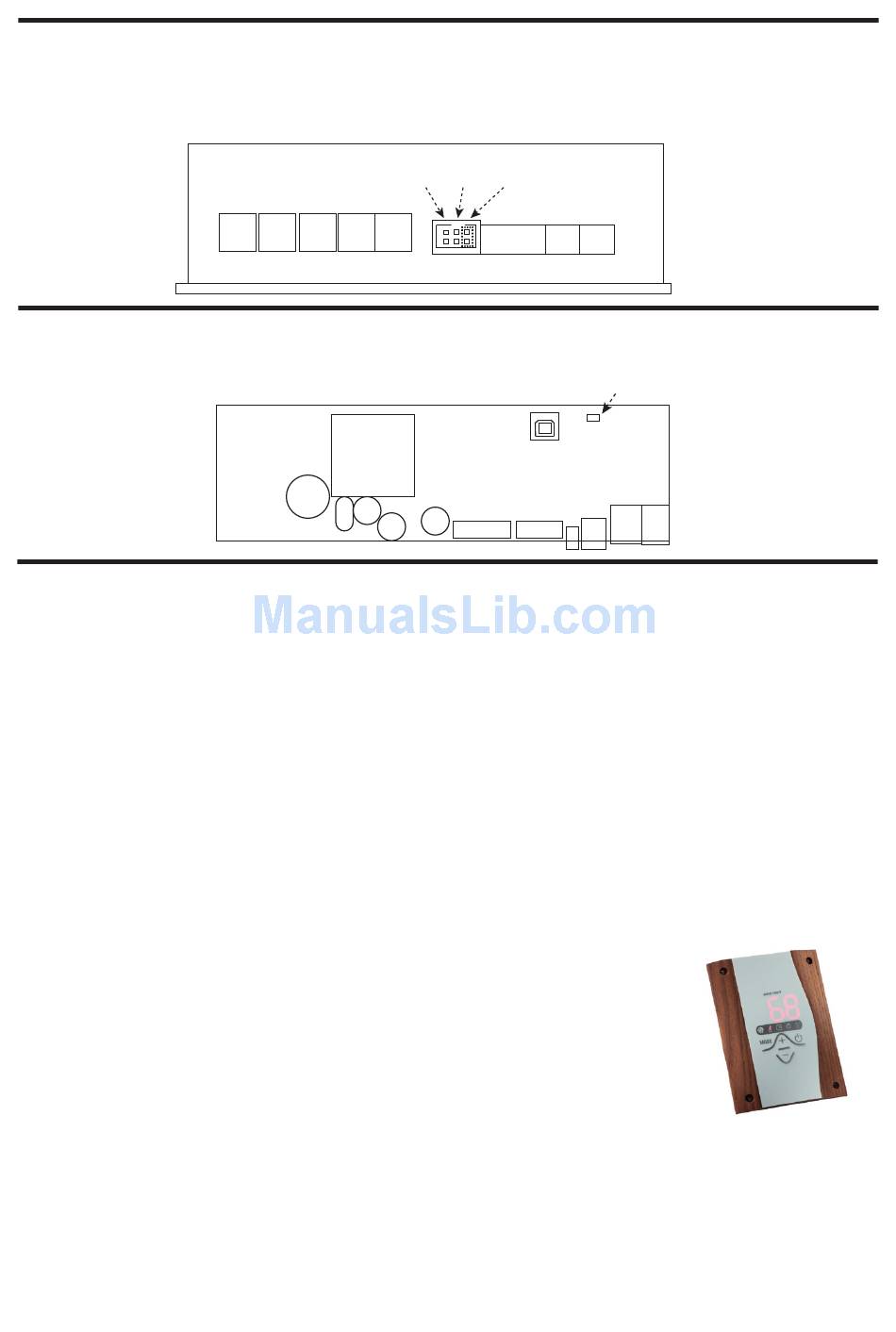

Attach the JP1
in the delivery scope of the touch operating unit.
wave.com4 sound&light
The JPSL
jumper wire is already fitted at the factory.
wave.com4 interior operating unit
If additional interior operating units are being used for sauna, infra and/or sound&light,
the following points must be observed:
● Interior operating units for sauna and infra can be connected to the system without any
special configuration. However, if several operating units are connected to one function
(sauna or infra), the BUS addresses of the units need to be adapted. The procedure
for this can be found in the respective manual.
● The interior operating unit for sound&light (2 interior operating units can be connected)
must first be configured for use with the touch unit. To do this, proceed as follows:
1. Unplug the data cable of the sound&light interior
operating unit.
2. Apply power to the sound&light power supply unit.
3. Press and hold down the + and - buttons on the sound&light
operating unit while you plug in the data cable.
4. SIN (for single mode) appears in the display.
5. Change to TC4 (using + or -) and press MODE to confirm.
6. 0 appears (bus address) in the display.
7. Press MODE again to confirm.
