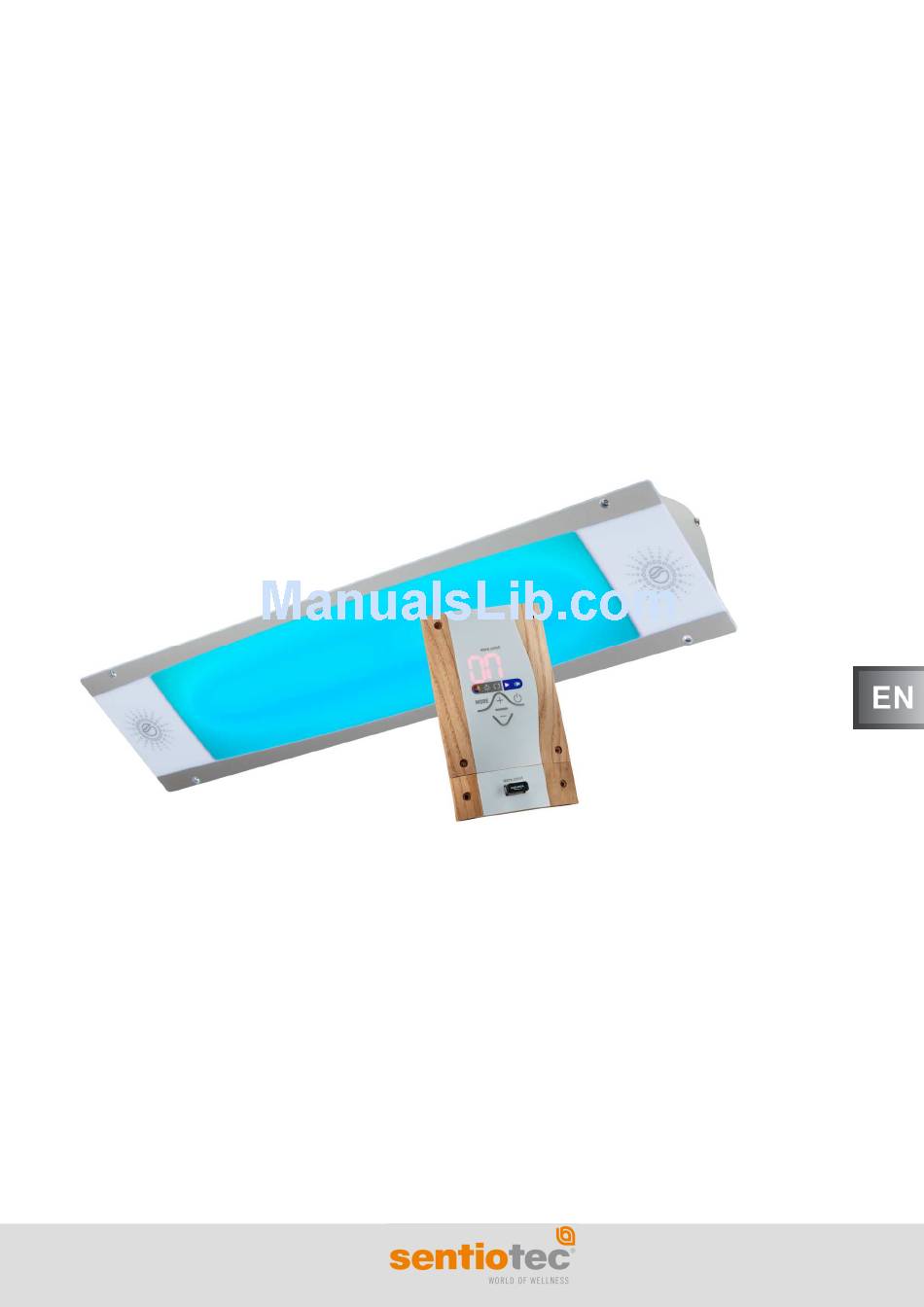

- Page 1 WAVE.COM4 SOUND&LIGHT OPERATING INSTRUCTIONS Consisting of: coloured lamp and operating element sound&light Edition 06/13 Item no. 50950031...
-
Page 3: Table Of Contents
PROGRAMMING COLOURS 4.3.2. MASTER / SLAVE PROGRAMMING 4.3.3. REMOTE START ACTIVATE/ DEACTIVATE 5.0.0 CONNECTION OF SEVERAL sound&light COLOURED LAMPS 6.0.0 CONNECTION TO THE wave.com4 SAUNA CONTROL 7.0.0 FAULTS, CAUSES, SOLUTIONS 8.0.0 TECHNICAL DATA 8.1.0 OPERATING ELEMENT 8.2.0 LED POWER ELEMENT 8.3.0... -
Page 4: Operating Instructions
OPERATING INSTRUCTIONS 24/44 CONTROLLED BY abatec group AG electronic solutions Oberregauer Straße 48 4844 Regau, Austria T: +43 (0) 7672-27720-0 F: +43 (0) 7672-27720-401 E-Mail: info@abatec-ag.com www.abatec-ag.com... -
Page 5: General
Welcome to the user manual for the innovative, high-tech coloured lamp sound&light. This user manual is designed to help you start up the LED coloured lamp and connect it to the appropriate parts of the sauna control ”wave.com4“. You can operate the coloured lamp in 2 connection modes. -
Page 6: Manufacturer's Declaration
2.0.0 MANUFACTURER’S DECLARATION sentiotec GmbH Oberregauer Straße 48 A-4844 Regau hereby declare in relation to the product below wave.com4 sound&light Coloured lamp set AB0210000001 consisting of: Coloured lamp AB0210000101 Colour operating element AB0211000101 Control element AB0212000101 that it complies with the following directives... -
Page 7: Fitting Instructions
Insert the colour operating element into the fitting hole and fasten to the sauna wall using the 4 screws supplied. The operating element can be fitted either outside or inside the sauna cabin. 3.2.0 FITTING THE CONTROL ELEMENT Wave.com4 Basismodul The power element is fitted preferably on the part of the cabin roof where the cables come together. -
Page 8: Fitting The Coloured Lamp
OPERATING INSTRUCTIONS 28/44 3.3.0 FITTING THE COLOURED LAMP Dimensions L x W x D = 780 x 185 x 75 mm light-emitting surface = 620 x 150 mm Recess size 765 x 158 x 75 mm ~2000 g without cable and loose Removing the transportation lock Remove transportation lock from the coloured lamp before using: Completely unscrew the two set screws on the back side of the housing counter clockwise... -
Page 9: Connection Diagram
OPERATING INSTRUCTIONS 29/44 3.4.0 CONNECTION DIAGRAM... -
Page 10: Operating Instructions For The End User
OPERATING INSTRUCTIONS 30/44 4.0.0 OPERATING INSTRUCTIONS FOR THE END USER 4.1.0 GENERAL SAFETY NOTICES Please be aware that the components in the housing of the coloured lamp are operated with dangerous mains voltage Do not connect or disconnect any live components! Always isolate the mains connection beforehand using the appropriate circuit breaker in the building’s distribution system. -
Page 11: Operation

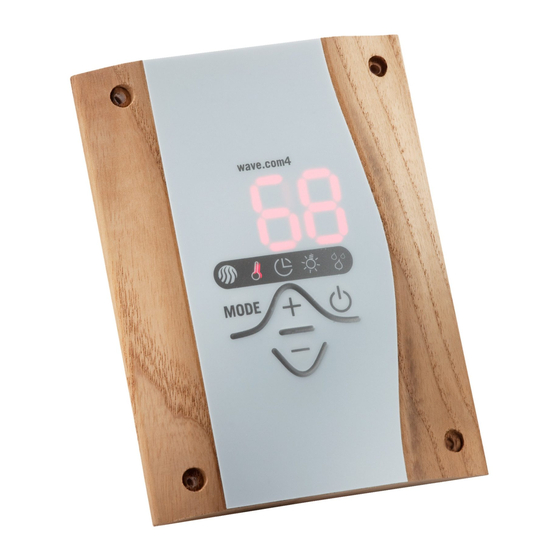

31/44 4.2.0 OPERATION 4.2.1. FUNCTION DESCRIPTION The following description gives an overview of the programme functions and operating elements of the coloured lamp wave.com4 sound&light. 4.2.2. OPERATING ELEMENTS SWITCH ONE-/OFF By pressing the key, the coloured lamp and the sound function are switched on or off. -
Page 12: Modes
OPERATING INSTRUCTIONS 32/44 4.2.4. MODES Display Symbols Description Mode Light The coloured lamp is in the standby mode. Automatic colour The chroma is automatically further switched after the programmed time. The chroma can be manually further switched. When colour 7 ends, the control again changes to colour 1 (=rollover). -
Page 13: Programming Functions
OPERATING INSTRUCTIONS 33/44 Volume With Mode key to volume menu. Volume can be set in stages with +/- keys (0- 20). 4.3.0 PROGRAMMING FUNCTIONS The following points provide information on the programmability of the LED coloured lamp. These settings are stored in a power failure-proof manner 4.3.1. -
Page 14: Programming Colour Transition Period
OPERATING INSTRUCTIONS 34/44 4.3.2 PROGRAMMING COLOUR TRANSITION PERIOD This is the time the LED control takes on change of colour (manual or at the end of the interval period), for the colour drift from the current to the next colour. 1. -
Page 15: Master / Slave Programming
4.3.2. MASTER / SLAVE PROGRAMMING Here you can set to decide whether the operating element is used in the Single/Master operation Selection „SIN“, (=standard setting,) without Wave.com4 sauna base section as master Setting for pure colourLEDcontrol without sauna function or in Slave operation Selection „SAU“, with sauna base section as Master... -
Page 16: Remote Start Activate/ Deactivate
4.3.3. REMOTE START ACTIVATE/ DEACTIVATE In the remote start mode, the coloured lamp switches after connection of the mains voltage to the last den activated operating mode. (no standby operation) The remote start function is activated as follows: 4. - Page 17 Connection diagram...
-
Page 18: Connection To The Wave.com4 Sauna Control
6.0.0 CONNECTION TO THE wave.com4 SAUNA CONTROL Connection diagram:... -
Page 19: Faults, Causes, Solutions
7.0.0 FAULTS, CAUSES, SOLUTIONS This list shows possible problems, their causes and recommended procedure for resolving them. Fault Possible cause The display of the colour module cannot Check power supply to the power element. If this is be activated in order but none of the symbols on the display lights, then check the data connection of the... -
Page 20: Technical Data
8.0.0 TECHNICAL DATA 8.1.0 OPERATING ELEMENT Connection: 4-pin with supply and communication lines (3m) Power consumption: 5V= / <100 mA normal operation (<0.5 W) Ambient conditions: 0° C – 130° C, max. 99 % rel. hum idity, non- condensing! Housing: Flush-mounted box;...
