Sentiotec wave.com4 Touch Quick Manual page 8

2. Connection
All the individual modules are connected via data cables; here there is a difference between
the 4-pin data cables (RJ10) and the 6-pin data cables (RJ12). The RJ12 cables are used
to connect the individual power supply units and the touch operating unit to one another
and the RJ10 cables are used for the interior operating units. The following wave.com4
modules are available and can be used with the touch operating unit:
● wave.com4 sauna
● wave.com4 infra
● wave.com4 sound&light

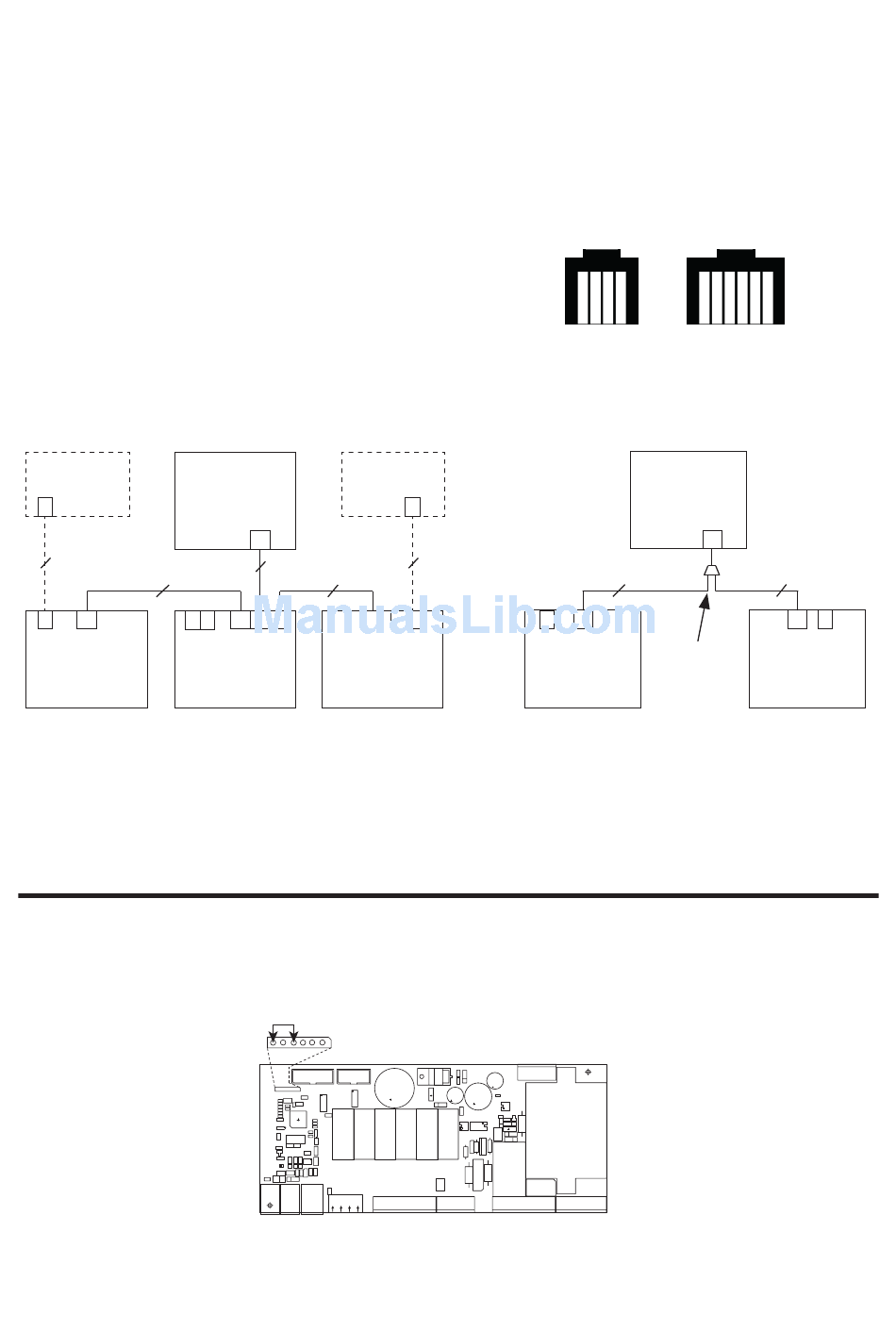

Connection example for complete con-
figuration with 2 interior operating units:
wave.com4 Touch
Innenbedienteil
sound&light
RJ10
RJ12
wave.com4
wave.com4 Infra
sound&light
Important: If just the wave.com4 sauna and wave.com4 sound&light are being used,
the WC4-SL-EXT extension cable set must be ordered.
Once all the components have been connected, the power supply units need to be pre-
pared for use with the touch unit.
wave.com4 sauna
Attach the JPBM jumper wire to the sauna power supply unit. This jumper wire is included
in the delivery scope of the touch operating unit.
WORLD OF WELLNESS
Innenbedienteil
Sauna
RJ12
RJ12
RJ12
wave.com4
Sauna
JPBM
RJ10
Connection example without wave.com4 infra:
RJ10
wave.com4
sound&light
RJ12
wave.com4 Touch
RJ12 RJ12
WC4-SL-EXT
wave.com4
Sauna
