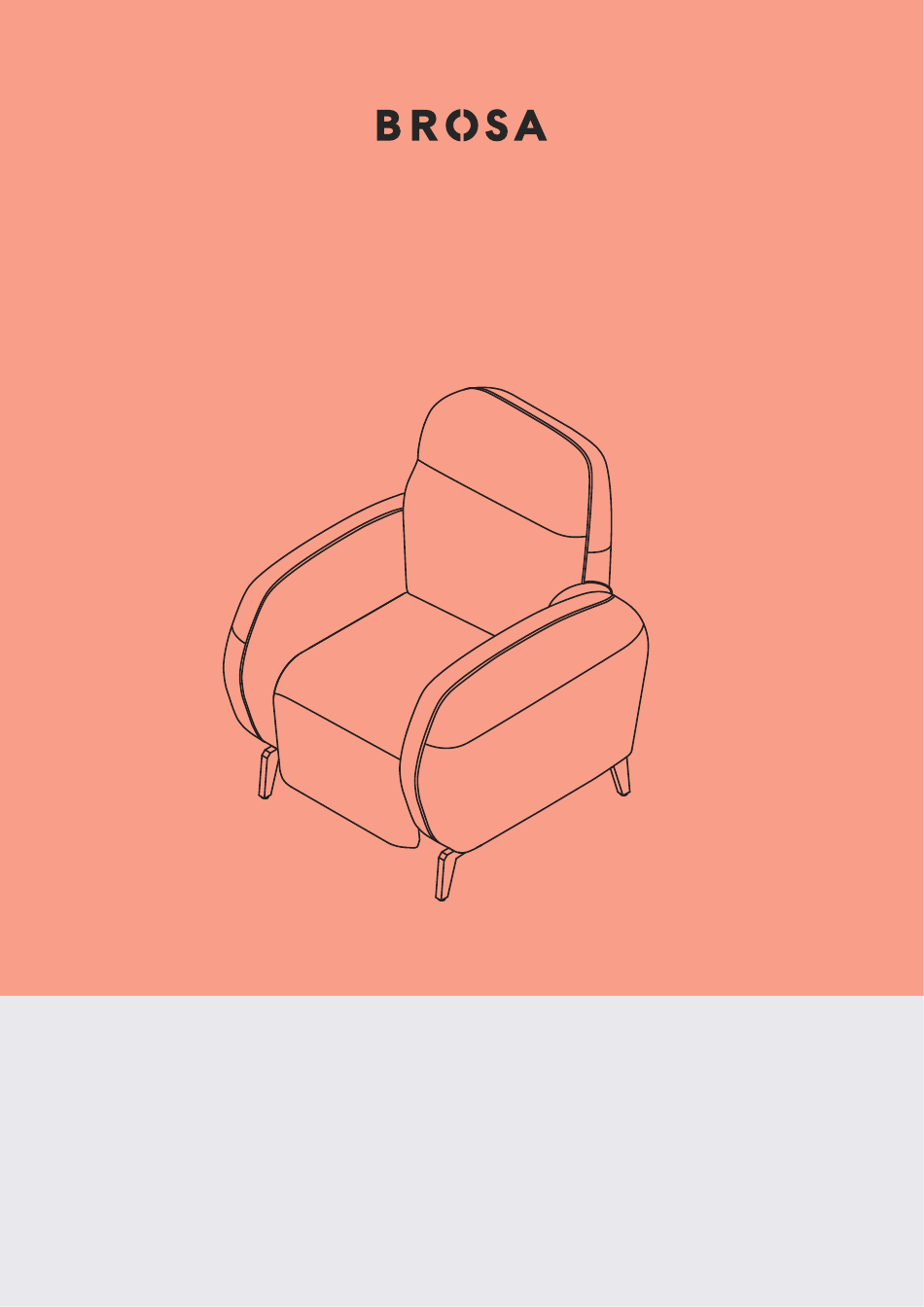

- Page 1 Calypso Electric Recliner A S S E M B LY G U I D E...
- Page 2 F O R Y O U R S A F E T Y Lift, don’t drag. This protects Check the assembly guide your floor and product. for required components. Assembly requires 2 people. Assembling this product on It's always easier with a a soft surface protects its friend.
- Page 3 Safety 1. Read and follow all the instructions and warnings in this guide carefully before attempting to operate the recliner for the first time. Failure to follow the guide may result in injuries, product damage and will void your warranty. 2.
- Page 4 Components Before you get started, check you have all of the pieces below. If anything’s missing, we’ll sort it out right away. Simply visit: www.brosa.com.au/pages/product-return-and-parts-request ① Chair Base x 1 ② Backrest x 1 ③ Leg x 4 ④ ⑤...
- Page 5 Step 1 Open the box from the bottom. Follow the red string to locate the box of the power supply, cords, legs and hardware. Use a pair of scissors to release them from the nylon strips. ③ x 16 ④ ⑤...
- Page 6 Step 2 ③ Align a leg with the holes on the bottom of the chair base. Insert the bolts into the holes to fix the leg in place. Tighten the bolts with the Allen key ③...
- Page 7 Step 3 ① Flip the chair base the right way up. Remove the protectors from the metal arms at the back of the chair base. ①...
- Page 8 Step 4 ② With assistance of a friend, hold up the backrest and stand at the back of the chair base. Carefully align the sleeves on the inner sides of the backrest with the metal arms. Push the backrest downwards firmly until it is fully slotted and locked into position.
- Page 9 Step 5 Smooth down the fabric flap on the back of the backrest. Run your fingers along the bottom edge of the chair to allow the Velcro tape to adhere.
- Page 10 Step 6 Locate the male plug at the back of the chair. ⑤ Grab the extension cord and pick the female plug with the cap. Flip up the cap and connect the plug to the male plug firmly. Flip down the cap and hook it to the knobs on the male plug.
- Page 11 Step 7 ④ Grab the power supply and connect it to the extension cord. ④...
- Page 12 Step 8 ⑥ Finally grab the power cord and insert the female plug of it into the socket of the power supply. ⑥...
- Page 13 Step 9 Plug the power cord into the power outlet of your house.
- Page 14 Step 10 Follow the Control Button Operation in the next pages to recline the chair thoroughly. Attach the fabric flap at the front of the backrest to the Velcro at the back of the seat.
- Page 15 Step 11 Follow the Control Button Operation in the next pages to close your chair. Your recliner is ready to use!
-
Page 16: Control Button Operation
Control Button Operation Locate the control buttons hidden in the slit on the right hand side when sitting on it. - Page 17 Press the front button to Press the back button to recline your chair. restore your chair. Release the button once Release the button once reaching your desired reaching your desired position. position.
- Page 18 Warning MAX. 150 KG The maximum weight capacity Keep your hands and feet is 150kg. Staying within the clear of the mechanism and weight limit keeps you safe. gaps. DO NOT sit on the footrest. DO NOT sit on the armrests.
- Page 19 DO NOT push the backrest. DO NOT allow children to play Always use the controls to on the recliner. adjust its position. Ensure children or pets are not DO NOT allow children or pets in the way when operating the to crawl underneath the recliner.
-
Page 20: Care And Maintenance
Care and Maintenance We hope you enjoy your new piece of Brosa furniture. Correct maintenance will increase its durability and keep it looking beautiful for longer. Follow these tips as a guide. 1. Furniture should be assembled according to our Assembly Guides. - Page 21 3. Wear and Tear Using furniture for a long time will result in slight material changes. Leather will develop character and markings, while some fabric folds may appear. 4. Pilling Through regular use, the surface of natural fibre fabric can twist and form tiny balls –...
