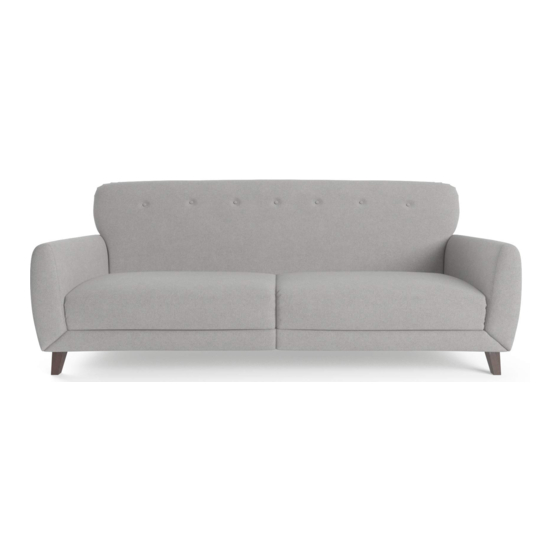

- Page 1 ASSEMBLY GUIDE Clem Sofa Bed...
- Page 2 Components Upon unpacking your sofa bed from it’s delivery box, you should have one single component (the body of the sofa bed). Additional components are packed inside the body, you will learn how to access and utilise these components in the next steps. Unpacking Follow the zip to the component compartment.
- Page 3 Hardware B x 14 C x 8 D x 4 E x 6 F x 4 G x 1 H x 1 You will need...
- Page 4 Step 1 Insert and tighten the threaded rods into the holes on armrests (2), (3). Turn the sofa bed body so that the underside is facing you. Fit armrests into corresponding holes on sides of the sofa bed body. A x 8 Fit a big washer and hex nut onto a rod...
- Page 5 Step 2 Align a decorative panel with the sofa bed front. Fit a large washer into a short bolt then screw it using the allen key (H). Repeat for the other two holes then repeat for the other decorative panel (5). Zip the bottom fabric back when all is done.
- Page 6 Orient the other two legs as below diagram indi- Step 4 cates. Fit small washers into long bolts then t the bolts into the legs. Screw the bolts with the allen key (H). D x 2 F x 2 H x 1...
- Page 7 Step 5 Unzip the back fabric and pull the support legs out. Slightly push the back forward and then put it down gently then you will get a bed position. Push the back upwards until it is steady and fold the support legs back into the back fabric then you will get a sofa position again.
