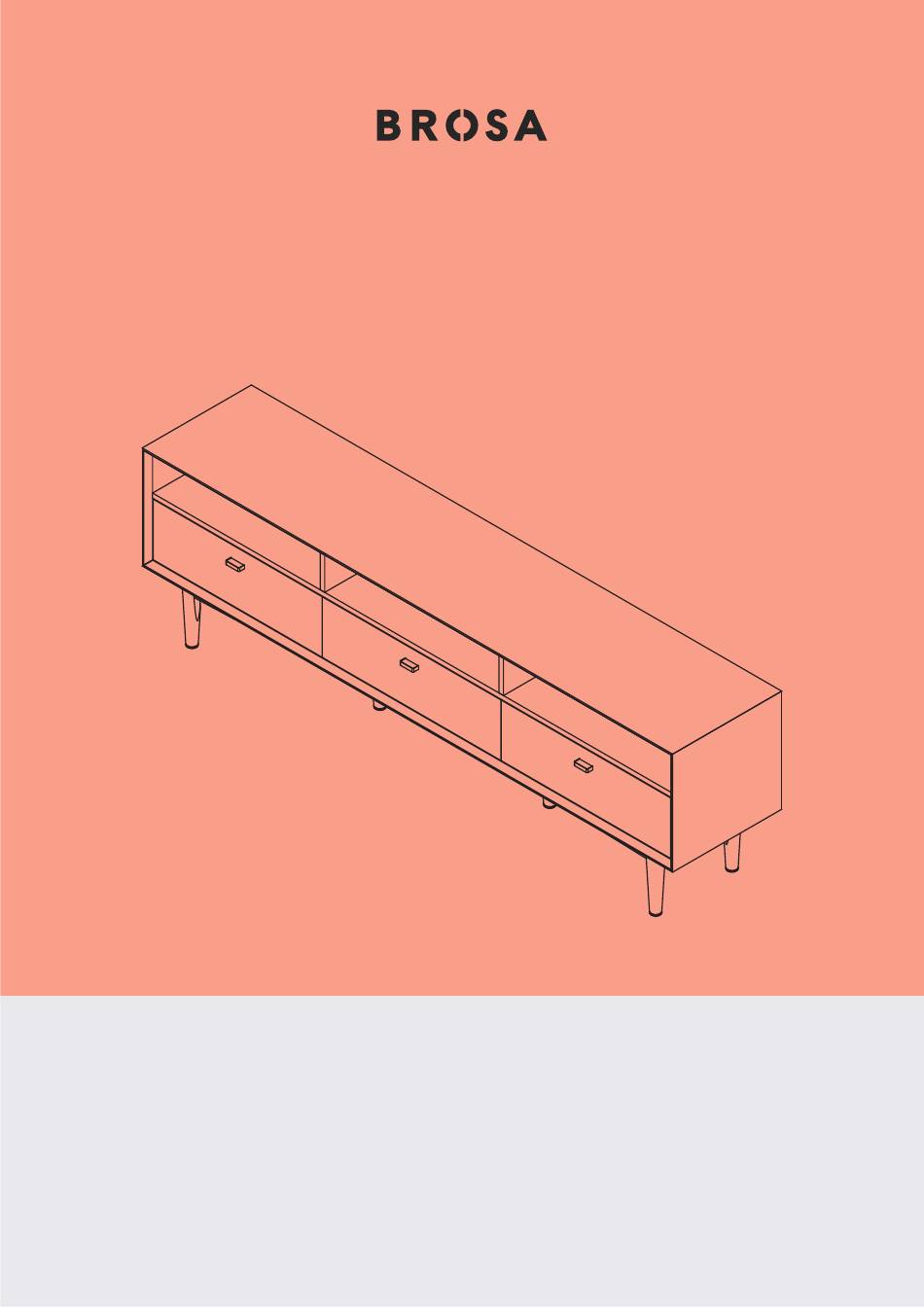

- Page 1 Olsen Entertainment Unit A S S E M B LY G U I D E...
- Page 2 F O R Y O U R S A F E T Y Lift, don’t drag. This protects Check the assembly guide your floor and product. for required components. Assembly requires 2 people. Assembling this product on It's always easier with a a soft surface protects its friend.
- Page 3 Components Before you get started, check you have all of the pieces below. If anything’s missing, we’ll sort it out right away. Simply visit: www.brosa.com.au/pages/product-return-and-parts-request ① Body x 1 ② Corner Leg x 4 ③ Middle Leg x 2 Hardware...
-
Page 4: What You Need
(Ø4 x 22) (20 x 20 x 6) What You Need Step 1 Insert a cross dowel into the hole on top of a corner leg ②. Make sure the side with a groove is facing you. Adjust the dowel with a flat-head screwdriver so that the threaded hole of the dowel is aligned with the hole in the front face of the leg. - Page 5 Step 2 Insert a rod into the front hole of a corner leg and make sure it grabs the threads of the cross dowel. Screw the rod until it is tight and secure. Repeat this for all corner legs.
- Page 6 Step 3 Lead the rod of a corner leg through the hole of the metal bracket. Fit a flat washer to the rod followed by a lock washer and a nut E. Tighten the nut with the spanner F. Repeat this for all corner legs.
- Page 7 Step 4 ③ Screw the middle legs onto the rods on the bottom of the body. ③...
- Page 8 Step 5 Attach foot stoppers to the bottom of the legs.
- Page 9 Step 6 Slide out the drawers. Attach the handles the drawer front panels with the bolts and a Phillips head screwdriver.
- Page 10 Step 7 Enjoy your new Olsen Entertainment Unit!
- Page 11 With that in mind, the following tips can help prolong the life of your Brosa veneer furniture to help them look beautiful for years to come. Assembly 1. Assemble furniture using our Assembly Guides. You can find them at support.brosa.com...
- Page 12 3. Do not use any abrasive cleaner or harsh detergent as this can damage the surface of the furniture. 4. Avoid using spray polishes as they contain silicones which may spoil the furniture’s surface. 5. Make sure all surfaces are protected from heat and liquids by mats and coasters.
