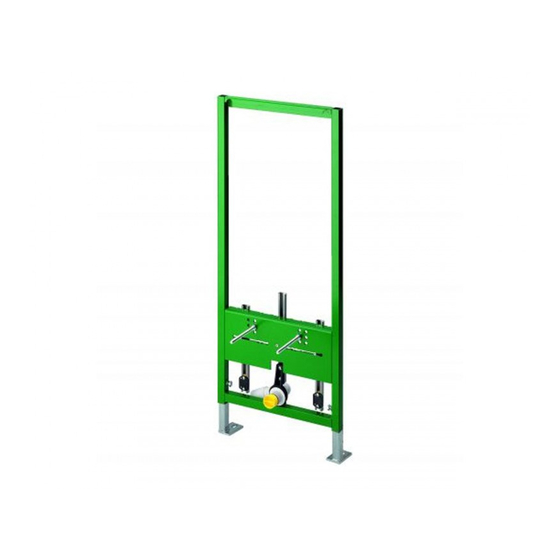

Viega Eco Plus bidet corner element
Instructions for Use
for wall-hung bidet
Model
8143
en_INT
Year built:
from 09/2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eco Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viega Eco Plus

Summary of Contents for Viega Eco Plus

  • Page 1 Viega Eco Plus bidet corner element Instructions for Use for wall-hung bidet Model Year built: 8143 from 09/2005 en_INT...
  • Page 2 Viega Eco Plus bidet corner element 2 from 23...

  • Page 3: Table Of Contents

    Intended use 2.2.1 Areas of use Product description 2.3.1 Overview 2.3.2 Sound protection Handling Assembly information 3.1.1 Mounting conditions 3.1.2 Installation dimensions 3.1.3 Required tools Assembly 3.2.1 Mounting bidet element Disposal Viega Eco Plus bidet corner element 3 from 23...

  • Page 4: About These Instructions For Use

    This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.

  • Page 5: About This Translated Version

    German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation. Viega Eco Plus bidet corner element 5 from 23...

  • Page 6: Product Information

    Intended use 2.2.1 Areas of use The Viega Eco Plus bidet corner element is suitable for mounting on masonry wall constructions and support profiles pursuant to the regula- Ä „Regulations from section: Fields of application / tions in section Mounting conditions“...

  • Page 7: Product Description

    Product description 2.3.1 Overview Fig. 1: Components 1 - Viega Eco Plus corner element 2 - threaded rods for fixing sanitary objects (gauges for bore hole 180 mm and 230 mm) 3 - mounting bracket for drain elbow 4 - drain elbow...

  • Page 8: Handling

    3.1.1 Mounting conditions Suitable walls The Viega bidet element is suitable for mounting on masonry wall con- structions and support profiles pursuant to the regulations in section Ä „Regulations from section: Fields of application / Mounting condi- tions“ on page 6 .

  • Page 9: Installation Dimensions

    Installation dimensions Fig. 2: Dimensions 3.1.3 Required tools The following tools are required for mounting the bidet element: drill with 10 mm drill bit ratchet with sockets: 13 mm / 17 mm Viega Eco Plus bidet corner element 9 from 23...

  • Page 10: Assembly

    Assembly 3.2.1 Mounting bidet element Mounting in a corner (approx. 90°) Position the element at construction height. The element can be adjusted continuously from 980–1130 mm. Align element. Mark drill holes. Viega Eco Plus bidet corner element 10 from 23...
  • Page 11 Handling Drill holes for the wall fixing and the floor supports. Hit dowel (10 mm) into the wall/floor. Viega Eco Plus bidet corner element 11 from 23...
  • Page 12 Handling Connect water line. Viega Eco Plus bidet corner element 12 from 23...
  • Page 13 Handling Screw the element into the wall and into the floor (size 13 / 17). Clad the element with a single layer of IFGP cladding panels (1 x 12.5 mm). Viega Eco Plus bidet corner element 13 from 23...
  • Page 14 Position the element at construction height. The element can be adjusted continuously from 980–1130 mm. Remove the floor support where the drainage line is. Align element. Mark drill holes (5 wall fixings and one floor support). Viega Eco Plus bidet corner element 14 from 23...
  • Page 15 Handling Drill holes for the wall fixing and the floor support. Hit dowel (10 mm) into the wall/floor. Viega Eco Plus bidet corner element 15 from 23...
  • Page 16 Handling Connect water line. Viega Eco Plus bidet corner element 16 from 23...
  • Page 17 Handling Screw the element into the wall and into the floor (size 13 / 17). Clad the element with a single layer of IFGP cladding panels (1 x 12.5 mm). Viega Eco Plus bidet corner element 17 from 23...
  • Page 18 Mounting on the wall (one-sided fixing) Position the element at construction height. The element can be adjusted continuously from 980–1130 mm. Align element. Mark drill holes (4 wall fixings and two floor supports). Viega Eco Plus bidet corner element 18 from 23...
  • Page 19 Handling Drill holes for the wall fixing and the floor support. Hit dowel (10 mm) into the wall and the floor. Viega Eco Plus bidet corner element 19 from 23...
  • Page 20 Handling Connect water line. Viega Eco Plus bidet corner element 20 from 23...
  • Page 21 Handling Screw the element into the wall and into the floor (size 13). Clad the element with a single layer of IFGP cladding panels (1 x 12.5 mm). Viega Eco Plus bidet corner element 21 from 23...
  • Page 22 Connect water line. Screw elements into the wall, into the floor and together (size 13). Clad the corner elements with a single layer of IFGP cladding panels (1 x 12.5 mm). Viega Eco Plus bidet corner element 22 from 23...

  • Page 23: Disposal

    Clad the element with a single layer of IFGP cladding panels (1 x 12.5 mm). Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Viega Eco Plus bidet corner element 23 from 23...
